Description

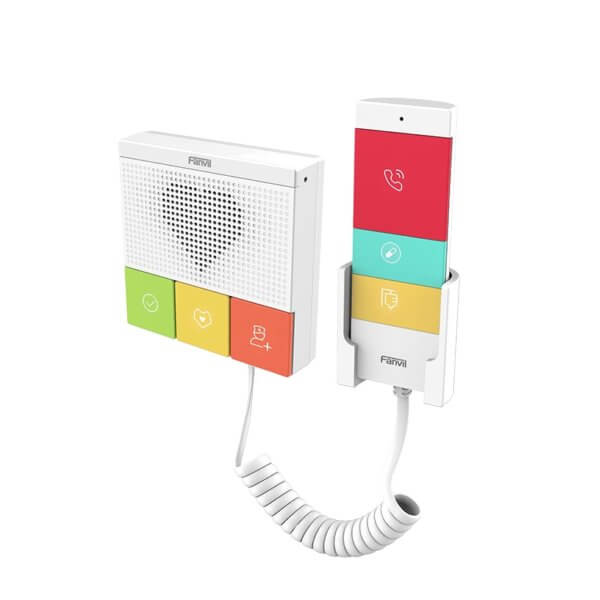

Fanvil Y501W-YE SIP Intercom Dubai

The Fanvil Y501W-YE Dubai SIP healthcare intercoms epitomize top-tier home-based care solutions, addressing the distinctive requirements of nursing homes, residences, and indoor settings with unmatched functionality. Engineered for seamless emergency communication, robust security, and versatile broadcasting capabilities, these intercoms redefine healthcare communication standards.

Central to their design is a commitment to excellence, featuring crystal-clear HD audio, 2 SIP accounts flexibility, and detachable DSS keys for convenience. With an IP54 waterproof and dustproof rating, they ensure reliable operation even in harsh environmental conditions, ensuring functionality when needed most. Notably, the Y501W-Y/Y501W-YE variants include built-in 2.4G and 5G Wi-Fi capabilities, offering seamless connectivity options for enhanced communication and accessibility. Whether coordinating care efforts, sharing critical information, or managing emergencies, these intercoms are poised to meet modern healthcare demands.

The Fanvil Y501W-YE Dubai provides unmatched installation versatility, supporting standard 86 box embedding and wall-mount configurations. This adaptability allows healthcare facilities and residences to seamlessly integrate these intercoms into existing infrastructure, delivering timely and efficient healthcare communication experiences for patients and caregivers alike. A fusion of cutting-edge technology and purpose-driven design, the Fanvil Y501W-YE Dubai SIP healthcare intercoms set new benchmarks for excellence in home-based care communication solutions.

Highlights

• Support audio codec G.722 and Opus.
• Support specific 433MHz wireless button
• Features 2 SIP accounts and 6 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-YE)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-YE)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-YE)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W-Y/Y501W-YE)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501-Y Series : 6 DSS buttons (Finish, Nursing, Assistant, Call,Dressing change, Infusion)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501-Y/Y501-Y-E)
  • 1.42W~2.35W(Y501W-Y/Y501W-YE)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501-Y/Y501-Y-E)
  • 1.99W~3.05W(Y501W-Y/Y501W-YE)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT：3.97kg
• G.W/CNT：4.4 kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 234x168x44 mm
• Outer CTN Dimension : 356x245x254mm (10pcs)
