Hanwha QNO6012R

Rating

Hanwha QNO6012R

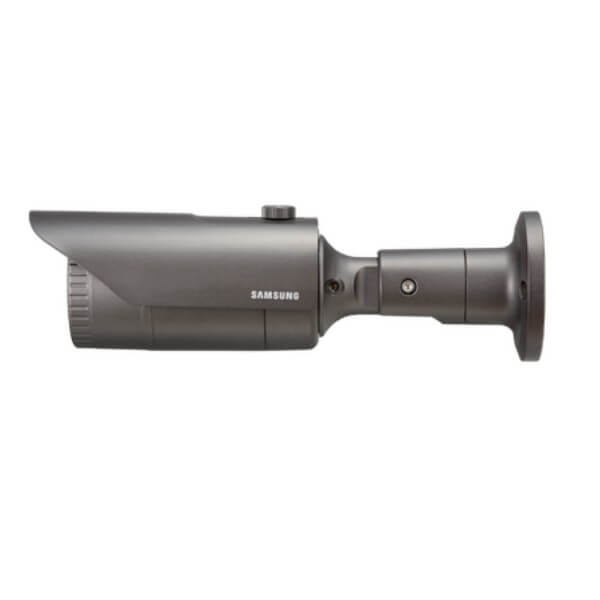

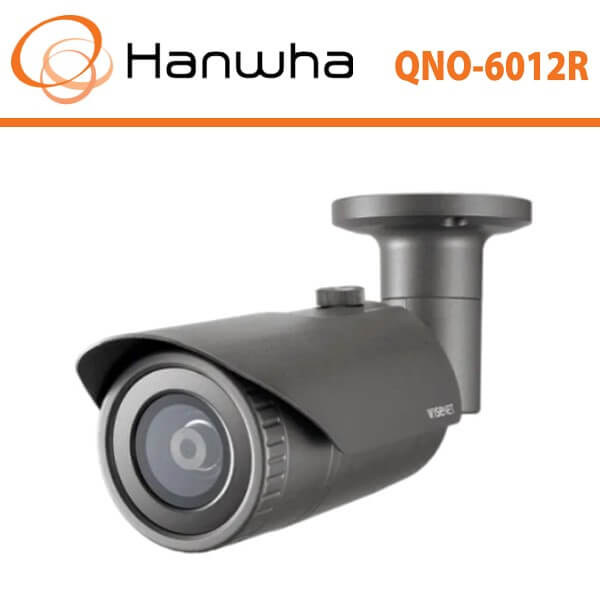

The Hanwha QNO6012R Bullet Camera offers an advanced solution for high-quality video surveillance, providing exceptional clarity and reliability across a range of environments.

Description

Hanwha QNO6012R

The Hanwha QNO6012R Bullet Camera offers an advanced solution for high-quality video surveillance, providing exceptional clarity and reliability across a range of environments. Designed with both performance and durability in mind, this camera meets the security demands of modern-day installations with a combination of intelligent features and robust construction.

Superior Night Vision and Performance Equipped with integrated infrared LEDs, the QNO6012R delivers crystal-clear night-time surveillance up to 20 meters. Its adaptive auto-switching between day and night modes ensures that surveillance quality remains consistent across varying lighting conditions. The camera also boasts Wide Dynamic Range (WDR) technology with a remarkable 120dB, enabling detailed and balanced imagery even in challenging environments with extreme lighting contrasts.

Built for Durability The QNO6012R is engineered to withstand even the harshest environments. With an IP66 weather resistance rating and IK10 vandal-proof certification, it is perfectly suited for outdoor installations and high-risk areas. Whether it’s a commercial site, public space, educational institution, or residential property, this camera offers robust protection against both environmental factors and vandalism.

Advanced Video Analytics for Proactive Security This camera is equipped with intelligent video analytics, such as motion detection, tampering alarms, and virtual line detection. These features enable proactive security management by providing immediate alerts and responses to any suspicious activity. Additionally, the camera supports advanced video compression formats, including H.265, H.264, and MJPEG, significantly reducing storage requirements and optimizing the overall performance of your surveillance infrastructure.

Enhanced Imaging Capabilities The QNO6012R’s 120dB Wide Dynamic Range (WDR) ensures that the camera can capture high-contrast scenes with exceptional clarity. This makes it ideal for monitoring entrances, loading docks, and windows, where there may be both bright and dark areas within a single frame. The enhanced imaging ensures the video is sharp and accurate, regardless of the surrounding lighting.

Effortless Installation and Management Designed with user convenience in mind, the Hanwha QNO6012R offers an easy installation and configuration process. Its compact bullet-style design provides flexibility in placement, making it suitable for various installation environments and mounting options.

Versatile Applications The Hanwha QNO6012R is ideal for a wide range of applications, providing reliable and efficient surveillance for different settings:

  • Commercial Retail and Office Spaces: Protect entrances, lobbies, and key areas to prevent unauthorized access.
  • Educational Institutions: Enhance campus security and safeguard student safety.
  • Public and Government Facilities: Secure high-traffic locations and sensitive areas from potential threats.
  • Residential Complexes: Monitor shared spaces such as parking areas and common zones for added security.

The Hanwha QNO6012R Bullet Camera is a versatile and resilient solution that excels in providing high-quality surveillance in a variety of settings. With its advanced imaging technologies, intelligent video analytics, and robust build, it is a top choice for businesses, institutions, and residential properties looking to enhance their security systems.

SPECIFICATION

Video
Imaging Device 1/2.8″ 2MP CMOS
Resolution 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 113.7 / V: 61.5° / D: 134.5°
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
IR Viewable Length 20m(65.62ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 7.00W, typical 5.20W 12VDC: Max 6.10W, typical 4.50W
Mechanical
Color / Material Dark grey / Aluminum
Product Dimensions / Weight Ø70.0×246.0mm(Ø2.76×9.69″), 700g(1.54 Ib)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 25.1m(82.21ft)
Observe (63PPM/ 19PPF) 10.0m(32.89ft)
Recognize (125PPM/ 38PPF) 5.0m(16.44ft)
Identify (250PPM/ 76PPF) 2.5m(8.22ft)
