Yealink EXP43 Dubai

Rating

Yealink EXP43 Dubai

The Yealink EXP43 Dubai for Yealink T43U/T46U/T48U IP phones is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience.

Category:

Description

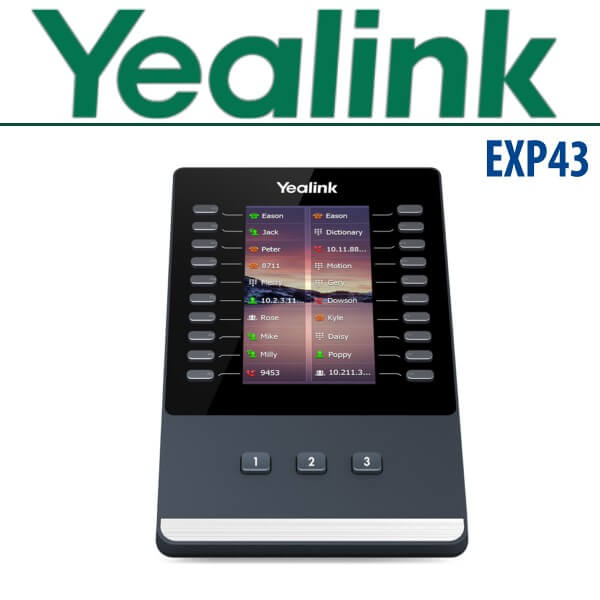

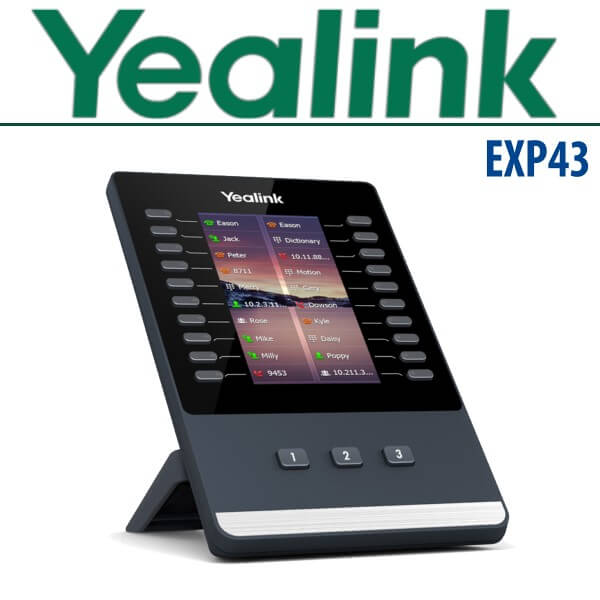

Yealink EXP43 LCD Expansion Module Dubai

The Yealink EXP43 Dubai brings a rich color screen expansion module to the Yealink T4U series phones. The Yealink EXP43 is compatible with the Yealink T43U, T46U and T48U phones and will adapt to match the display of the IP Phone it has been connected to, monochrome for T43U and color for the T46U and T48U. The dedicated page view keys allow you to easily navigate through the list of BLF keys, with up to 60 keys available. By daisy-chaining up to three EXP43 expansion modules (two require external power), the number of BLF keys can be expanded up to 180, making this the ideal accessory to turn your Yealink T4U series phone into a reception or switchboard phone

The Yealink EXP43 Dubai connects to the compatible Yealink phone via an RJ-12 cable and can be powered by the phone for up to (2) EXP40 units. For powering 3-6 units, a power adapter (AC 100~240V input and DC 5V/1.2A output) will be required.

Features

User-friendly Structure Design

With a 4.3-inch color screen, the Yealink EXP43 Dubai expansion module is intended to bring a fresh visual experience and an easy operating experience to you. Its new design for the Stand enables you to adjust between two lying angles easily even without disassembling it. To ensure higher reliability of data transmission and a higher speed of data refresh, a USB cable is chosen to connect the EXP43 expansion module to Yealink T43U/T46U/T48U IP phones. Moreover, after the connection between the expansion module and the IP phone is established, the remaining USB port on the back of EXP43 can also be used to realize the phone’s extended functions, for example, call recording via USB flash drive, etc.

Intuitive Visualization

A 4.3-inch 272×480-pixel color screen greatly enriches your visual experience. The color icons for DSS keys, the feature of Wallpaper and Screensaver, all of offering you a new operating experience as well as allow you to custom the Yealink EXP43 Dubai in your own style. More than that, its 3 independent control buttons with illuminated LED are used for fast switching to the corresponding page.

High Expansibility

The Yealink T43U/T46U/T48U IP phones can be fully equipped with up to three Yealink EXP43 Dubai Color Expansion Modules, while adding 180 additional buttons at most. Three pages of 20 flexible buttons with dual-color LED shown on the display can be programmed up to 60 various features for speed dialing, BLF/BLA, call forward, transfer, etc. Thus, it will help you effectively manage high volume of concurrent calls, effortlessly monitor calls and greatly boost personal productivity.

Specifications

Display

  • 4.3″ 272×480-pixel color display with backlight
  • 16-bit depth color
  • Three page views are possible
  • Different color icons for each function shown on the LCD

Features Keys and Indicator

  • 20 physical keys each with a dual-color LED
  • 40 additional keys through page switch
  • 3 independent control keys with illuminated LED are used for fast switching pages
  • Programmable for shared line, BLF List, call park, the conference, forward, group pickup, group listening, LDAP, XML Browser…

Features

  • Wallpaper, screensaver, power saving
  • Stand with 2 adjustable angles
  • For support of two or three Expansion Modules, an external Yealink power adapter (5V/2A) is required.
  • Up to three EXP43 can be attached on Yealink T43U/T46U/T48U IP phones
  • USB port (2.0 compliant) for data in and out
  • USB port (2.0 compliant) for :
    – wired/wireless USB headset
    – Wi-Fi through WF40/WF50
    – USB call recording through USB flash drive
  • Max power consumption (PSU) : 1.5W
  • Dimension (W*D*H*T) : 196.5mm*124.0mm*137.5mm*42.6mm
  • Applies to Yealink T43U/T46U/T48U
  • Operating temperature : 0~40°C (+32~104°F)
