Meraki MS225-24 Dubai

Rating

Meraki MS225-24 Dubai

The Meraki MS225-24 Dubai provides layer 2 access switching and is ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks, performance is guaranteed.

Add to quote

Description

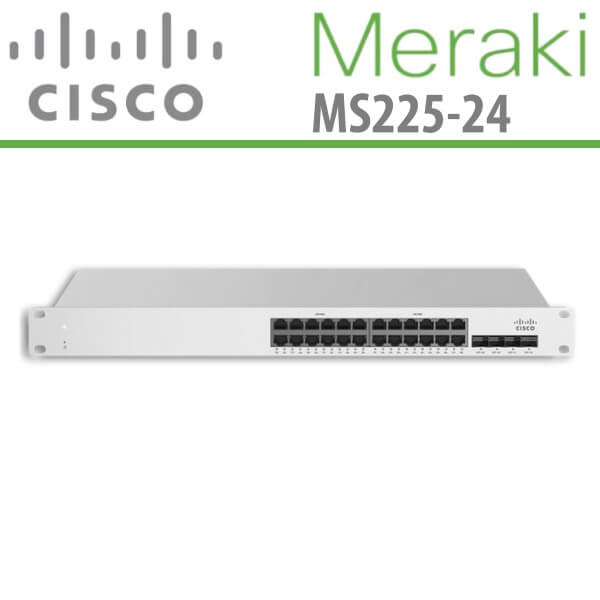

Meraki MS225-24 Network Switch Dubai

The Meraki MS225-24 Dubai is a 24-port cloud-managed stackable L2 enterprise-class access switch with four SFP+ uplinks and support for Cisco’s Redundant Power System (RPS) for mission critical environments. The MS225 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The Meraki MS225-24 Dubai is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.

The Meraki MS225-24 Dubai provides layer 2 access switching and is ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks, performance is guaranteed. This model also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements.

Product Highlights

24 x gigabit ethernet interfaces
4 x 10G SFP+ uplink interfaces
Built-in dual stacking interfaces with up to 80G bandwidth (stacking cables sold separately)
Non-blocking switch backplane with 128 Gbps of switching capacity
6 dedicated QoS queues for converged voice, video, and data applications
Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
Integrated mounting brackets for rack and desk mounting

Technical Specifications :

	MS225-24	MS225-24P
Interface	24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of 30W per port for PoE+) 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink 2 × Stacking interfaces Auto negotiation and crossover detection
Management	Managed via the cloud using the Meraki dashboard Integrated with Meraki Wireless and complete portfolio of IT products and solutions No-touch remote deployment (no staging needed) Detailed historical per-port and per-client usage statistics DHCP, client, and hostname fingerprinting SNMP and SYSLOG support for integration with other network management solutions Seamless over-the-web firmware upgrades with scheduling & control
Remote diagnostics	Email, SMS and Mobile push notification alerts Cable testing and link failure detection with alerting Live remote packet capture Dynamic and interactive network discovery and topology Aggregated event logs with instant search
Flexible stacking	Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities	802.1p Quality of Service prioritization 802.1Q VLAN tagging with 4,095 addressable tags 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches IGMP snooping for multicast filtering MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
Security	Integrated two-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control Corporate wide password policy enforcement IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing MAC-based RADIUS authentication (MAB) Port security : Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking STP Enhancements : BPDU guard, Root guard IPv4 ACLs
Power over Ethernet	802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port Maximum PoE output (24P) : 370 W PoE available on all ports simultaneously
Performance	Non-blocking switching fabric Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models) Forwarding rate (mpps) : 95.24 (24-port models), 127.98 (48-port models) Jumbo frame support (9600 byte Ethernet frame) Flow control support
Layer 3	Static Routing (maximum of 16 static routes supported) DHCP Relay
Power	Power input : 100 – 240 VAC, 47-63 Hz Power consumption : 15 – 448 W RPS interface : Requires RPS-2300 chassis
Mounting	1U Rack-mountable with included rack mount hardware 2-post front mounting options available Desktop-mountable with included feet
Environment	Operating temperature : 32°F to 104°F (0°C to 40°C) Humidity : 5 to 95% non-condensing MS225-24, MS225-48 feature fanless operation
Regulatory	CSA-US (US, Canada) FCC (USA) IC (Canada) CE (Europe) RCM (Australia/New Zealand) RoHS
Warranty	Full lifetime hardware warranty with next-day advanced replacement included
MTBF at 25°C	590,165	391,648
Physical dimensions (H×W×D)	1.72 x 19.08 x 9.84”(4.38 x 48.46 x 25cm)	1.72 x 19.08 x 9.84”(4.38 x 48.46 x 25cm)
Physical Weight	6.03 lb (2.73 kg)	8.18 lb (3.71 kg)
