Description

Ruijie RG-AP820LV2 Access Point Dubai

Ruijie RG-AP820LV2 Accesspoint Dubai is the Ruijie’s highest price-performance entry Wi-Fi 6 enterprise indoor access point. Certified by Tolly’s latest Test Report, the Ruijie RG-AP820LV2 Accesspoint Dubai verified on user capacity upto 1024 Wi-Fi clients, and provide up to 65% higher total throughput in legacy Wi-Fi 5 environment. Featuring a stylish design, Ruijie RG-AP820LV2 Accesspoint Dubai comes with slim form factor design, only 26mm in height with hidden LAN cabling design. The Ruijie RG-AP820LV2 Accesspoint Dubai supports selectable dual-band dual-radio (2.4G + 5G or 5G+5G) mode to guarantee for the best compatibility and highest performance. Maximum of 2.4Gbps wireless throughput when dual 5G radio high-performance mode adopted, and upto 1.775Gbps throughput at normal 2.4G+5G mode. The Ruijie RG-AP820LV2 Accesspoint Dubai fully comply with Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, allowing RG-AP820-LV2 guarantees minimal signal interference and a maximum of 1024 client connections.

Moreover, Ruijie RG-AP820LV2 Accesspoint Dubai is IoT ready with integrated module of BLE, without the need of external module and additional investment. Verified by Tolly Test Report, Ruijie RG-AP820LV2 Accesspoint Dubai providing nearly line-rate throughput at 955Mbps wireless performance by built-in Gigabit uplink port. Management efficiency and wireless security have never been easy, Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade.

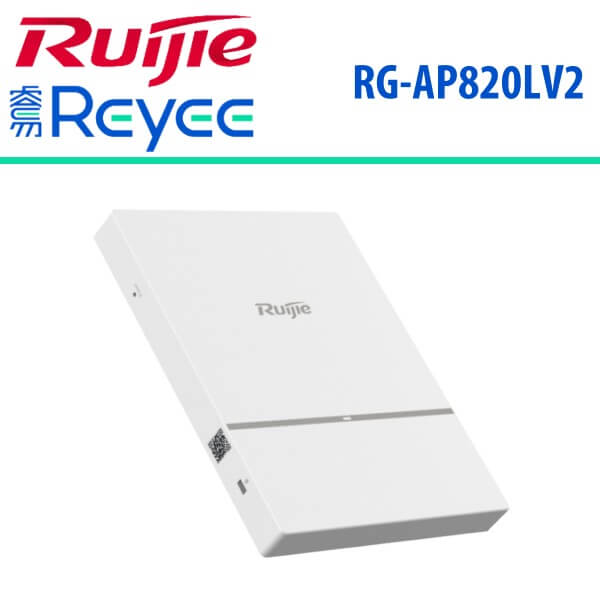

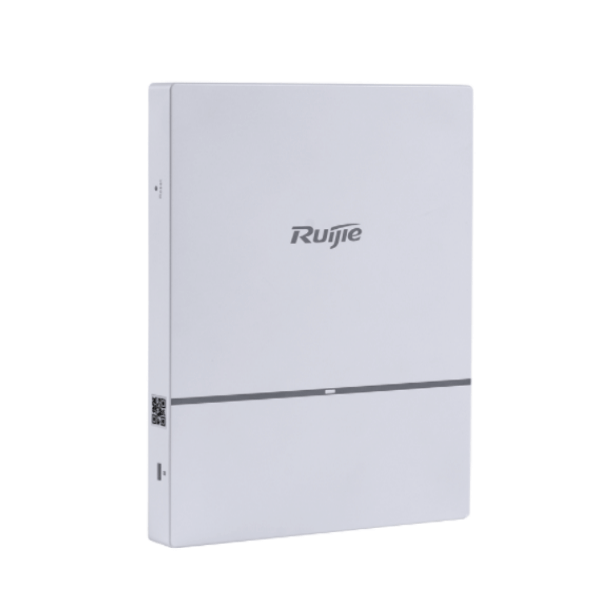

ruijie rg ap820lv2 wifi accesspoint dubai

For enhanced service, users are recommended to buy either of the following:

Public Cloud : Ruijie Cloud –Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips

Hybrid Cloud : RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) –targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 Aps per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting

Private Cloud : RG-MACC Software Controller –targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices

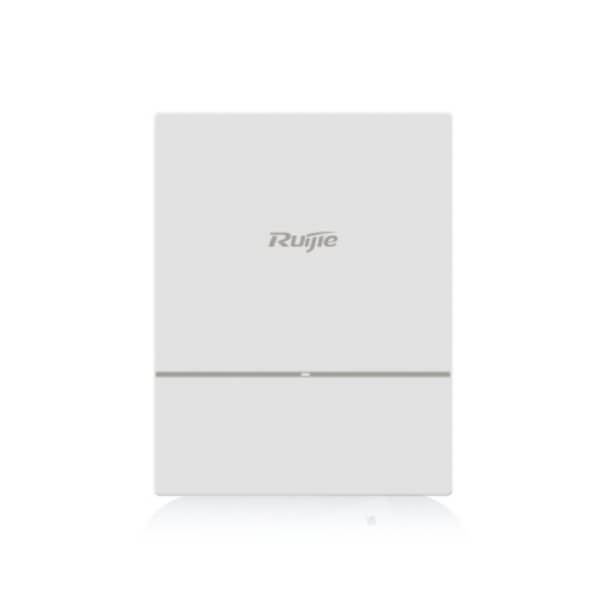

ruijie rg ap820lv2 wifi accesspoint sharjah

Features

Access point WiFi6 device, ceiling-mounted, wall –mounted
Speed up to 1.775Gbps (Radio1：4G 0.574Gbps, Radio2：5G 1.2Gbps)
Supports 2 bands 2.4GHz and 5GHz standard 802.11a/b/ g/n/ac/ax Wave1/Wave2, MU-MIMO
Antenna 2.4G: 3dBi, 5G: 3dBi. Stream Up to 4: 2×2:2 in 2.4GHz, 2×2:2 in 5GHz
Supports up to 1024 users | Up to 32 SSIDs
Recommended number of concurrent users 300+
1 10/100/1000M Uplink port (supports PoE power), 1 Console port
Supports 802.3af power (15.4W)
Support DC 48V/1A power source
LEDs for signal & operation status (red, green, blue)
Ruijie Cloud service support allows quick, simple configuration, easy management and monitoring

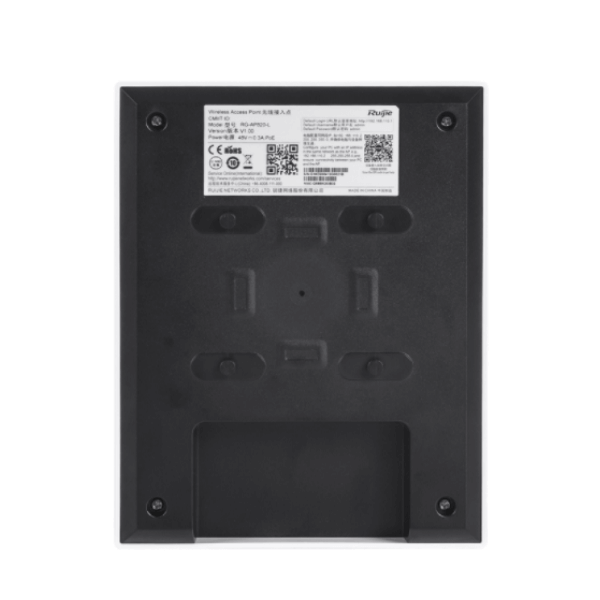

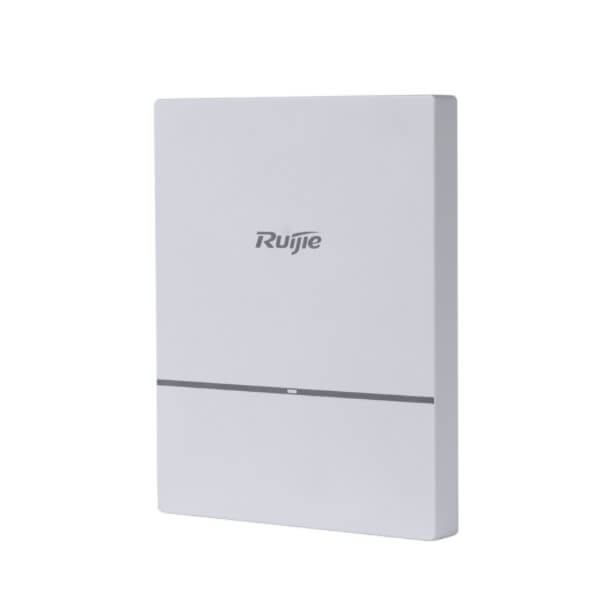

ruijie rg ap820lv2 accesspoint uae

Specifications

Model	RG-AP820-L(V2)
Hardware specifications
Radio	Dual-radio dual-band ： Radio 1 : 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2 : 5G 11ax: 2×2 MIMO
Protocol	Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands	802.11b/g/n/ax ：2.4G ~ 2.483GHz 802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries)
Spatial Streams	Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz
Max Throughput	Maximum throughput (5G+5G mode) per AP : 2.4Gbps Radio1：5G low band 1.2Gbps Radio2：5G high band 1.2Gbps 2.4G+5G operation mode, maximum throughput per AP : 1.775Gbps Radio1：2.4G 0.574Gbps Radio2：5G 1.2Gbps
Modulation	OFDM ：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS ：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM ：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM)
Receiver Sensitivity	11b ：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） 11a/g ：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n ：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac HT20 ：-88dBm（MCS0）, -63dBm（MCS9） 11ac HT40 ：-85dBm（MCS0）, -60dBm（MCS9） 11ac HT80 ：-82dBm（MCS0）, -57dBm（MCS9） 11ax HT80 ：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11）
Antenna	Integrated antenna design
Antenna Gain	2.4G : 3dBi 5G : 3dBi
Service Ports	1 10/100/1000M Ethernet ports, PoE In
Management Port	1 console port
Reset Button	Support
Anti-theft Lock	Support
LED Indicator	1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)
Transmit Power	≤100mw（20dBm） (vary depending on different countries)
Adjustable Power	1dBm
Power Supply	Local power supply (DC 48V/1A) （DC Power adapters should be purchased from third-party vendors separately if needed） PoE (802.3af) – full spectrum operation
Power Consumption	＜12.95W
Physical Specifications
Temperature	Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C
Humidity	Operating Humidity : 5% to 95% (non-condensing) Storage Humidity : 5% to 95% (non-condensing)
Installation Mode	Ceiling/wall-mountable
Dimensions (W x D x H)	153mm ×193mm x26mm（Height of the AP only, excluding the mount kit）
Weight	≤0.5kg (include mount kit)
IP Rating	IP41
MTBF	250,000 hours
Certifications and Compliance
Wi-Fi Alliance	Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA3-Enterprise, Personal Wi-Fi Enhanced Open Wi-Fi Agile Multiband WMM
Safety Standard	GB4943, EN/IEC 62368-1
EMC Standard	GB9254, EN301 489
Radio Standard	SRRC, EN300 328, EN301 893
Software Specifications
WLAN	Maximum clients per AP	1024
	BSSID capacity	Up to 32
	SSID hiding	Support
	5G Priority (Band Steering)	Support
	Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID	Support
	Remote Intelligent Perception Technology (RIPT)	Support
	Intelligent device recognition technology	Support
	Intelligent load balancing based on the number of users or traffic	Support
	STA control	SSID/radio-based
	Bandwidth control	STA/SSID/AP-based bandwidth control
	Data encryption	WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits）
	PSK and web authentication	Support
	PPSK authentication (For Employee)	Support (require wireless controller)
	802.1x authentication	Support
	PEAP authentication	Support
	Data frame filtering	Whitelist, static/dynamic blacklist
	User isolation	Support
	Rogue AP detection and countermeasure	Support
	Dynamic ACL assignment	Support
	RADIUS	Support
	CPU Protection Policy (CPP)	Support
	Network Foundation Protection Policy (NFPP)	Support
IP	IPv4 and IPv6 address	Support
	Multicast routing	Multicast to unicast conversion
	DHCP service	DHCP Snooping, Option 82, Server, Client
Management and Maintenance	Supported wireless LAN controllers	Ruijie WS Series Wireless Controller Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud)
	Management protocol	Telnet, SSH, TFTP, Web
	Wireless Intelligent AI Optimization Service (WIS)	Support
	SNMP	SNMPV1,V2c,V3
	LLDP	LLDP, LLDP-MED, LLDP-POE
	Syslog / Debug	Support
	FAT/FIT/MACC mode switching	Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
