Ruijie RG-EW1800GXPRO Dubai

Rating

Ruijie RG-EW1800GXPRO Dubai

Ruijie RG-EW1800GXPRO Dubai provides one 10/100/1000Mbps WAN ports and four 10/100/1000Mbps LAN ports, with the maximum access bandwidth of 1000Mbps.

Description

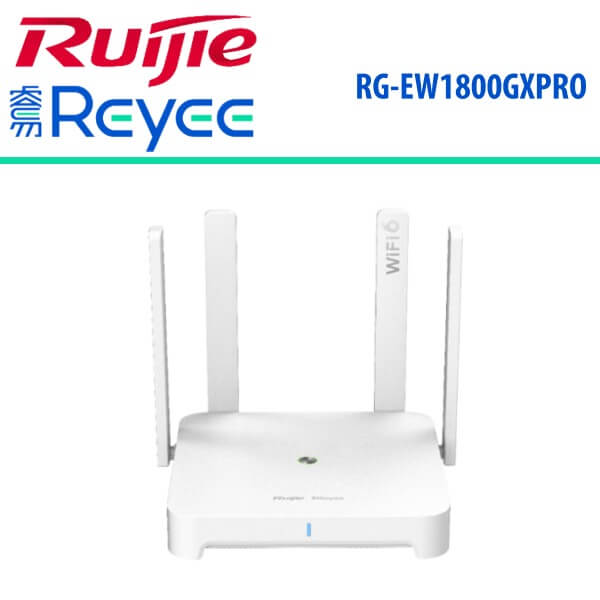

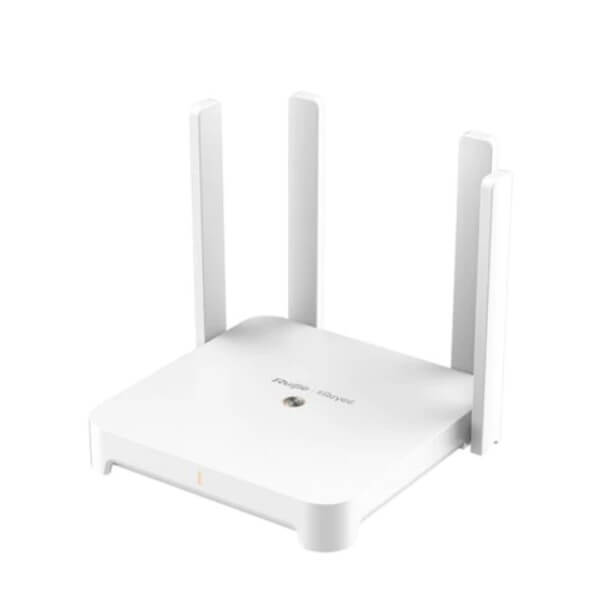

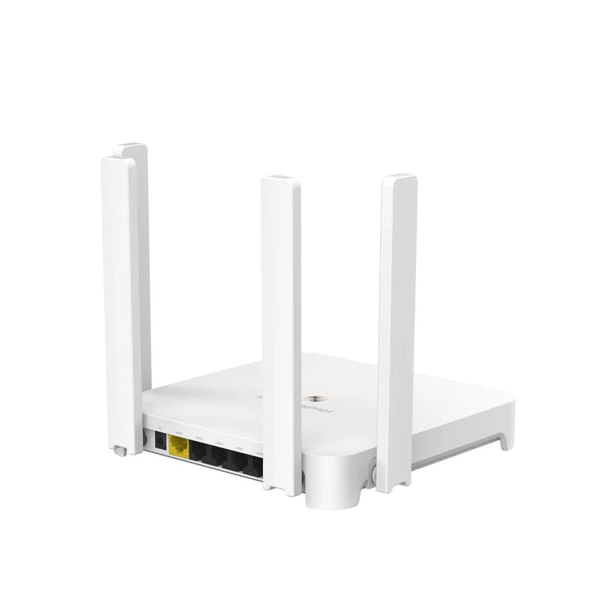

Ruijie RG-EW1800GXPRO Wireless Router Dubai

Ruijie RG-EW1800GXPRO Dubai is a Gigabit dual-band Wi-Fi 6 wireless router designed for use in large flat space, villas, small shops, SOHO, and other scenarios. It is designed to meet the needs of high quality next-generation Wi-Fi services. In addition, this router is equipped with four independent power amplifiers for intensifying signal strength. The signals from this router can cover a doubled distance compared with those from previous routers.

Ruijie RG-EW1800GXPRO Dubai provides one 10/100/1000Mbps WAN ports and four 10/100/1000Mbps LAN ports, with the maximum access bandwidth of 1000Mbps. The router supports the new-generation Wi-Fi 6 standard both at 2.4 GHz and 5 GHz. The maximum wireless rate of the Ruijie RG-EW1800GXPRO Dubai is 600Mbps at 2.4 GHz, 1200Mbps at 5 GHz, and  reach 1800Mbps in concurrent rate. The recommended access number of wireless terminals is up to 48, which is 50% more than the number supported by Wi-Fi 5.

Ruijie Reyee Mesh technology enables quickly connect multiple routers without cable or configurations. In this way, Wi-Fi signals can cover the entire large flat floors, complex units, duplexes, and villas. In addition, support hybrid mesh networking with whole EW Series Mesh Routers Family. The RF adjustment algorithm applied to millions of Ruijie enterprise-grade access points (APs) can provide seamless roaming among devices. Users can move around the Wi-Fi coverage area without service interruption.

Ruijie RG-EW1800GXPRO Dubai supports various local and remote management platform, such as eWeb, Ruijie Cloud App. This wireless router also  provides multiple popular functions, including the Parental Control Mode, Health Mode, Xpress Mode, and exclusive designed for Smart Kit System, meeting the needs of all lifestyle scenarios.

Technical Specs

Model

RG-EW1800GX PRO

Wireless Parameters

2.4 GHz, 2×2, maximum rate of 600Mbps

5 GHz, 2×2, maximum rate of 1200Mbps

4 external non-detachable omnidirectional antennes
802.11a/b/g/n/ac/ax and DL/UL MU-MIMO
Independent 2.4 GHz and 5 GHz modules and dual-band mode
Wi-Fi channel :

2.4GHz : 2.4G~2.4835GHz

5GHz :5.150~5.250GHz,5.250~5.350H,5.470~5.725GH,5.725~5.850GHz

Beamforming, OFDMA, and BSS color technologies

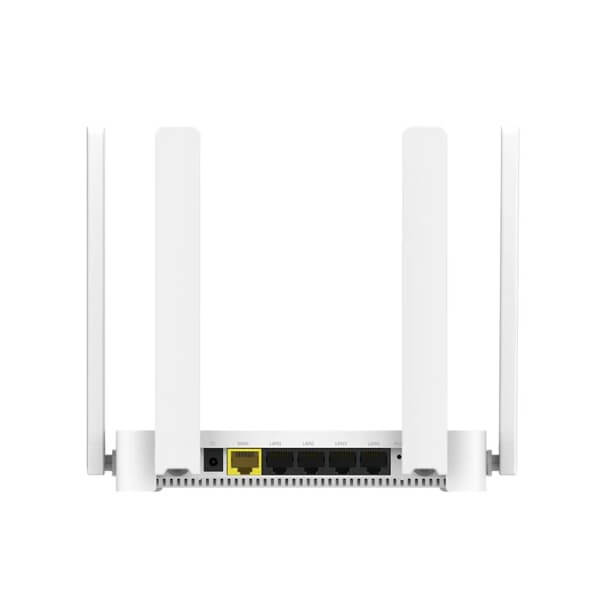

Ports

One 10/100/1000M WAN port (Auto MDI/MDIX)
Four 10/100/1000M LAN ports (Auto MDI/MDIX)
One Reyee Mesh LED indicator and one system LED indicator
One Reyee Mesh button (front) and one system reset button (rear)
One power port

Physical

Dimensions (W × D × H) : 180 mm × 180 mm × 30 mm (excluding antennas)
Weight : 1.125 kg (including packages)

Power Supply

Power specifications : DC 12 V, 1.5 A
Maximum power: < 18 W

Certification

CE

Operating Environment

Operating temperature : –10℃ to +45℃

Storage temperature : –40℃ to +70℃

Operating humidity : 5% to 95% (non-condensing)

Storage humidity : 5% to 95% (non-condensing)

Software Specifications

Model

RG-EW1800GX PRO

Main features

  • PPPoE, DHCP, static IP address for network connection
  • Acquisition of PPPoE accounts from old routers
  • Dual-band mode
  • Priority to 5G
  • Wireless Transmission Power adjustment
  • Automatic channel adjustment
  • Guest Wi-Fi
  • Rate limiting for terminal IP addresses
  • Static DHCP address
  • Virtual server
  • DDNS
  • DMZ
  • UPnP

Network security

  • WPA-PSK/WPA2-PSK encryption
  • SSID hiding
  • Wi-Fi squatter prevention (Blacklist)
  • Network access control
  • IP & MAC Binding
  • Firewall

Advanced features

  • Reyee Mesh : Supported by EW Series Routers. Enables Mix & Match, Self-Healing, etc
  • Wireless roaming;
  • Hardware NAT;
  • One-click network optimization;
  • Issue  diagnosis;
  • Remote maintenance on the cloud;
  • Auto and manual software upgrade on the cloud;
  • Silent upgrade of cloud software;

Management modes

Local web pages

Ruijie Cloud App : iOS edition and Android edition
