Tplink MC100CM Dubai

Rating

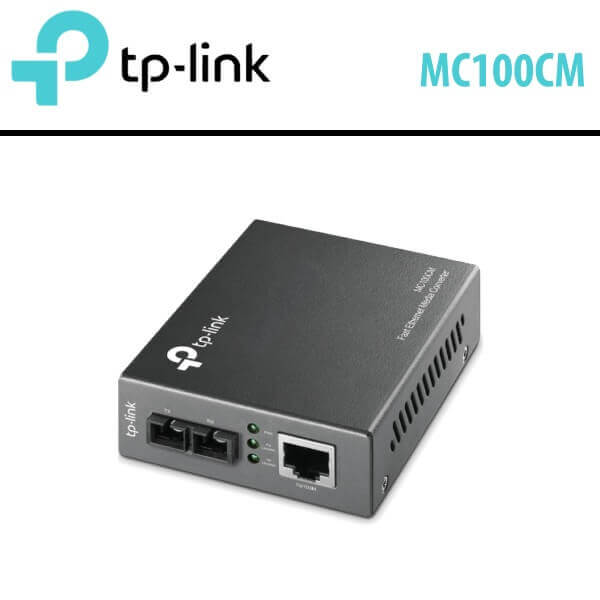

Tplink MC100CM Dubai

The Tplink MC100CM Dubai Media Converter supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Category:

Description

Tplink MC100CM Media Converter Dubai

The Tplink MC100CM Dubai is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the Media Converter is designed using multi-mode fiber cable with an SC-Type terminal for physical connections.

The Tplink MC100CM Dubai Media Converter supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The Media Converter will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).

Quick Features

  • Tplink MC100CM Dubai complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • The Tplink MC100CM extends fiber distance up to 1.2 miles (2km)

Technical Specs

Brand tp-link
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Full Duplex Flow Control (IEEE 802.3x)
  • Half Duplex Flow Control (Backpressure)
  • Extends fiber distance up to 1.2 miles (2km)
Ports
  • 1 100M SC/UPC port
  • 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 10BASE-T
  • UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Multi-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External power supply
Max Power Consumption 2.4W
Safety & Emission FCC, CE, RoHS
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
