Cisco Nexus7700-2Slot Dubai

The Cisco Nexus7700-2Slot Dubai switch is designed to extend the feature richness of the Nexus 7700 family to small and medium-sized deployments.

Description

Cisco Nexus7700-2Slot Network Switch Dubai

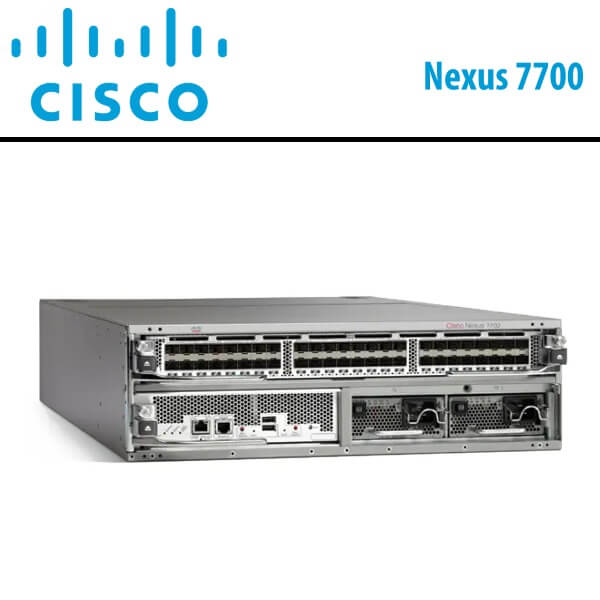

The Cisco Nexus7700-2Slot Dubai is a 2 slot, three-rack-unit (3RU) chassis that supports all current Nexus 7700 10/40/100 Gigabit Ethernet (GE) modules (except the F2E I/O modules), supervisors, and power supplies. It provides feature and operational consistency and investment protection. This switch is ideal for small and medium-sized data center interconnect (DCI) solutions.

Features and Capabilities

Compact Form Factor

The Cisco Nexus7700-2Slot Dubai is space optimized to deliver lower TCO:

  • Its 3RU chassis has one module slot.
  • It supports 48 ports of 1/10 GE, 24 ports of 40 GE, or 12 ports of 100 GE; all ports are nonblocking.
  • Power consumption is low.
  • It delivers true front-to-back air flow for hot-cold aisle deployments.

Deployment Flexibility

The Cisco Nexus7700-2Slot Dubai switch is designed to extend the feature richness of the Nexus 7700 family to small and medium-sized deployments. The comprehensive DCI feature set includes Cisco Overlay Transport Virtualization (OTV), Cisco Locator/ID Separation Protocol (LISP), Cisco IOS Multiprotocol Label Switching (MPLS), and Virtual Private LAN Service (VPLS). The switch is hardware ready for Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) technologies.

In addition, the compact sever chassis offers:

  • High-performance Remote Integrated Service Engine (RISE) and Intelligent Traffic Director (ITD) services from Cisco
  • Comprehensive Layer 2 and Layer 3 feature sets for small data center aggregation and campus cores

Operation and Feature Consistency

Cisco Nexus7700-2Slot Dubai Switches maintain consistency with the Cisco Nexus 7000 Series, offering:

  • The same proven common architecture, application-specific integrated circuits (ASICs), and Cisco NX-OS software
  • One of the industry’s most comprehensive data center feature sets
  • The same software train across the entire Cisco Nexus 7000 Series to help ensure consistency

Technical Specs

Product Name Nexus 7700 2 Slot Chassis No P/S Fans Included
Manufacturer Part Number N77-C7702
Product Type Switch Chassis
Manageable Yes
Number of Total Expansion Slots 2
Product Family Nexus 7000
Stack Port No
Redundant Power Supply Supported Yes
Expansion Slot Type Line CardSupervisor Engine
Form Factor Rack-mountable
Power Source Power Supply
Layer Supported 2
Compatible Rack Unit 3U
Modular Yes
Uplink Port No
Port / Expansion Slot Details 2 x Expansion Slot
Height 5.2″
Width 17.3″
Depth 29.1″
Product Series 7000
Product Model 7702
Product Line Nexus
Limited Warranty 1 Year
