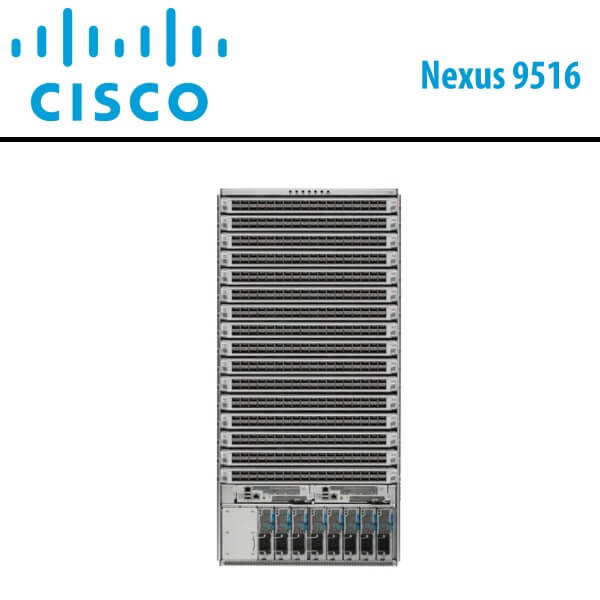

Cisco Nexus9516 Dubai

The Cisco Nexus9516 Dubai operates in one of two modes – Cisco Application Centric Infrastructure (Cisco ACI™) or Cisco NX-OS. In Cisco ACI mode, these switches provide a turnkey, fully automated, policy-based architecture to design and manage data center fabrics.

Description

Cisco Nexus9516 Network Switch Dubai

The Cisco Nexus9516 Dubai offers a comprehensive feature set, high resiliency, and a broad range of 1/10/40 Gigabit Ethernet line cards. It can meet the most demanding requirements of enterprise, service provider, and cloud data centers.

The Cisco Nexus9516 Dubai operates in one of two modes – Cisco Application Centric Infrastructure (Cisco ACI™) or Cisco NX-OS. In Cisco ACI mode, these switches provide a turnkey, fully automated, policy-based architecture to design and manage data center fabrics. In Cisco NX-OS mode, these switches provide the capability to use foundational layer 2/3 technologies, as well as modern technologies such as VXLAN, with a Border Gateway Protocol‒Ethernet VPN (BGP-EVPN) control plane, Segment routing, Multiprotocol Label Switching (MPLS), and automation via NX-APIs.

Features:

Cisco ACI support

  • Cisco Nexus9516 Dubai is designed to support the Cisco next-generation data center based on Cisco ACI

Programmability

  • Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
  • Automated configuration through Linux shell scripts
  • Cisco Nexus9516 Dubai has built-in support for customer applications through a Linux container environment

High availability

  • Software patching for continued operations
  • Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
  • Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

Energy efficiency

  • Cisco Nexus9516 Dubai is designed without a midplane to optimize front-to-back airflow and reduce power consumption
  • Optimized design with fewer ASICs, resulting in lower energy use
  • Efficient power supplies that are rated at 80 Plus Platinum

Investment protection

  • 40 Gb  for reuse of existing 10 Gigabit Ethernet multimode cabling plant for 40 Gigabit Ethernet
  • Support for Cisco NX-OS and Cisco ACI modes of operation

Technical Specs

Product Code N9K-C9516
Chassis
  • Up to 16 line cards
  • Up to 10 power supplies
  • Up to 6 fabric modules of the same type
  • Up to 2 system controllers
  • Up to 2 supervisors of the same type
  • Up to 3 fan trays
Number of line card slots 16
Physical (H x W x D) 36.70 x 17.50 x 31.76 in. (93.41 x 44.50 x 80.67 cm)
Rack Units 21
