Cisco WAP125 Dubai

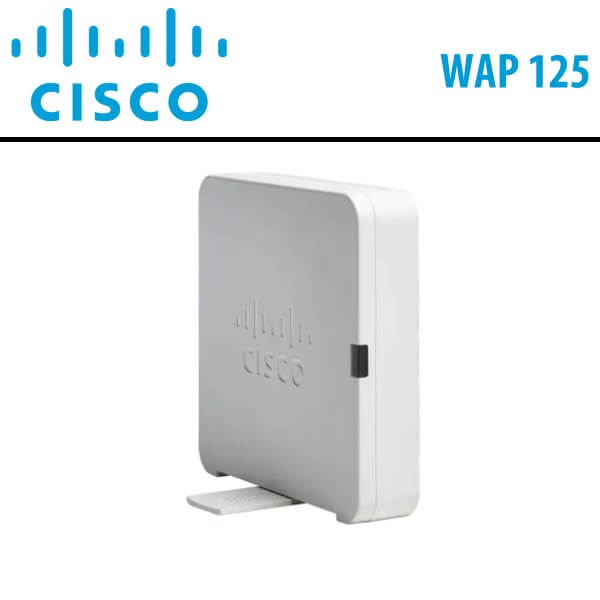

The Cisco WAP125 Dubai is an entry-level access point that has been designed to serve the connectivity needs and requirements small businesses, home offices, and small offices that require fast, simple, and secure Wi-Fi connectivity at an affordable price.

Description

Cisco WAP125 Access Point Dubai

The Cisco WAP125 Dubai is an entry-level access point that has been designed to serve the connectivity needs and requirements small businesses, home offices, and small offices that require fast, simple, and secure Wi-Fi connectivity at an affordable price.

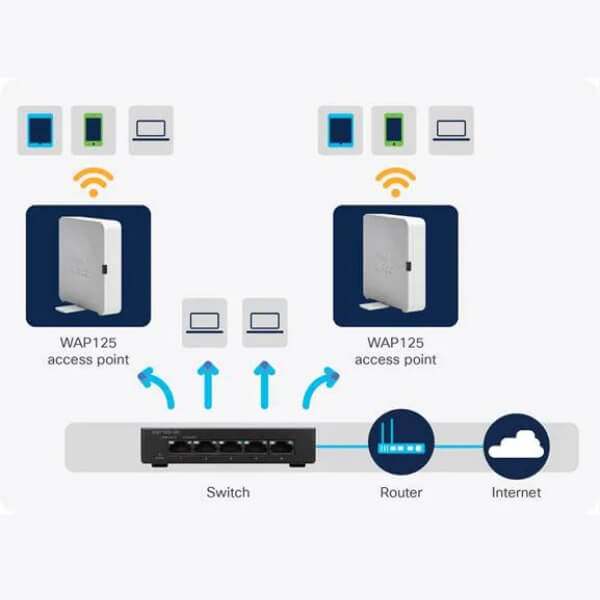

The Cisco Wi-Fi Dubai is a powerful Wireless-AC Dual Band Desktop Access Point that comes equipped with PoE to provide a simple, cost-effective way to extend secure, high-performance mobile networking to your employees and guests, so they can stay connected anywhere in the office. Cisco WAP125 Dubai lets you connect dozens of employees, and can scale to accommodate additional users and changing business needs.

The Cisco WAP125 Dubai uses concurrent dual-band radios for improved coverage on mobile devices. A Gigabit Ethernet LAN interface with PoE supports flexible installation and can reduce cabling and wiring costs. Intelligent Quality-of-Service (QoS) features let you prioritize bandwidth-sensitive traffic for Voice over IP (VoIP) and video applications.

To provide highly secure guest access to visitors and other users, the Cisco Wi-Fi Dubai supports a captive portal with multiple authentication options and the ability to configure rights, roles, and bandwidth. A customized guest login page lets you present a welcome message and access details, and reinforces your brand with company logos.

The Cisco WAP125 Dubai is easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive, compact design with integrated stand allows the access point to be placed on a desk or other flat surface.

To enhance reliability and safeguard sensitive business information, the Cisco WAP125 Dubai access point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1X RADIUS authentication helps keep unauthorized users out.

The Cisco Wi-Fi Dubai offers a captive portal for guest access, allowing you to control Internet access for guests and give your customers a better experience.

Features :

  • Cisco WAP125 Dubai provides cost-effective 802.11ac wireless connectivity for 2.4-GHz and 5-GHz clients with speeds up to 867 Mbps.
  • Gigabit Ethernet LAN interface with Power over Ethernet (PoE) enables flexible installation.
  • Cisco WAP125 Dubai offers simple web-based configuration and mobile friendly setup wizard allows setup in minutes.
  • Cisco WAP125 Dubai supports social media login for guest access (Google and Facebook).
  • Cisco Wi-Fi Dubai is integrated with Cisco Umbrella to help manage security across all wireless devices.
  • Supported by the new Cisco® FindIT Network Management platform for easy management, monitoring and control your Cisco 100, 300 and 500 access points.

Specifications

Technical Specification
Cabling Category 5e or higher
Standards IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (secure authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Antennas Internal antennas optimized for desktop installation
Operating system Linux
Physical Interfaces

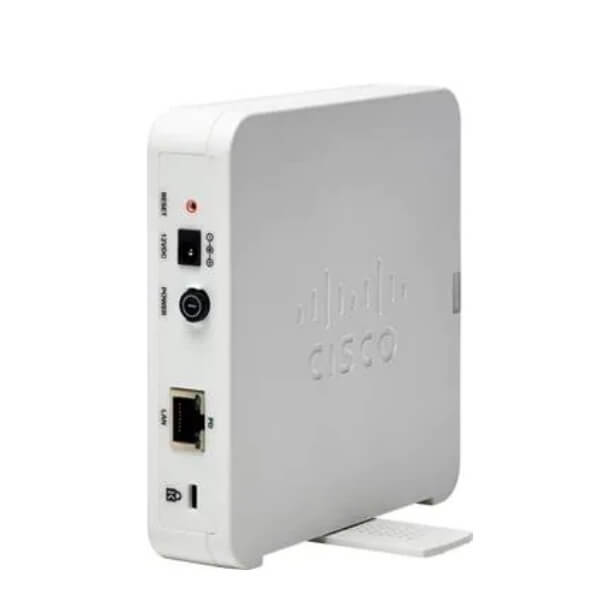

Ports 1 x 10/100/1000 Ethernet, with 802.3af/at PoE support, power port for AC adapter (included)
Power supply 802.3af/at PoE or external 12 V/1 A DC power supply unit
Buttons Reset button, on/off button
Lockout socket Kensington Castle Nest
LEDs One multifunctional LED
Physical specification
Physical dimensions (W x D x H) 123 mm x 123 mm x 31 mm
Weight 303 g
Network capacities
VLAN support Yes
Number of VLANs 1 VLAN manager plus 8 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Automatic channel selection Yes
Spanning Tree Yes
Load balancing Yes
IPv6 Yes

  • IPv6 host support
  • IPv6 RADIUS, syslog, NTP protocol
Layer 2 VLANs based on 802.1Q, 8 active VLANs plus 1 VLAN to manage
Security
WPA, WPA2 Yes, including Enterprise authentication
Access control Yes, access control list (ACL), MAC ACL
Safe management HTTPS
SSID broadcast Yes
Detection of hostile access points Yes
Installation and physical safety
Mounting options On the desk
Quality of Service
QoS Wi-Fi traffic and multimedia specification (WMM TSPEC), QoS client
Performance
Wireless network bandwidth Data transfer rate up to 867Mbps (actual throughput may vary)
Number of users Up to 64 connected users, 10 active users per radio
Configuration
User interface Built-in web user interface for easy configuration in the browser (HTTP, HTTPS)
Management
Management protocols Web browser, SNMP (Simple Network Management Protocol) v3, Bonjour
Remote management Yes
Recording of events Local, remote syslog, e-mail alerts
Network diagnostics Registration and interception of packages
Firmware update Possibility to update the firmware via a web browser, imported or exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
Wireless network
Frequency 2.4 GHz and 5 GHz
WLAN
  • 802.11n/ac
  • 2×2 MIMO with 2 streams at 5 GHz
  • 2×2 MIMO with 2 streams at 2.4 GHz
  • 20, 40 and 80 MHz channels for 802.11ac
  • 20 and 40 MHz for 802.11n
  • PHY data rate up to 867 Mbps
Supported data rates
  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2 and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20 MHz bandwidth : MCS 0-15 for supported data rates
    • 40 MHz bandwidth : MCS 0-15 for supported data rates
  • 802.11ac : 6.5 to 867 Mbps
    • 20 MHz bandwidth : MCS 0-9 for supported data rates
    • 40 MHz bandwidth : MCS 0-9 for supported data rates
    • 80 MHz bandwidth : MCS 0-9 for supported data rates
Wireless insulation Wireless insulation between customers
External antennas None
Internal antennas Internal, fixed PiFA antenna
Antenna reinforcement
  • Maximum antenna gain of 4.02 dBi at 2.4 GHz
  • Maximum antenna gain of 5.63 dBi at 5 GHz
Wireless Distribution System (WDS) Yes
Fast roaming Yes
Multiple SSIDs 8
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with automatic energy saving
Modes of operation
Access point Access point mode, WDS bridge mode, work group bridge mode
Environmental
Power options
  • IEEE 802.3af Ethernet switch
  • PoE Cisco injector : SB-PWR-INJ2-xx
  • 12 V/1 A power supply unit (included)
  • PoE peak power : 6,5 W
Compatibility Security :

  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1

Radio authorization :

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • AS/NZS 4268.2003 (Australia and New Zealand)

EMI and sensitivity (Class B) :

  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • EN 301.489-1 and -17 (Europe)
Operating temperature 0°C to 40°C
Storage temperature -20°C to 70°C
Moisture 10% to 85%, non-condensing
Storage humidity 5% to 90%, non-condensing
System memory
  • 256 MB RAM
  • 128 MB flash
Package contents
  • WAP125 – access point
  • Quick Start Guide
  • Ethernet network cable
