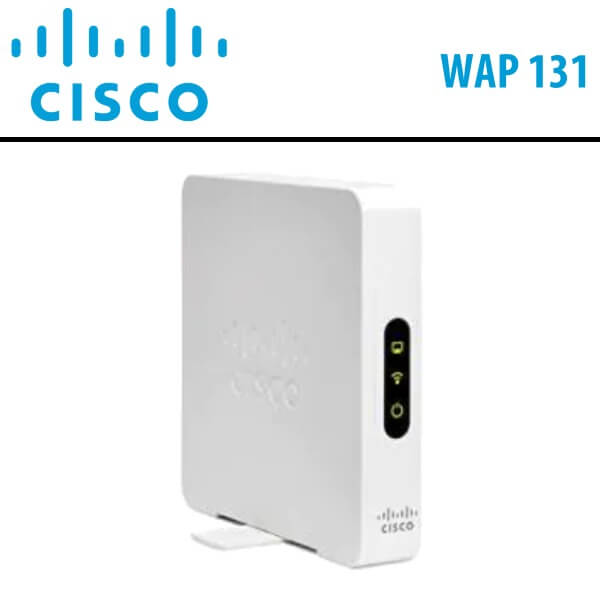

Cisco WAP131 Dubai

Cisco Wi-Fi Dubai is easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive desktop design with an integrated stand allows you to place the AP on your desk vertically or horizontally.

Description

Cisco WAP131 Access Point Dubai

The Cisco WAP131 Dubai is a Wireless-N Dual Radio Access Point which has been designed to provide a simple, cost-effective way to extend secure, high-performance mobile networking to your employees and guests, so they can stay connected anywhere in the office. It simply enables you to connect dozens of employees, and can scale to accommodate additional users and changing business needs.

Cisco WAP131 Dubai uses concurrent dual-band radios for improved coverage and user capacity. The Gigabit Ethernet port allows the AP to be powered by PoE switch to help reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features let you prioritize bandwidth-sensitive traffic for voice‑over-IP (VoIP) and video applications.

Cisco Wi-Fi Dubai is easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive desktop design with an integrated stand allows you to place the AP on your desk vertically or horizontally.

To enhance reliability and safeguard sensitive business information, the Cisco WAP131 Dubai Wireless-N Dual Radio Access Point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1 X RADIUS authentications help keep unauthorized users out.

Features

  • Cisco WAP131 Dubai offers concurrent dual-band radio support for up to 300 Mbps per radio to maximize capacity and coverage.
  • Cisco Wi-Fi Dubai is equipped with a single Gigabit Ethernet LAN interface which enables a high-speed uplink to the wired network.
  • Cisco WAP131 Dubai offers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue-access-point detection, helps protect sensitive business information.
  • Simple installation and intuitive web-based configuration and wizard enable fast, simple deployment and setup in minutes.

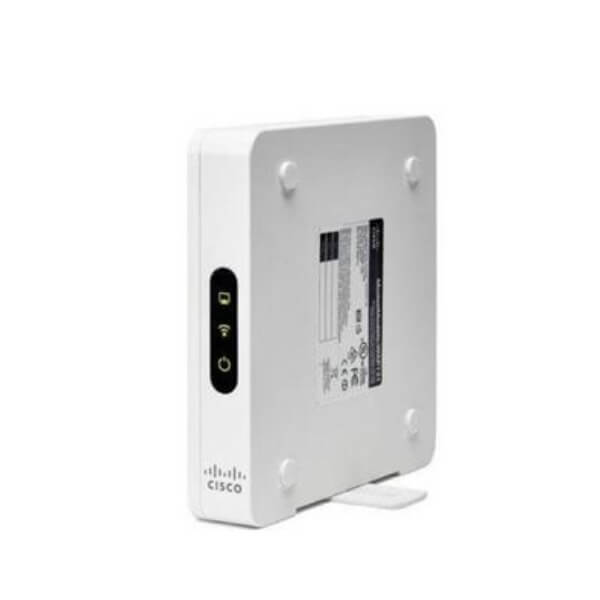

  • Cisco Wi-Fi Dubai boasts of a simple, desktop design with integrated stand, for easy access and placement.
  • Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
  • Cisco WAP131 Dubai has power-saving sleep mode and port control features which help maximize energy efficiency.
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
  • Cisco WAP131 Dubai has built-in support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
  • Limited lifetime hardware warranty provides peace of mind.

Specifications

Specifications

Description

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Cabling type

Category 5e or better

Antennas

Internal antennas optimized for desktop installation with vertical orientation

LED indicators

Power, WLAN, LAN

Operating system

Linux

Physical Interfaces

Ports

10/100/1000 Ethernet, with support for 802.3af/at PoE, Power Port for AC adapter

Power Supply

External 12V 1.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af/at PoE

Buttons

Reset button, Power (on/off), Push button

Lock slot

Slot for Kensington lock

LEDs

Power, Wireless, Ethernet

Physical Specifications

Physical dimensions (W x D x H)

6.693 x 6.693x 1.413 in. (170 x 170 x 35.9 mm)

Weight

0.89 lb (0.40kg)

Network Capabilities

VLAN support

Yes

Number of VLANs

1 management VLAN plus 8 VLANs for SSIDs

802.1X supplicant

Yes

SSID-to-VLAN mapping

Yes

Auto channel selection

Yes

Spanning tree

Yes

Load balancing

Yes

IPv6

  • Yes
  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.

Layer 2

802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN

Security

WPA and WPA2

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

SSID broadcast

Yes

Rogue-access-point detection

No

Mounting and Physical Security

Mounting options

Desktop only

Physical security lock

Kensington lock slot

Quality of Service

Quality of service (QoS)

Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS

Performance

Wireless throughput

Up to 300-Mbps data rate (real-world throughput will vary)

Recommended user support

Up to 32 connective users, 16 active users per radio

Configuration

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

Management

Management protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour

Remote management

Yes

Event logging

Local, remote syslog, email alerts

Network diagnostics

Logging and packet capture

Web firmware upgrade

Firmware upgradable through web browser, imported/exported configuration file

Dynamic Host Configuration Protocol (DHCP)

DHCP client

IPv6 host

Yes

HTTP redirect

No

Wireless

Frequency

Dual concurrent radios (2.4 and 5 GHz)

Radio and modulation type

Dual radio, orthogonal frequency division multiplexing (OFDM)

WLAN

802.11n

2×2 multiple-input multiple-output (MIMO) with 2 spatial streams

20, and 40 MHz for 802.11n

PHY data rate up to 600 Mbps

Data rates supported

  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20-MHz bandwidth : MCS 0-15 for supported data rates
    • 40-MHz bandwidth : MCS 0-15 for supported data rates

Frequency Band and 20-MHz Operating Channels

A Regulatory Domain :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.745 to 5.825 GHz; 5 channels

E Regulatory Domain:

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels

C Regulatory Domain:

  • 2.412 to 2.462 GHz; 11 channels
  • 5.745 to 5.805 GHz; 4 channels

Maximum Number of Non-overlapping Channels

2.4 GHz

  • 802.11b/g
    • 20 MHz : 3
  • 802.11n
    • 20 MHz : 3

5 GHz

  • 802.11a
    • 20 MHz : 9
  • 802.11n
    • 20 MHz : 9
    • 40 MHz : 4

Wireless isolation

Wireless isolation between clients

External antennas

None

Internal antennas

Internal Fixed PiFA Antenna

Antenna gain in dBi

  • Maximum antenna gain of 3.4 dBi on 2.4 GHz
  • Maximum antenna gain of 4.5 dBi on 5 GHz

Wireless distribution system (WDS)

Yes

802.11i

Yes

Multiple SSIDs

8

Wireless VLAN map

Yes

WLAN security

Yes

Wi-Fi Multimedia (WMM)

Yes, with unscheduled automatic power save

Operating Modes

Access point

Access Point mode, WDS Bridging, Workgroup Bridge mode

Environmental

Power options

  • IEEE 802.3af/at Ethernet switch
  • Cisco Power Injector – SB-PWR-INJ2-xx
  • AC Adapter – included 12v1.5A
  • PoE Peak power : 7.42W

Compliance

  • Safety:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • IEC 60950-1
    • EN 60950-1
  • Radio approvals:
    • FCC Part 15.247, 15.407
    • RSS-210 (Canada)
    • EN 300.328, EN 301.893 (Europe)
    • AS/NZS 4268.2003 (Australia and New Zealand)
  • EMI and susceptibility (Class B):
    • FCC Part 15.107 and 15.109
    • ICES-003 (Canada)
    • EN 301.489-1 and -17 (Europe)

Operating temperature

0° to 40°C (32° to 104°F)

Storage temperature

-20° to 70°C (-4° to 158°F)

Operating humidity

10% to 85% noncondensing

Storage humidity

5% to 90% noncondensing

System memory

128-MB RAM

128-MB Flash

Package Contents

  • Cisco WAP131 Wireless-N Dual Radio Access Point
  • AC Power Adapter
  • User guide on CD-ROM
  • Quick-start guide
  • Ethernet network cable

Minimum Requirements

  • Switch or router with PoE support, PoE injector, or AC Power Adapter
  • Web-based configuration : Java-enabled web browser

Warranty

Access point

Limited lifetime
