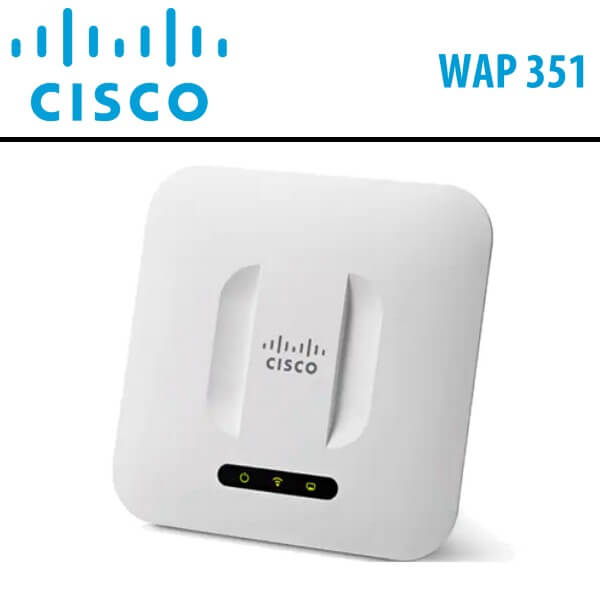

Cisco WAP351 Dubai

Rating

Cisco WAP351 Dubai

Cisco Wi-Fi Dubai is equipped with a 5- Port Gigabit Ethernet LAN Switch supports both PD and PSE, allowing IP devices and the AP to be powered by a backbone switch.

Description

Cisco WAP351 Access Point Dubai

The Cisco WAP351 Dubai enables you to enhance productivity in your business using its numerous advanced features. It is a powerful Wireless-N Dual Radio Access Point with 5 Ports Switch that has been designed to offer 802.11n dual-radio connectivity and supports concurrent dual-band radios. Cisco Wi-Fi Dubai is is an ideal, lower-cost solution for hospitality, conference rooms, or classroom deployments.

The Cisco WAP351 Dubai provides speeds up to 300 Mbps to help businesses increase productivity and run new business applications. The power-device (PD) port (power in) allows the access point to be powered by a backbone switch, and the power-sourcing-equipment (PSE) port (power out) allows the access point to power an IP device. The Cisco Wi-Fi Dubai advanced features will help simplify the deployment of wired and wireless devices.

Cisco WAP351 Dubai Wireless-N Dual Radio Access Points are easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive design with flexible mounting options enables the access points to smoothly blend into any small business environment.

To enhance reliability and safeguard sensitive business information, the Cisco WAP351 Wireless-N Dual Radio Access Point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1 X RADIUS authentications help keep unauthorized users out.

Cisco WAP351 Dubai is designed to scale smoothly as your organization grows, the access points feature controllerless Single Point Setup that simplifies the deployment of multiple access points without additional hardware. With the Cisco WAP351 Wireless-N Dual Radio Access Point, you can extend business-class wireless networking to employees and guests anywhere in the office, with the flexibility to meet new business needs for years to come.

Features

  • Cisco WAP351 Dubai comes with concurrent dual-band radio which supports up to 300 Mbps per radio to maximize capacity and coverage.
  • Single Point Setup, a controllerless technology, simplifies the deployment and management of multiple access points – without requiring additional hardware.
  • Cisco WAP351 Dubai offers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue-access-point detection, helps protect sensitive business information.
  • Captive portal enables highly secure, customized guest access with multiple rights and roles.
  • Simple installation and intuitive web-based configuration and wizard enable fast, simple deployment and setup in minutes.

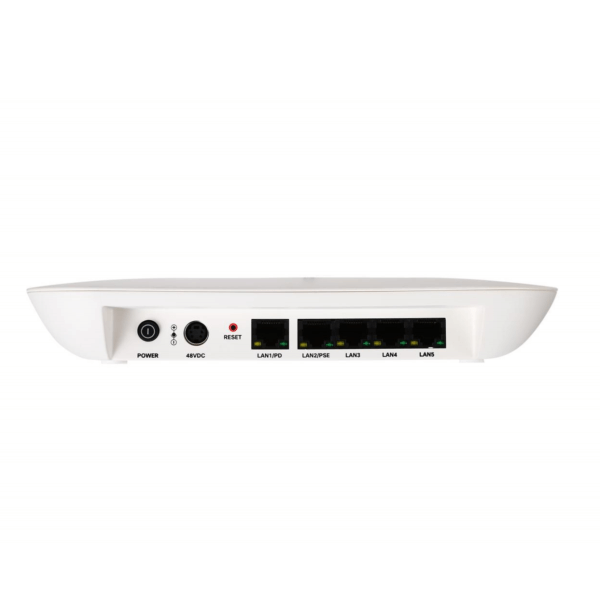

  • Cisco Wi-Fi Dubai is equipped with a 5- Port Gigabit Ethernet LAN Switch supports both PD and PSE, allowing IP devices and the AP to be powered by a backbone switch.
  • Cisco WAP351 Dubai has a sleek, simple design with multiple internal antennas and versatile mounting kit which enables installation on a ceiling, wall, or desktop.
  • Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
  • Power-saving sleep mode and port control features help maximize energy efficiency.
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
  • Cisco WAP351 Dubai has built-in support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
  • Limited lifetime hardware warranty provides peace of mind.

Technical Specifications

Specifications Description
Standards IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Cabling type Category 5e or better
Antennas Internal antennas optimized for installation on a wall or ceiling
LED indicators Power, WLAN, LAN
Operating system Linux
Physical Interfaces
Ports 5 10/100/1000 Ethernet, with support for 802.3af /at PoE, Power Port for AC adapter (not included)
Power Supply 802.3af/at PoE and External 48V/1.25A DC power adapter (not included)
Buttons Reset button, Power On/Off
Lock slot Slot for Kensington lock
Physical Specifications
Physical dimensions (W x D x H) 9.055 x 9.055 x 1.575 in. (230 x 230 x 40 mm)
Weight 1.34 lb or 0.607 kg
Network Capabilities
VLAN support Yes
Number of VLANs 1 management VLAN plus 16 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Auto channel selection Yes
Spanning Tree Yes
Load balancing Yes
IPv6 Yes

  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
Layer 2 802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN
Security
WPA/WPA2 Yes, including Enterprise authentication
Access control Yes, management access control list (ACL) plus MAC ACL
Secure management HTTPS
SSID broadcast Yes
Rogue-access-point detection Yes
Mounting and Physical Security
Multiple mounting options Mounting bracket included for easy ceiling or wall mounting
Physical security lock Kensington lock slot
Quality of Service
Quality of service (QoS) Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS
Performance
Wireless throughput Up to 300-Mbps data rate (real-world throughput will vary)
Recommended user support 32 active clients/users per radio
Multiple-Access Point Management
Single Point Setup Yes
Number of access points per cluster 8
Active clients per cluster 240
Configuration
Web user interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management
Management protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management Yes
Event logging Local, remote syslog, email alerts
Network diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported/exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
HTTP redirect Yes
Wireless
Frequency Dual concurrent radios (2.4 and 5 GHz)
Radio and modulation type Dual radio, orthogonal frequency division multiplexing (OFDM)
WLAN
  • 802.11n
  • 2×3 multiple-input multiple-output (MIMO) with 2 spatial streams on 2.4 GHz
  • 2×2 multiple-input multiple-output (MIMO) with 2 spatial streams on 5 GHz
  • 20, and 40 MHz for 802.11n
  • PHY data rate up to 600 Mbps
Data rates supported
  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20-MHz bandwidth : MCS 0-15 for supported data rates
    • 40-MHz bandwidth : MCS 0-15 for supported data rates
Frequency band and 20-MHz operating channels A Regulatory Domain :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.745 to 5.825 GHz; 5 channels
E Regulatory Domain :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels

C Regulatory Domain :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.745 to 5.8 0 5 GHz; 4 channels
Nonoverlapping channels 2.4 GHz

  • 802.11b/g
    • 20 MHz : 3
  • 802.11n
    • 20 MHz : 3

5 GHz

  • 802.11a
    • 20 MHz : 9
  • 802.11n
    • 20 MHz : 9
    • 40 MHz : 4
Wireless isolation Wireless isolation between clients
External antennas None
Internal antennas Internal Fixed PiFA Antenna
Antenna gain in dBi
  • Maximum antenna gain of 5.3 dBi on 2.4 GHz
  • Maximum antenna gain of 5.1 dBi on 5 GHz
Wireless distribution system (WDS) Yes
Roaming 802.11i only
Multiple SSIDs 16
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with unscheduled automatic power save
Operating Modes
Access point Access Point mode, WDS Bridging, Workgroup Bridge mode
Environmental
Power options
  • IEEE 802.3af/af Ethernet switch
  • Cisco Power Injector – SB-PWR-INJ2-xx
  • AC Adapter – SB-PWR-48V-xx (not included)
  • PoE power :
  • Peak PoE power : 18W
Operating temperature 0° to 40°C (32° to 104°F)
Storage temperature -20° to 70°C (-4° to 158°F)
Operating humidity 10% to 85% noncondensing
Storage humidity 5% to 90% noncondensing
System memory
  • 128-MB RAM
  • 128-MB Flash
Package Contents
  • Cisco WAP351 Wireless-N Dual Radio Access Point
  • Ceiling-/wall-mounting kit
  • User guide on CD-ROM
  • Quick-start guide
  • Ethernet network cable
