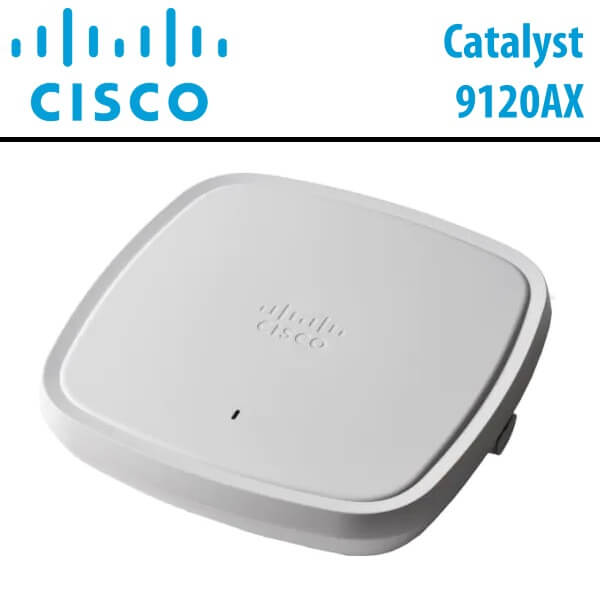

Cisco Catalyst9120AX Dubai

Rating

Cisco Catalyst9120AX Dubai

The Cisco Catalyst9120AX Dubai Wi-Fi 6 AP can support 1024 QAM, which means faster data communications than currently possible.

Description

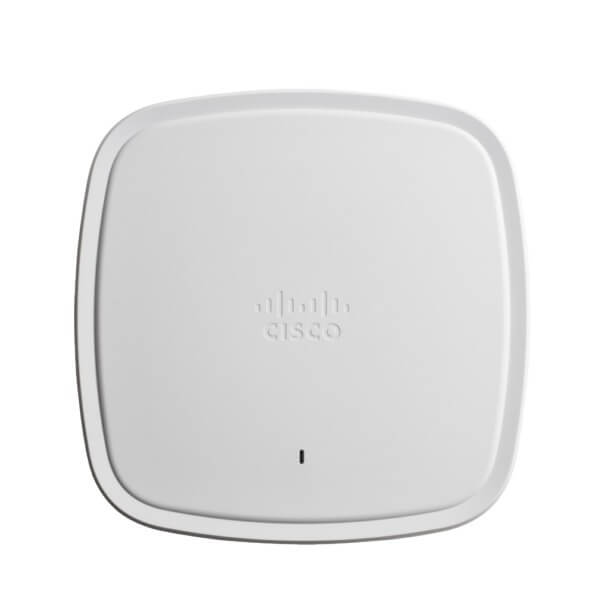

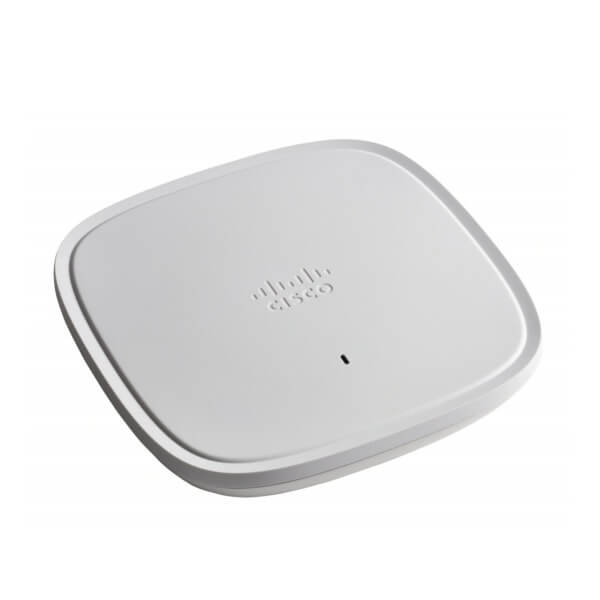

Cisco Catalyst9120AX Access Point Dubai

The Cisco Catalyst 9120 Series Access Points are resilient, secure, and intelligent. The Cisco Catalyst9120AX Dubai provides integrated security, resiliency and operational flexibility as well as increased network intelligence.
The Cisco Catalyst9120AX Dubai scales to the growing demands of IoT while fully supporting the latest innovations and modern technologies. Not only that, but the Catalyst 9120 is the leaders in performance, security and analytics.

These Cisco Catalyst9120AX Dubai are the first step in updating your network and are able to take better advantage of all of the features and benefits that Wi-Fi 6 provides.

Features :

OFDMA

The Cisco Catalyst9120AX Dubai features Uplink/Downlink Orthogonal Frequency Division Multiple Access (OFDMA), a technology borrowed from the mobile phone industry. OFDMA vastly improves upon the existing OFDM technology used in Wi-Fi APs. It allows multiple clients to share Wi-Fi channels. This feature can relieve congestion in crowded offices as 802.11 ax stations need not wait to get access to a full channel and instead share the channel with others and get things done.

OFDMA can make the whole WLAN efficient as clients devices with smaller loads that form the bulk of wireless communications can quickly transmit data. Though this feature can only be fully utilized in an environment having only 802.11ax clients, legacy clients can also experience an upside as the air will clear out quickly due to efficient communications happening in 802.11ax ecosystem.

MU-MIMO

Uplink(802.11ax)/Downlink MU-MIMO (2 streams per radio, total 4 streams) helps the AP to communicate with multiple clients simultaneously. This helps the stations to get quick access to the Cisco Catalyst9120AX Dubai, thereby increasing the number of clients that can be served by an AP. This feature generally improves airtime efficiency and speed for all the clients.

1024 QAM

The Cisco Catalyst9120AX Dubai Wi-Fi 6 AP can support 1024 QAM, which means faster data communications than currently possible. But to achieve such speeds, noise free environments will be needed along with closer ranges between access points and clients. Such requirements make it practically impossible to achieve the stated speeds in crowded environments that need constant Wi-Fi signal management.

BSS Coloring

This Cisco Catalyst9120AX Dubai wall plate AP supports BSS Coloring feature of the Wi-Fi 6 standard. BSS Coloring feature has been carried forward from the 802.11ah “Wi-Fi HaLow” standard and it identifies each access point in a WLAN with a unique identifier called ‘color’. This helps client stations to safely ignore communications in neighboring access points with a different color and below a threshold power level, and keep transmitting. This speeds up communications as clients need not stop data transfers to access points due to transmissions happening else where in the WLAN network in the same channel. This greatly helps to overcome limitations posed on wireless communications by existing co-channel interference safe guards.

Target Wake Time

Target Wake Time is another feature inspired from the 802.11ah IoT standard. This feature helps the Cisco Wi-Fi Dubai to wake up clients based on a pre-negotiated time interval to receive data. The clients can sleep during other times, helping them to save battery. This feature can greatly help customers choosing this access point for IoT applications.

Technical Specs

Description Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4×4 :4 MIMO, E Domain
Software
  • Cisco Unified Wireless Network Software Release 8.9.x or later
  • Cisco IOS  XE Software Release 16.11 with AP Device Pack, or later
Supported wireless LAN controllers
  • Cisco Catalyst 9800 Series Wireless Controllers
  • Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities
  • 4×4 MIMO with four spatial streams
  • Maximal Ratio Combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
  • Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic Shift Diversity (CSD) support
802.11ac
  • 4×4 downlink MU-MIMO with four spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, 80-, and 160-MHz channels
  • PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
  • Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 DFS
  • CSD support
802.11ax
  • 4×4 downlink MU-MIMO with four spatial streams
  • Uplink/downlink OFDMA
  • TWT
  • BSS coloring
  • MRC
  • 802.11ax beamforming
  • 20-, 40-, 80-, and 160-MHz channels
  • PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
  • Packet aggregation : A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 DFS
  • CSD support
Integrated antenna Flexible radio (either on 2.4GHz or on 5GHz)

  • 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
  • 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth

Dedicated 5GHz radio

5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

External antenna (sold separately)
  • Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna
  • Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
  • Supports Self-Identifiable Antennas (SIA) on one RP-TNC port
Smart Antenna Connector
  • Available on the 9120E and on the 9120P only
  • Compact multi RF connector with DART interface
  • Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector
  • Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio
Interfaces
  • 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
  • Management console port (RJ-45)
  • USB 2.0 @ 3.75W (enabled via future software)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H) Access point (without mounting brackets) : C9120I : 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm)
Input power requirements
  • 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE )
  • Cisco power injector, AIR-PWRINJ6=
  • 802.3af PoE
  • Cisco power injector, AIR-PWRINJ5= (Note : This injector supports only 802.3af)
Environmental Cisco Catalyst 9120AXI

  • Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
  • Non-operating (storage) altitude test : 25˚C, 15,000 ft.
  • Operating temperature : 32° to 122°F (0° to 50°C)
  • Operating humidity : 10% to 90% (noncondensing)
  • Operating altitude test : 40˚C, 9843 ft.
System memory
  • 2048 MB DRAM
  • 1024 MB flash
Available transmit power settings 2.4 GHz

  • 23 dBm (200 mW)
  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
  • -1dBm (0.79mW)
  • -4dBm(0.39mW)

5 GHz

  • 26 dBm (400 mW)
  • 23 dBm (200 mW)
  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
  • -1dBm (0.79mW)
Frequency band and 20-MHz operating channels E (E regulatory domain) :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
