Cisco Aironet1815i Dubai

The Cisco Aironet1815i Dubai extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

Description

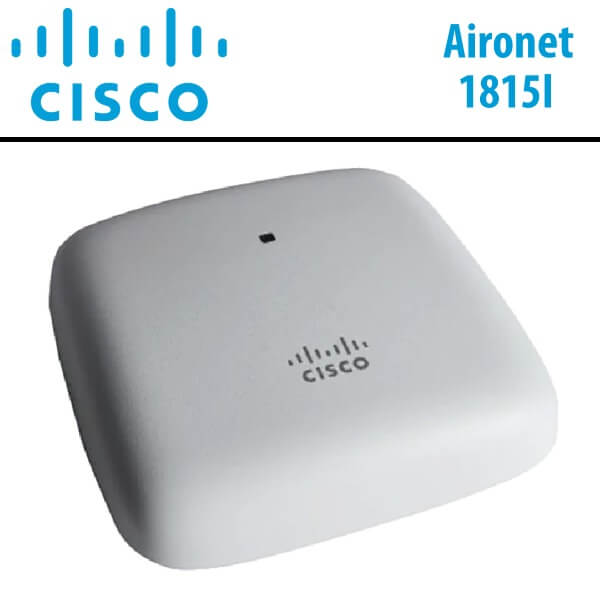

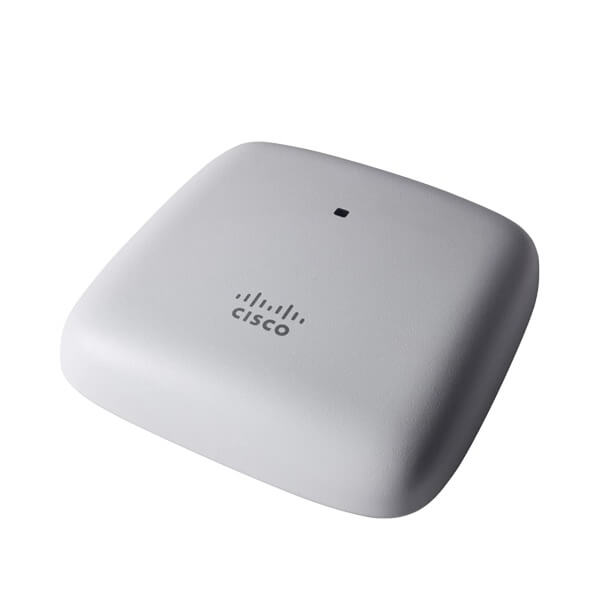

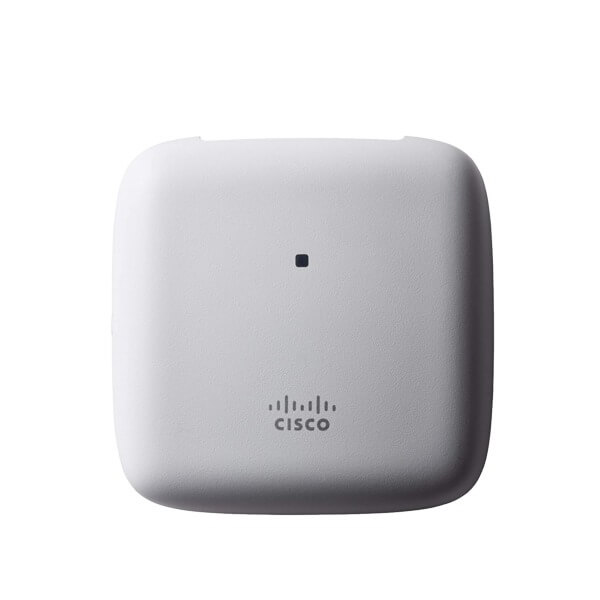

Cisco Aironet1815i Access Point Dubai

The Cisco Aironet1815i Dubai delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 (Figure 1). It also meets the growing requirements of wireless networks by delivering a better user experience.

The Cisco Aironet1815i Dubai extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

By adhering to the 802.11ac Wave 2 standard, the 1815i offers a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

Features:

Increased wireless performance

The Cisco Aironet1815i Dubai access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

The Cisco Aironet1815i Dubai allows wired access via a single RJ-45 10/100/1000 auto-detection port. It supports full operation modes using PoE 802.3af power.

Mounting

These sleek access points with a small form factor are designed with flexible mounting options in mind. You can mount them directly on the ceiling or a wall. They are also easy to install.

MU-MIMO-

Multiuser (MU) Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).

802.11ac Wave 2 with 2×2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.

Cisco Mobility Express solution

Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1815i to be deployed on networks without a physical controller.

Integrated Bluetooth 4.1

Integrated Bluetooth Low-Energy (BLE) 4.1 radio for location and asset tracking (future availability).

Specifications

General
Device Type Wireless access point
Ruggedized Design Indoor
Width 5.9 in
Depth 5.9 in
Height 1.3 in
Weight 14.11 oz
Localization Colombia, Venezuela, Canada, Chile, Bolivia, Uruguay, Peru, Paraguay, Ecuador, Costa Rica, El Salvador
Processor / Memory / Storage
Processors Installed 710 MHz
RAM 1 GB
Flash Memory 256 MB
Expansion / Connectivity
Interfaces
  • 1 x 1000Base-T (PoE) – RJ-45
  • 1 x console – RJ-45
Power
Power Over Ethernet (PoE) Supported PoE
Power Consumption Operational 8.3 Watt
Antenna
Antenna Internal
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 1 Gbps
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz, 5 GHz
Status Indicators Status
Features VLAN support, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Dynamic Frequency Selection (DFS)
Encryption Algorithm AES, TLS, PEAP, TTLS, WPA, WPA2
Authentication Method RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.3at, Bluetooth 4.1, IEEE 802.11r, IEEE 802.11ac Wave 2
Manufacturer Warranty
Service & Support Limited warranty – advance hardware replacement – lifetime – response time: 10 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Miscellaneous
Included Accessories Mounting brackets, Torx security screw
Compliant Standards VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, FCC, AES, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EMI, EN 300 328, RSS-247, EN 301 893, AAA, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
