Cisco Catalyst9105AXW Dubai

The Cisco Catalyst9105AXW Dubai features Uplink/Downlink Orthogonal Frequency Division Multiple Access (OFDMA), a technology borrowed from the mobile phone industry.

Description

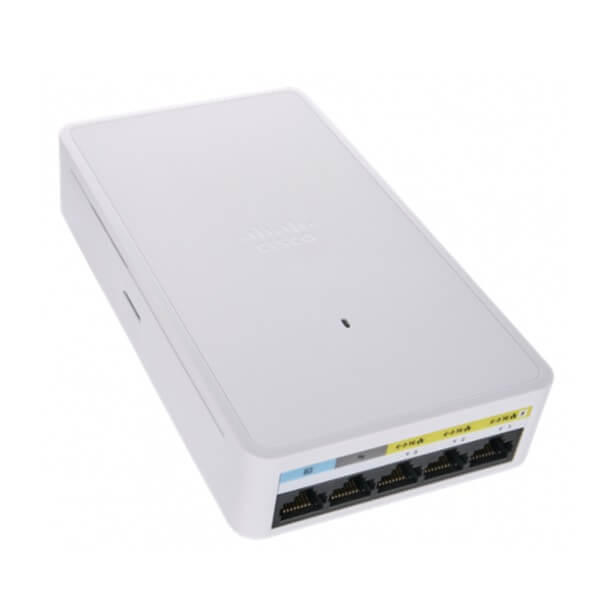

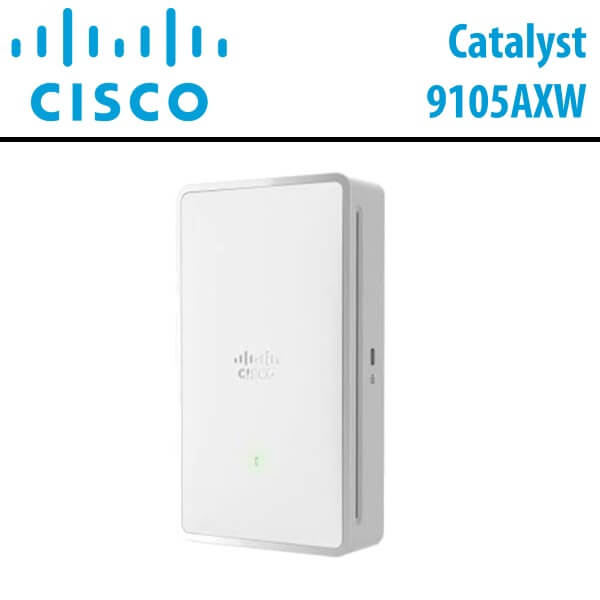

Cisco Catalyst9105AXW Access Point Dubai

Cisco Catalyst9105AXW Dubai is a powerful access point that enables you to secure remote workers or the micro-office”. With 2×2 :2 dual band radios, the access point offers easy deployment & lighter installations for remote workers, hospitality, small offices and  that want next-gen features from a top manufacturer but within manageable budgets.

WiFi 6 or 802.11ax is a “High Efficiency” standard intended to improve the efficiency of Wi-Fi and make it more reliable and stable for WiFi communications. Our in-depth article on the top exciting WiFi 6 features can be referred for further understanding of 802.11ax WiFi 6 technology. Cisco Catalyst9105AXW Dubai features 802.11ax WiFi 6 standard (Wi-Fi 6 Certified, as per Cisco Website) and also extends support to client stations using previous legacy standards.

Features :

OFDMA

The Cisco Catalyst9105AXW Dubai features Uplink/Downlink Orthogonal Frequency Division Multiple Access (OFDMA), a technology borrowed from the mobile phone industry. OFDMA vastly improves upon the existing OFDM technology used in Wi-Fi APs. It allows multiple clients to share Wi-Fi channels. This feature can relieve congestion in crowded offices as 802.11 ax stations need not wait to get access to a full channel and instead share the channel with others and get things done.

OFDMA can make the whole WLAN efficient as clients devices with smaller loads that form the bulk of wireless communications can quickly transmit data. Though this feature can only be fully utilized in an environment having only 802.11ax clients, legacy clients can also experience an upside as the air will clear out quickly due to efficient communications happening in 802.11ax ecosystem.

MU-MIMO

Uplink(802.11ax)/Downlink MU-MIMO (2 streams per radio, total 4 streams) helps the AP to communicate with multiple clients simultaneously. This helps the stations to get quick access to the Cisco Catalyst9105AXW Dubai, thereby increasing the number of clients that can be served by an AP. This feature generally improves airtime efficiency and speed for all the clients.

1024 QAM

The Cisco Catalyst9105AXW Dubai Wi-Fi 6 AP can support 1024 QAM, which means faster data communications than currently possible. But to achieve such speeds, noise free environments will be needed along with closer ranges between access points and clients. Such requirements make it practically impossible to achieve the stated speeds in crowded environments that need constant Wi-Fi signal management.

BSS Coloring

This Cisco Catalyst9105AXW Dubai wall plate AP supports BSS Coloring feature of the Wi-Fi 6 standard. BSS Coloring feature has been carried forward from the 802.11ah “Wi-Fi HaLow” standard and it identifies each access point in a WLAN with a unique identifier called ‘color’. This helps client stations to safely ignore communications in neighboring access points with a different color and below a threshold power level, and keep transmitting. This speeds up communications as clients need not stop data transfers to access points due to transmissions happening else where in the WLAN network in the same channel. This greatly helps to overcome limitations posed on wireless communications by existing co-channel interference safe guards.

Target Wake Time

Target Wake Time is another feature inspired from the 802.11ah IoT standard. This feature helps the Cisco Wi-Fi Dubai to wake up clients based on a pre-negotiated time interval to receive data. The clients can sleep during other times, helping them to save battery. This feature can greatly help customers choosing this access point for IoT applications.

Apple iOS Fast Lane

This feature, developed from the partnership between Cisco and Apple, helps iOS 10+ applications get priority in Wi-Fi communications. This provides better service levels to end users having Apple iOS products. This can help hospitality units using Cisco Catalyst9105AXW Dubai wall plate AP to provide better Wi-Fi connectivity to customers using Apple devices and delight them.

Low Power Consumption

This light weight Cisco Catalyst9105AXW Dubai draws just 13W of power, which is one of the lowest consumption levels seen in enterprise grade access points. Thus, 802.3af PoE supply is enough to run this device when there are no other devices powered through its USB or LAN port.

IoT Capabilities

This Cisco Wi-Fi Dubai AP has a dedicated on-board radio to support BLE 5.0 stations for IoT . This eliminates the need to deploy additional infrastructure for certain IoT services. It can be useful in environments where IoT need to be implemented in a cost effective way. The AP also provides container support for IoT applications.

WPA3 security and OEAP

WPA3 is the latest security standard approved by Wi-Fi Alliance for keeping Wi-Fi communications secure. WPA3 tackles the shortcomings of its predecessor WPA2 in encrypting data transfers and has been in use since 2018. WPA3 was a major update to Wi-Fi security after 14 years since WPA2 was launched in 2004.

Also this Cisco Wi-Fi Dubai can be operated in OEAP mode (Office Extend Access Point) for remote workers to securely connect with office network. This should be especially useful in the current COVID 19 pandemic situation where work from home has become the norm.

Technical Specs

Radio Hardware
  • 2.4 GHz Radio : (2×2 :2)
  • 5 GHz Radio : (2×2 :2)
  • BLE 5 Radio
Wireless Feature Concurrent Dual Band (2.4 GHz/5 Ghz)
IoT Support Bluetooth BLE 5.0, Container support for IoT applications
Data Speed Upto 1.488 Gbps (2.4 GHz & 5 GHz combined)
Resource Utilization OFDMA, MU-MIMO (Uplink(802.11ax)/Downlink), BSS Coloring
User Experience iOS Fast Lane, Wi-Fi Agile Multiband™, WMM®
Interference Handling Transmit Beamforming
Security WPA3, WPA2, Wi-Fi Enhanced Open™, OEAP (OfficeExtend Access Point)
AP Management Virtual Wireless Controller, Hardware controllers Catalyst 9800, 3504, 5520, 8540, Cisco DNA Support
Ethernet Ports 1×2.5G Uplink Ethernet Port (PoE); 3X1G Downlink Ethernet Ports (LAN1 supports 10.5W)
Other Ports
  • 1xUSB 2.0 port Type A,
  • 1xRJ45 Passthru Port,
  • 1xRJ45 Console Port
Antenna Internal
Power-up Options
  • 802.3af (PoE) – USB & LAN1 disabled ;
  • 802.3at (PoE+) – USB or LAN1 disabled
Max Power Consumption
  • 13W-802.3af,
  • 18.5W-802.3at with USB (4.5W)
  • 25.5W-802.3at with LAN1 @ 10.5W
Green Features (Energy Saving) Target Wake Time (TWT), WMM® – Power Save
Certified Wi-Fi Standards Wi-Fi 6 certified (As per Cisco Website)
Safety Compliance UL 2043, UL/EN/IEC 60950-1, UL/CUL/EN/IEC 62368-1
Manufacturer Quote “Specifically designed to be mounted to the wall and is ideal for hospitality, residence halls and other multi-dwelling units”
