Cisco Aironet1815m Dubai

Rating

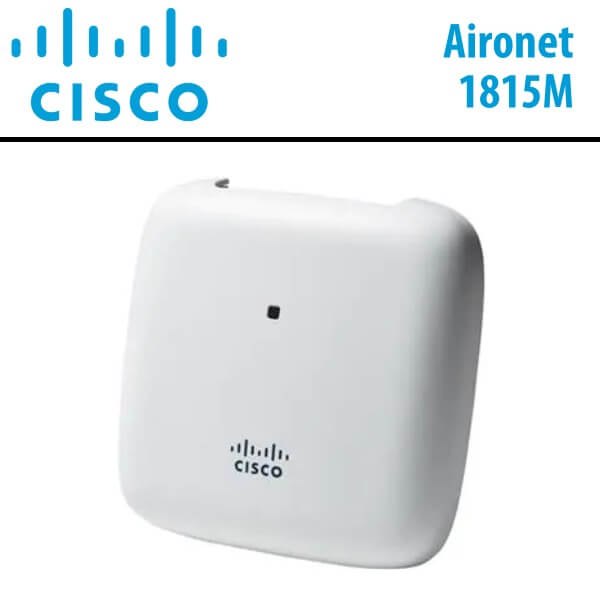

Cisco Aironet1815m Dubai

The Cisco Aironet1815m Dubai Series extends support to a new generation of Wi-Fi clients, such as: smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

Description

Cisco Aironet1815m Access Point Dubai

With more transmit power than the other access points in its family, the Cisco Aironet1815m Dubai supports a larger coverage area with fewer access points. In addition, the 1815m delivers industry-leading wireless performance with support for the latest Wi-Fi standard, the IEEE’s new 802.11ac Wave 2 standard. The Cisco Aironet1815m Dubai Series extends support to a new generation of Wi-Fi clients, such as: smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

Features:

Higher Tx power-With more than 3 dB (twice the transmit power) than the 1815i, the Cisco Aironet1815m Dubai can penetrate walls and doors, making it ideal for deployment in hotels, dorm rooms, or other dense building locations.

MU-MIMO-Multiuser (MU) multiple-input, multiple-output (MU-MIMO) allows simultaneous data transmission of data to multiple 802.11ac Wave 2–capable clients to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This transmission was typically referred to as single-user MIMO (SU-MIMO).

Cisco Mobility Express Solution-Flexible deployment mode through the Mobility Express Solution is ideal for small to medium-sized deployments that require 50 or fewer access points. Easy setup allows deployment of the Cisco Aironet1815m Dubai Series on networks without a physical controller.

Technical Specs

General
Device Type Wireless access point
Width 5.9 in
Depth 5.9 in
Height 1.3 in
Weight 16.22 oz
Localization United States
Processor / Memory / Storage
Processors Installed 710 MHz
RAM 1 GB
Flash Memory 256 MB
Expansion / Connectivity
Interfaces

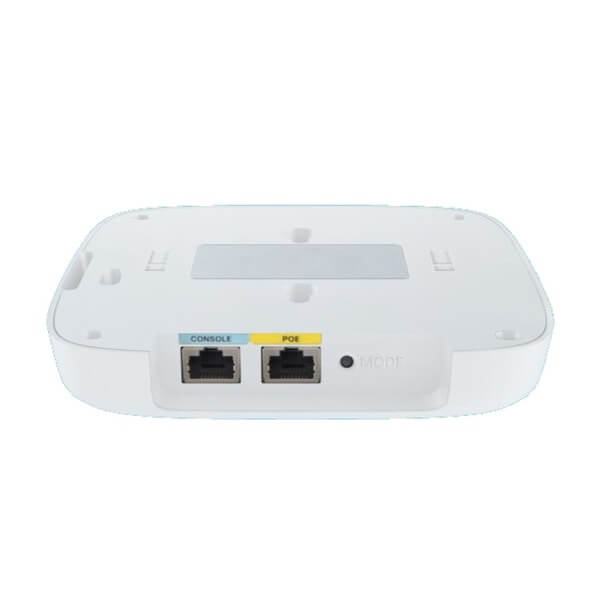

  • 1 x 1000Base-T (PoE+) – RJ-45
  • 1 x console – RJ-45
Power
Power Over Ethernet (PoE) Supported PoE+
Power Consumption Operational 12.5 Watt
Antenna
Antenna Internal
Software / System Requirements
OS Provided Cisco Mobility Express
Networking
Form Factor External
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz, 5 GHz
Status Indicators Port status, boot state, error, status
Features MAC address filtering, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, Maximum Ratio Combining (MRC), security lock slot (cable lock sold separately), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS)
Encryption Algorithm AES, TLS, PEAP, TTLS, WPA, WPA2
Authentication Method RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, Bluetooth 4.1, IEEE 802.11r, IEEE 802.11ac Wave 2
Manufacturer Warranty
Service & Support Limited warranty – advance hardware replacement – lifetime – response time: 10 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Miscallaneous
Included Accessories Mounting brackets, Torx security screw
Compliant Standards VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
