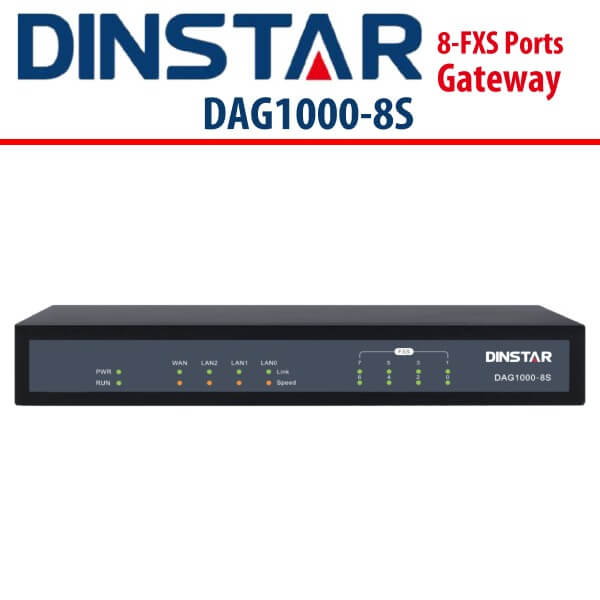

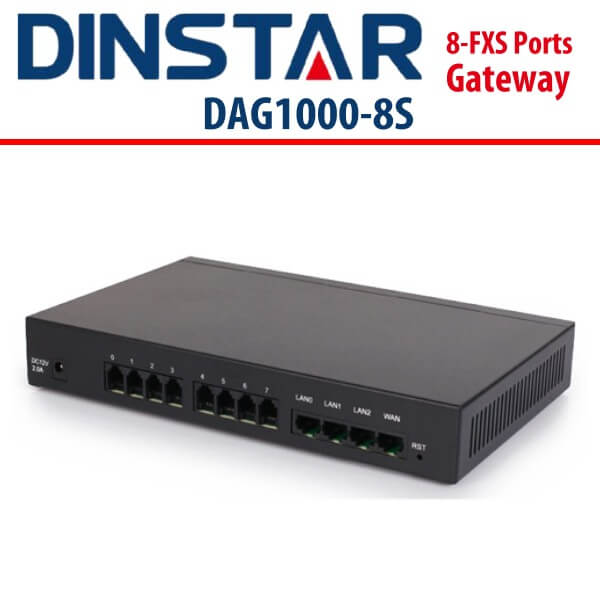

Dinstar DAG1000-8S Dubai

instar DAG1000-8S Dubai is a multi-functional Analog VoIP Gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems.

Category:

Description

Dinstar DAG1000-8S Dubai

Dinstar DAG1000-8S Dubai is a multi-functional Analog VoIP Gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The device offers 8 FXS ports, fax over IP and flexible dial plans. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. Connected analog phone, fax, PBX with standard voice interface and provide quality voice service. Dinstar DAG1000-8S Dubai VoIP access gateway uses standard SIP protocol and compatible with Leading IMS/NGN platform, IPPBX and SIP servers.

Features:

  • Support SIP/MGCP
  • Primary/Backup SIP Servers
  • Flexible Routing and Manipulation
  • Support Modem/POS
  • Elastix/Broadsoft Certification
  • Support IPv4 and IPv6
  • Data/ Voice/ Management VLAN
  • Build-in Firewall and Access Rules
  • SNMP/TR069/Provision
  • Cloud-based Management System and Bandwidth Optimization

Dinstar DAG1000-8S – Technical Specifications

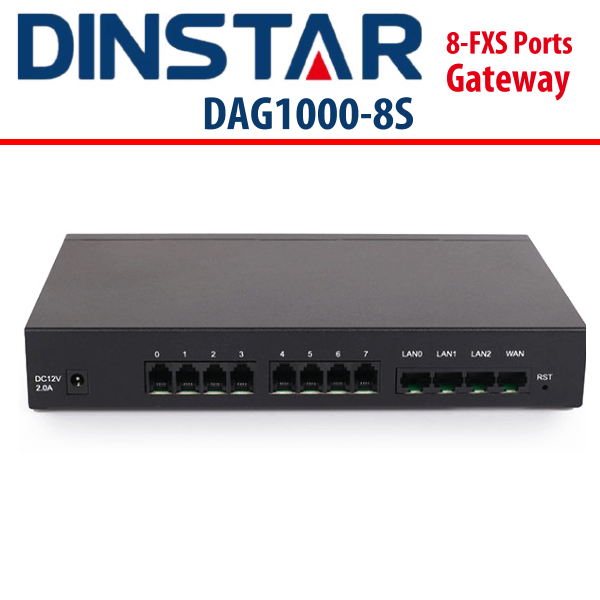

Physical Interfaces

  • Phone Interface: 8FXS, RJ-11
  • Ethernet Interface: 4* RJ-45 10/100Mbps, RJ-45

Voice & Fax

  • G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Hook Flash
  • Programmable Gain Control
  • T.38/Pass-through, up to 14.4kbps
  • Modem/POS
  • DTMF mode: Signal/RFC2833/INBAND

FXS Port

  • Connector: RJ11
  • Dial Mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  • Caller ID: DTMF/FSK
  • Max Cable Length: 5KM
  • Reversed Polarity

Protocol

  • SIP V2.0 (RFC 3261,3262,3264)
  • IMS/3GPP
  • SDP (RFC 2327)
  • REFER (RFC 3515)
  • RTP/RTCP (RFC 1889,1890)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • TFTP/HTTP/HTTPS
  • DNS/DNS SRV (RFC 1706/RFC 2782)
  • VLAN 802.1P/802.1Q

Supplement Service

  • Call Waiting
  • Blind  Transfer
  • Attend Transfer
  • Call Pickup
  • Call Forward on Busy
  • Call Forward on No Reply
  • Unconditional Call Forward
  • Hotline
  • Call Hold
  • DND
  • 3-way conference
  • Voicemail

Call & Route

  • Port Group
  • IP Trunk
  • Primary and Secondary SIP Account
  • 32 Inbound/Outbound Routing
  • Number Manipulation
  • Digitmap

Network Features

  • NAT (Rout and Bridge)
  • Static IP, PPPoE, DHCP Client
  • DHCP Server
  • MAC Address Clone
  • DMZ, Static routing
  • Built-in Firewall
  • Static/dynamic ARP
  • QoS, Traffic Shaping
  • Voice/Data/Management Vlan

Maintain & Upgrade

  • SNMP/TR069
  • Auto Provisioning
  • Web/Telnet
  • Configuration Backup/Restore
  • Firmware Upgrade via WEB/TFTP
  • Syslog and CDR
  • Access Rule List
  • Network Capture
  • Outward Test(GR909)
  • Automatic Time Synchronization
  • IVR local Maintenance
  • Cloud-based Management

Environment

  • Power Supply: 100 – 240V, 50-60Hz
    • Output: 12VDC,2A
  • Power Consumption:  18W
  • Temperature:
    • (Operation): -10 ?  ~ 45 ?
    • (Storage):   -20 ? ~80 ?
  • Humidity: 10% – 90%  No condensation

Dimension & Weight

  • 240(L)×154(W)×37(H)mm 1kg

Homologation

  • CE,FCC
  • Elastix  / Broadsoft
