Description

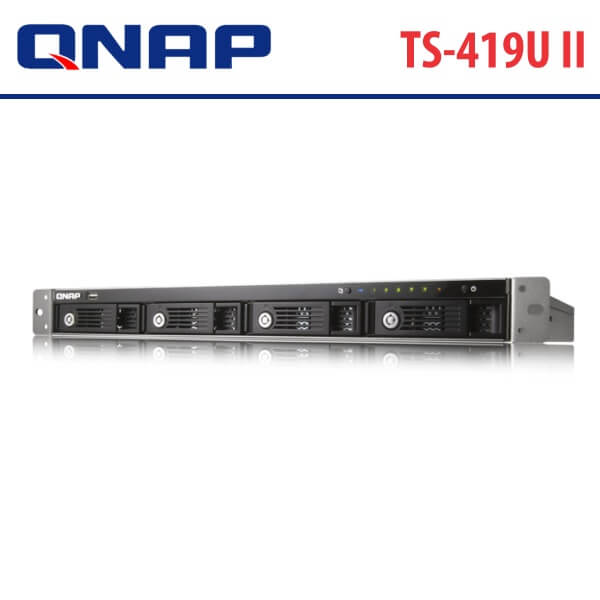

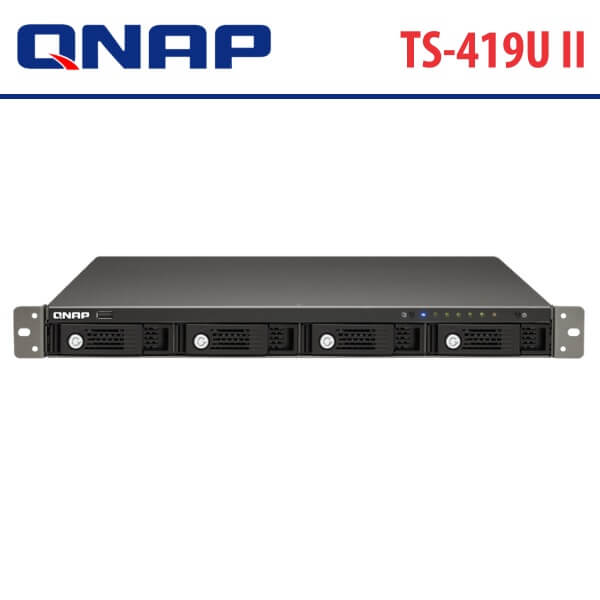

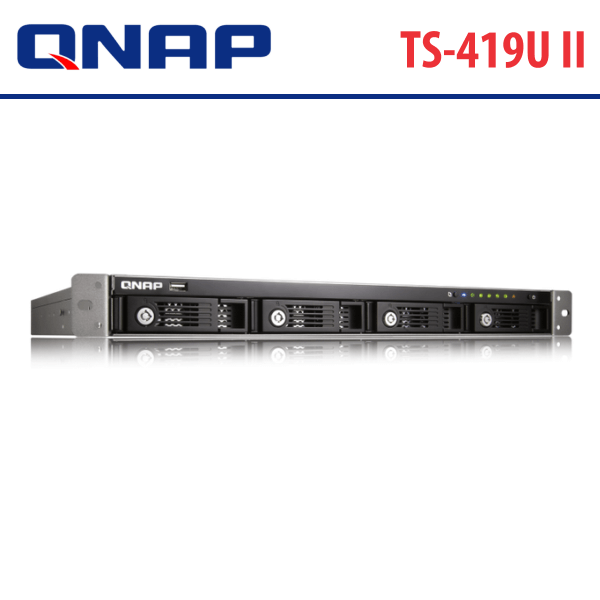

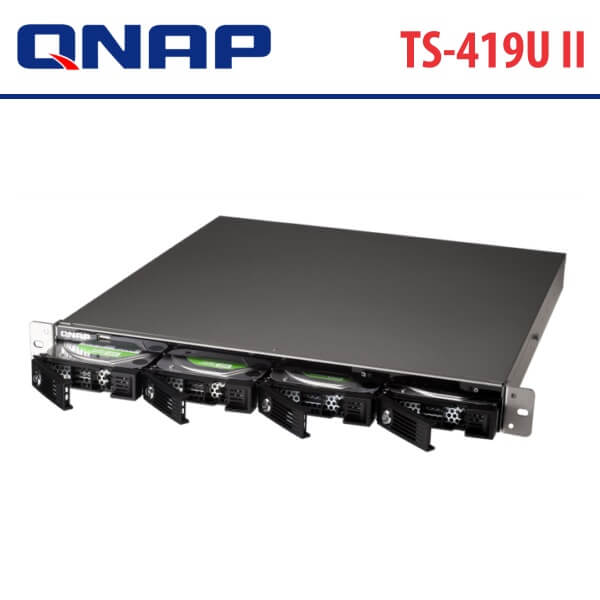

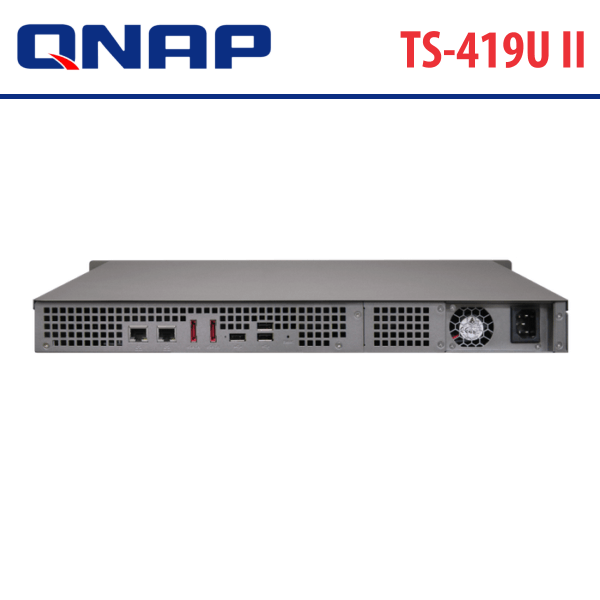

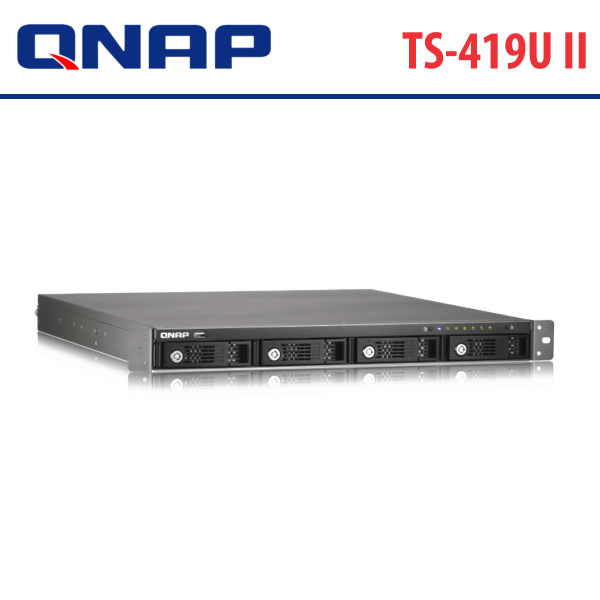

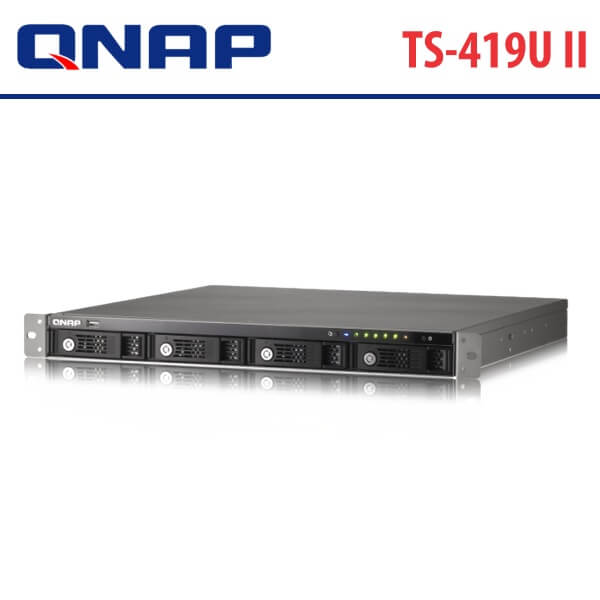

Qnap TS-419U II Dubai
The Qnap TS-419U II Dubai 4 Bay Turbo NAS Server is an all-in-one rack mount network attached storage (NAS). It is a server optimized for small and medium businesses looking for an affordable and high performance network storage solution. This NAS can hold up to 4 hard drives and is designed to be easily installed in the server room and configured with up to 12TB of storage capacity. It is an ideal solution for centralized data backup, cross-platform file sharing, iSCSI/IP-SAN storage combo solution and a number of business applications. Moreover, the NAS offers low power consumption, reliable system operations and capacity expandability.
Features:
-
Large Capacity Storage and File Sharing
-
Backup Center for Business
-
NAS, iSCSI/ IP-SAN Storage Combo Solution for Server Virtualization
-
iSCSI and Virtualization Deployment
-
Feature-rich Business Applications
-
Easily-deployed Private Cloud Storage
-
Superior Performance
-
Energy-efficient & Eco-friendly
Qnap TS-419U II Dubai Specs
| Hardware | |
| CPU | Marvell 2.0 GHz |
| DRAM | 512 MB DDR III RAM |
| Flash Memory | 16 MB |
| Hard Disk Drive | 4x 2.5″ (63.50 mm) or 3.5″ (88.90 mm) SATA I/II HDD |
| Hard Disk Tray | 4x Hot-swappable and lockable tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |
| LED Indicators | USB, Status, HDD 1, HDD 2, HDD 3, HDD 4, LAN |
| USB | 4x USB 2.0 port (front: 1; back: 3) Supports USB printer, disk, pen drive, USB hub, USB UPS and more |
| eSATA | 2 x eSATA ports (Back) |
| Buttons | System: Power button, USB one-touch-backup button, reset button |
| Supply Type | System warning |
| Form Factor | Rackmount |
| Power Consumption | Sleep mode: 12 W In Operation: 33 W (with 4x 500 GB HDD installed) |
| Power Supply | Input: 100-240 V AC, 50-60 Hz Output: 250 W |
| Fan | 2x 1.57″ (4 cm), 12 V DC quiet cooling fan |
| General | |
| Temperature | 32 to 104˚F (0 to 40˚C) |
| Humidity | 0-95% R.H. |
| Dimensions | 1.73 x 17.28 x 19.01″ (44 x 439 x 483 mm) |
| Weight | 14.77 lb (6.7 kg) |
| Software | |
| Operating System | QNAP Firmware v3.6 |
| Supported Operating System | •Microsoft Windows XP, Vista, 7 (32 or 64 bit), Server 2003 or 2008 R2 •Apple Mac OS X •Linux and Unix |
| Supported Web Browsers | •Internet Explorer 8, 9 •Firefox 8, 9, 10 •Safari 4, 5 •Google Chrome |
| Multilingual Support | Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| File System | •Internal HDD: EXT3, EXT4 •External HDD: EXT3, EXT4, NTFS, FAT32, HFS+ |
| Networking | •TCP/IP (IPv4 and IPv6: dual stack) •Dual Gigabit NICs with Jumbo Frame -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) •Service binding based on network interfaces •Virtual LAN (VLAN) •DHCP client, DHCP server •Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC •UPnP andbonjour discovery •USB Wi-Fi adapter support |
| Backup Solution | •Real-Time Remote Replication (RTRR) -Works as both RTRR server and client with bandwidth control -Real-time and scheduled backup -Encryption, compression, file filter and transfer rate limitation •Block-Level Remote Replication -Works as both Rsync server and client with bandwidth control -Encrypted replication between QNAP NAS servers •USB one touch backup (Import or Export) •Desktop backup by QNAP NetBak replicator for Windows •Apple Time Machine support with backup management •Data backup to multiple external storage devices •Data backup to Cloud Storage (Amazon S3, ElephantDrive and Symform) |
| Security | •IP Filter and policy-based automatic IP blocking •Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP •Encrypted Access: HTTPS, FTP with SSL/TLS (explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS servers (Rsync over SSH) •CIFS host access control for shared folders •Antivirus protection •Importable SSL certificate •Instant alert via email, SMS, instant messaging (Windows Live Messenger), buzzer and LCD panel |
| Disk Management | •Single Disk, JBOD, RAID 0, 1, 5, 5+Hot Spare, 6, 10 •Online RAID capacity expansion and online raid level migration •Bad block scan and hard drive S.M.A.R.T. •Global hot spare drive •RAID recovery •Bitmap support |
| iSCSI (IP SAN) | •iSCSI target -Multi-LUNs per target -Up to 256 targets/LUNs combined -Supports LUN mapping andmasking -Online LUN capacity expansion -Supports SPC-3 persistent reservation -Supports MPIO and MC/S •iSCSI LUN backup, one-time snapshot and restore •iSCSI connection and management by QNAP Finder (Windows) •Virtual disk drive (via iSCSI initiator) -Stack chaining master -Max.no. of virtual disk drives: 8 |
| Server Virtualization & Clustering | •Supports VMware vSphere •Supports Citrix XenServer •Supports Windows Server 2008 R2 Hyper-V and failover clustering |
| Power Management | •Wake on LAN •Internal hard drive standby mode •Scheduled power on/off (max. 15 settings) •Automatic power on after power recovery •USB and network UPS support with SNMP management |
| Access Rights Management | •User accounts management •User groups management •Network shares management •Batch users creation •Import/export users •User quota management •Subfolder permissions support for CIFS/SMB, AFP, FTP and web file manager |
| Domain Authentication Integration | •Microsoft Active Directory (AD) •LDAP server •LDAP client •Domain users login via CIFS/SMB, AFP, FTP and web file manager |
| MyCloudNAS Service | •Private Cloud Storage and sharing •Free host name registration (DDNS) •Auto router configuration (via UPnP) •MyCloudNAS connect for easy connection (Windows utility) |
| Storage Plug & Play | •Windows Software: QNAP finder •Create and map shared folders •Create and connect to iSCSI Target/LUN |
| Web Administration | •AJAX-based user interface •Smart fan control •Dynamic DNS (DDNS) •SNMP (v2 and v3) •Resource monitor •Network recycle bin for file deletion via CIFS/SMB and AFP •Comprehensive logs (events and connection) •Syslog client •Firmware live update •System settings backup and restore •Restore to factory default |
| Powerful All-in-one server | |
| File Server | •File sharing across Windows, Mac and Linux/UNIX •Shared folder aggregation (CIFS/SMB) •Web file manager -Supports ISO mounting -Direct file viewing via Google doc -Create and send download links for public file sharing with expiration time and password protection |
| FTP Server | •FTP over SSL/TLS (explicit) •Max.No. of Concurrent Connections: 256 •FXP supported •Passive FTP port range control •FTP bandwidth and connection control •Unicode support |
| Backup Server | •Remote replication server (over Rsync) •Real-Time Remote Replication to another QNAP NAS or FTP server •Apple Time Machine support •Windows Client Backup Application: QNAP NetBak replicator •Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve, Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more |
| Web Server | •HTTP/HTTPS connections •Supports WebDAV connection •Support virtual host (max.: 32) •Importable SSL certificate |
| Database Server | •Built-in MySQL server (v5.1.36) •Web-based management via phpMyAdmin (QPKG) |
| Print Server | •Max Number of Printers: 3 •Supports Internet printing protocol -Print job display and management -IP- and domain name based privilege control •Supports Apple Bonjour printing |
| Syslog Server | •Centralized log monitoring and archiving •Immediate email alerts •Supports log filtering |
| RADIUS Server | •Centralized account management and authentication for network access •Supports 802.1x security authentication •TFTP server with PXE booting (read-only) |
| VPN Server | •Secure Remote Access: PPTP and OpenVPN services •Remote access to other resources on local network •Max No. of Clients: 30 |
| iTunes Server | •Audio and video sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV) •Smart playlist for iTunes client (Windows and Mac OS) |
| UPnP Media Server | •Built-in TwonkyMedia server •Real-time and background photo transcoding •Supports UPnP media player such as PlayStation 3 and Xbox 360 •Supported format (The actual playback capabilities may vary depending on the UPnP client.) -Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC -Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP -Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB -Playlist: M3U, M3U8, WPL, PLS |
| Multimedia Station | •Supports photo, audio and video •Image slideshow and rotation •Automatic and scheduled thumbnail generation for easy browsing •Display Photo Details from EXIF: Date, exposure time, aperture and more •Display Audio Details from ID3 Tag: Album cover, title, artist, album and more •Access authority management •Multimedia (video and audio) streaming •Supports cooliris •Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk and Blogger) •Share photos by email •Supported Formats: •Photo – JPG/JPEG, GIF, PNG •Audio – MP3 •Video -Playback: FLV, MPEG-4 Video (H.264 + AAC) -Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV •QNAP Exclusive iPhone and Android App: QMobile |
| Photo Station | •Supported File Formats: -Photo: JPG/JPEG, GIF, PNG, BMP -Video: FLV, MPEG-4 Video (H.264 + AAC) •Image slideshow with background music •Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) •Photo sharing by email |
| Music Station | •Supported Audio Formats: -MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC •Local playback with USB speaker or sound card •Browse other UPnP media servers on local network •Internet radio (MP3) •Music alarm (up to 8 Alarms) •Playback control by QNAP Mobile App: QMobile music remote |
| Download Station | •PC-less BT, FTP, HTTP download (up to 500 tasks) •BT Download -Supports TCP/UDP tracker protocol -Scheduled download -Configurable port range -Bandwidth control -UPnP NAT port forwarding -RSS subscription and download (broadcatching) -Selectable download files •HTTP/ FTP Download -Configurable saving directory -Bulk download with wildcard settings -RapidShare download support •QNAP Download Management Software: QGet -For both Windows and Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN |
| Surveillance Station | •Supports IP cameras (sold separately) for network surveillance •Supports 1 Webcam via QPKG Add-on: QUSBCam |
| Antivirus | •Protection against the latest known viruses, trojans and other threats •Free virus databases update on manual or scheduled basis •Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled •Scanning •Email notification upon task completion or virus detection •Quarantines or deletes infected files |
| QPKG Center | •Expands application services by easy online installation •A wide variety of official and community QPKG* add-ons•Business -eyeOS -GLPI -Squid proxy server -Vtiger CRM •CMS -Gallery -Joomla -WordPress -Xoops •Communications -Asterisk -XMail -Xeams •Download -MLDonkey -NZBGet -pyLoad -SABnzbdplus -Transmission •Entertainment -IceStation -Plex media server -PS3 media server -Squeezebox server •Utilities -AjaXplorer -iStat -Optware IPKG -phpMyAdmin -Piwik •Miscellaneous -Java runtime environment -Mono -Python -QUSBCam -Tomcat |
Packaging Info
| Box Dimensions (LxWxH) | 24.5 x 26 x 7.2″ |
