Yealink MVC320 Teams Room System Dubai

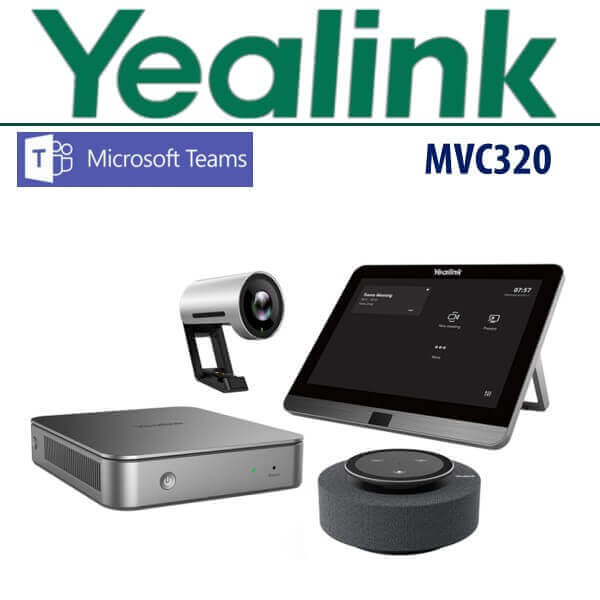

Yealink MVC320 Microsoft Teams room system Dubai features a wide field of view perfectly in the meeting screen specially designed for focus and small meeting rooms. Auto-framing and a 120° wide-angle lens enable the Yealink UVC30 to recognize and frame all participants of the meeting in the most appropriate view. The Yealink MVC320 Microsoft Teams Room system Dubai is a bundle video solution with MCore mini-PC, Yealink UVC30 4K camera, MSpeech speakerphone and touch panel, bringing everything you need to interact, connect, and collaborate with internal and external users seamlessly and intelligently



Description

Yealink MVC320 Teams Room System Dubai

The Yealink MVC320 Dubai includes a Yealink UVC30-Room ultra HD 4K camera and an MSpeech smart USB speakerphone to meet the requirements of focus and small meeting rooms. Thanks to the 4K resolution, all participants can enjoy a vivid Teams meeting experience. Supporting medium-size meeting spaces, the MSpeech speakerphone built-in three microphone matrix and 4W HD speakers deliver HD clarity and great voice pickup range. Its sleek design, full-duplex feature, and acoustic echo cancellation technologies keep your MTR system simple but effective. According to the unique characteristics of the video conferencing room, a high-performance mini-PC is specially released. In the design of mini-PC, it takes into account both aesthetics and practicability, fully integrating the cable management with itself to provide a flexible and reliable deployment solution for any meeting room. The MVC series features the native Microsoft Teams-tailored user interface that is easy to be operated with a close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join.

Yealink MVC320 Teams Room Features

Auto-framing & smart audio

Yealink UVC30-Room camera Dubai allows for the framing of all participants present at a meeting, freeing your hands and focusing on the meeting itself. Meanwhile, with the Yealink camera control, plug-in and camera preset, the electronic pan, tilt and zoom can be easily done in one step. Empowered with a 120° extra-large field of view, Yealink UVC30 supports 4K/30FPS ultra HD video calls that conduct business to capture everyone in the meeting room. As for the audio, the MSpeech speakerphone can provide the voice recognition feature of the Teams Rooms application, including voice transcription, real-time translation, and Cortana voice assistant, bringing users a smart and efficient video conferencing experience.

Native Microsoft Teams-tailored user interface, smooth conference experience

Native Microsoft Teams-tailored user interface offers a one-touch meeting join. Designed with the idea of multi-function all-in-one, the MTouch II touch panel allows you easily perform call control, camera control, content sharing and other functions. At the same time, MTouch has a built-in Human Motion Sensor that the conference system can automatically waken up and you can immediately start the conference.

Simple to deploy, easy to use

With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the same time, its all-in-one design with the feature of cable management ensures the stability of the wired connection, and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and the conference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.

Content sharing in real-time

The unique wireless content sharing solution provides participants with maximum flexibility, that a one-click content sharing can be simply realized by plugging into the WPP20 only. With a high resolution of 1080P / 30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C port or HDMI port.

Manage your devices remotely

This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices peripherals on this platform remotely.

Yealink MVC320 Teams Room Specifications

Preload

  • Windows 10 IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
  • Yeallink RoomConnect

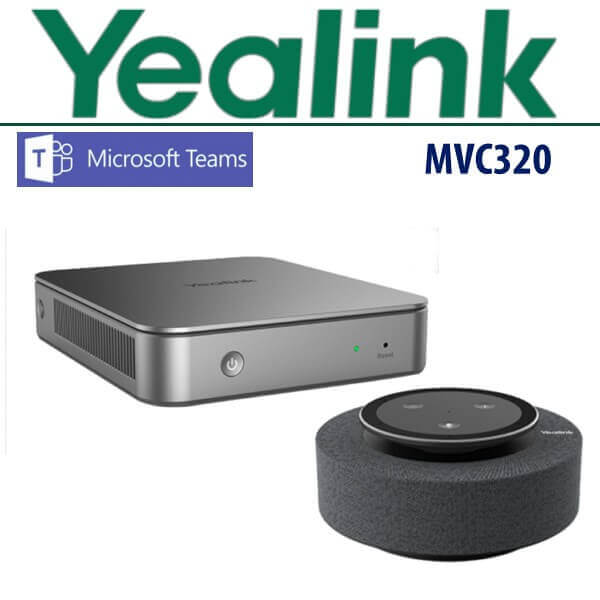

MCore Mini-PC

  • 8th-gen Intel® QUAD-CORE i5
  • Memory: 8GB (2 x 4GB)
  • Storage: 128GB SSD
  • 2 x HDMI video output with CEC supported
  • Bluetooth and Wi-Fi
  • 1x Yealink VCH port (RJ45), connect to MTouch II
  • 4 x USB3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot
  • Integrated cable management

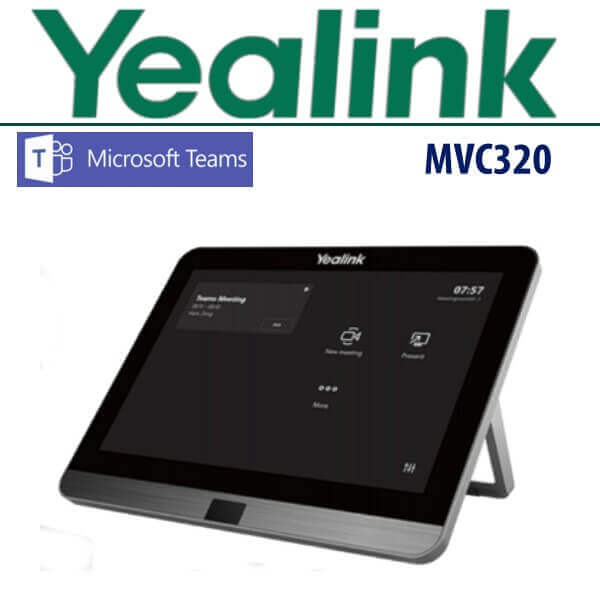

MTouch II touch panel

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28° ~ 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in Wi-Fi AP for Yealink wireless presentation device
  • HDMI/USB-C HD video input

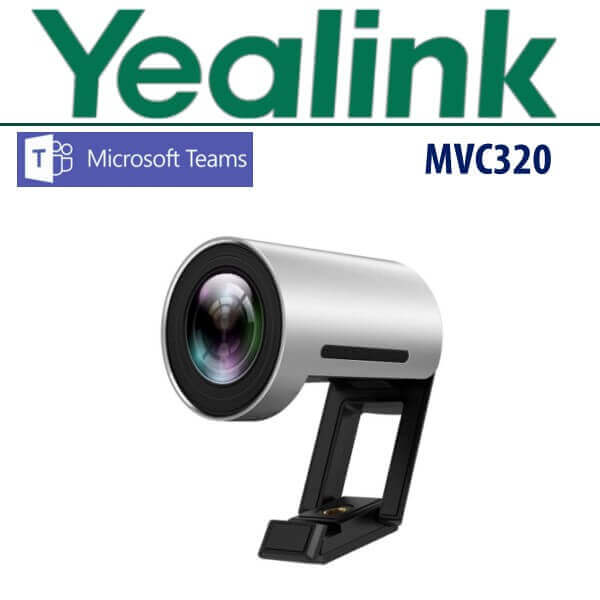

UVC30-Room 4K USB Camera

  • 4K video resolution
  • Maximum 4K/30FPS
  • 3x digital zoom
  • Field of view (diagonal): 120°
  • Auto-framing
  • Camera presets
  • 1 x 3m USB 2.0 cable

MSpeech smart USB speakerphone

  • 3 MEMS microphone array for HD voice pickup
  • 4W HD Speaker
  • 360° 20ft (6-meter) voice pickup range
  • Touch button
  • Full-duplex technology
  • Acoustic echo cancellation (AEC)

Package Features

  • N.W/CTN: 4.4 kg
  • G.W/CTN: 5.1 kg
  • Carton Meas: 360mm x 315mm x 290mm

Package Content

  • MCore Mini-PC
  • MTouch II touch panel
  • UVC30-Room 4K USB camera
  • MSpeech smart USB speakphone
