Cisco ASR1001 Dubai

Rating

Cisco ASR1001 Dubai

Running Cisco IOS XE Software, the Cisco ASR 1001-X shares a common operating system, feature set, and management and troubleshooting tools with the rest of Cisco ASR 1000 family.

Description

Cisco ASR1001 Aggregation Services Router Dubai

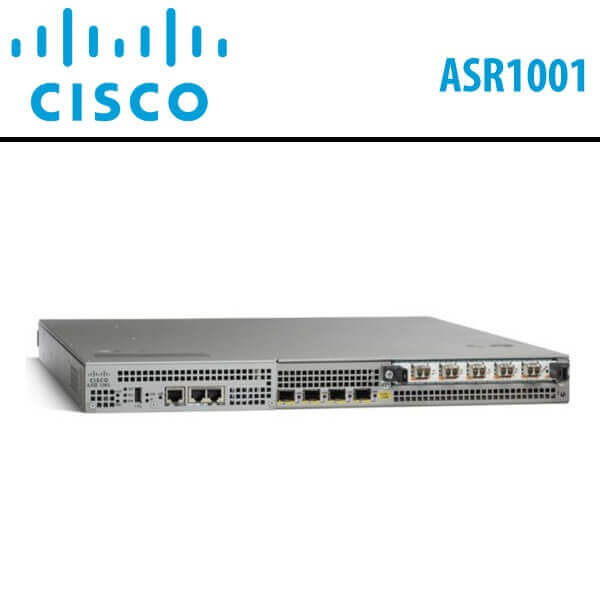

The Cisco ASR1001 Dubai is a 1-rack-unit (1RU) platform targeted towards the low to medium Enterprise and Managed Service Provider use cases. Its compact form factor has a built-in Route Processor, Embedded Services Processor (ESP) and Shared Port Adapter (SIP) Interface processor.

Running Cisco IOS XE Software, the Cisco ASR1001 Dubai shares a common operating system, feature set, and management and troubleshooting tools with the rest of Cisco ASR 1000 family.

Cisco ASR1001 Dubai is designed for high-end enterprise, data center, service provider edging network in order to handle explosive traffic through the network. It supports only software redundancy, and it is based on a Quad-core 2.13GHz processor with 4GB memory, 8GB flash memory, 1 SPA bay, SPA interface processor 10 (SIP10).

Features:

Investment Protection

  • Pay-as-you-grow forwarding thoughput is upgradable from 2.5 to 5,10, and 20 Gbps
  • Built-in 2 X 10 GE accelerates 1 GE to 10 GE transition without additional hardware
  • Expanded container app support is included for future virtual applications and services
  • The compact 1RU form factor increases rack space and reduces power and cooling costs

High-Performance Security

The Cisco ASR1001 Dubai includes:

  • High-performance security for crypto, firewall, and Network Address Translation (NAT) sessions
  • Robust deep packet inspection performance at high throughputs for Cisco Application, Visibility, and Control

Flexible Deployment

The Cisco ASR1001 Dubai provides Data Center Interconnect (DCI) Services to support Overlay Transport Virtualization (OTV), Virtual Extensible LAN (VXLAN), Locator/ID Separation Protocol (LISP) and Virtual Private LAN Services (VPLS).

Technical Specs

General Information
Category Routers
Description Cisco ASR 1001 – Router – rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor, 5Gbps
Manufacturer Cisco Systems
MSRP $43,150.50
UNSPSC 43222609
Main Specifications
Dimensions & Weight / Depth 47 cm
Dimensions & Weight / Height 4.3 cm
Dimensions & Weight / Width 43.9 cm
Header / Brand Cisco
Networking / Connectivity Technology Wired
Networking / Form Factor
  • Desktop
  • Rack-mountable
Networking / Type Router
OS Provided / Type Cisco IOS Advanced Enterprise Services
Packaged Quantity 1
RAM / Installed Size 4 GB
Dimensions & Weight
Depth 47 cm
Height 4.3 cm
Width 43.9 cm
Environmental Parameters
Humidity Range Operating 10 – 85%
Max Operating Temperature 40 °C
Min Operating Temperature 5 °C
Expansion / Connectivity
Expansion Slots 1 (total) / 0 (free) x expansion slot
Interfaces
  • Management : 1 x 10Base-T/100Base-TX – RJ-45
  • Management : 1 x console – RJ-45
  • Management : 1 x auxiliary – RJ-45
  • USB : 1 x
  • 4 x SFP (mini-GBIC)
General
Compliant Standards CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386
Connectivity Technology Wired
Device Type Router – with Cisco ASR 1000 Series Embedded Services Processor, 5Gbps
Enclosure Type Desktop, rack-mountable
Features Firewall protection, NAT support, VPN support, Intrusion Prevention System (IPS), Access Control List (ACL) support, Quality of Service (QoS)
Performance
  • Bandwidth : 2.5 Gbps
  • VPN throughput (IPSec) : 1.8 Gbps
Processor Core Duo
RAM 4 GB (installed) / 8 GB (max)
Power
Installed Qty 2 (installed) / 2 (max)
Power Device Internal power supply
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS Advanced Enterprise Services
