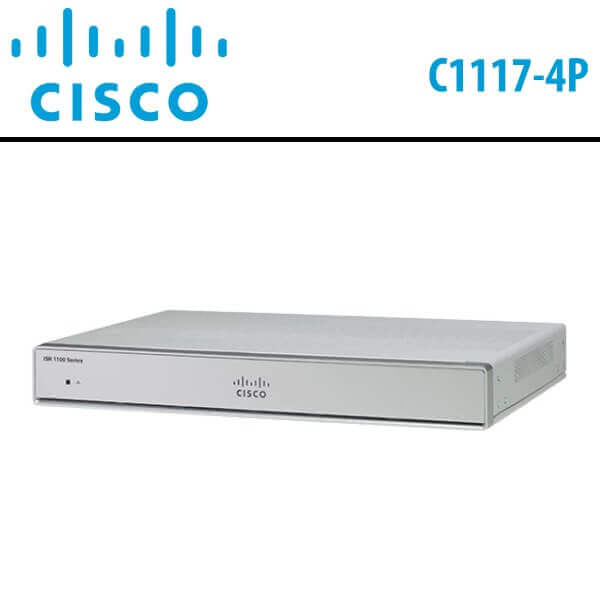

Cisco C1117-4P Dubai

The C1117-4P is the ISR 1100 4 Ports DSL Annex A/M and GE WAN Router, delivering 1 GE/SFP Combo WAN port and 4GE LAN ports.

Description

Cisco C1117-4P Integrated Services Router Dubai

Cisco C1117-4P Dubai Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1117-4P is the ISR 1100 4 Ports DSL Annex A/M and GE WAN Router, delivering 1 GE/SFP Combo WAN port and 4GE LAN ports.

The Cisco C1117-4P Dubai Integrated Services Router with Cisco IOS XE Software combines wired and wireless Internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation, and low power consumption are critical factors.

Features:

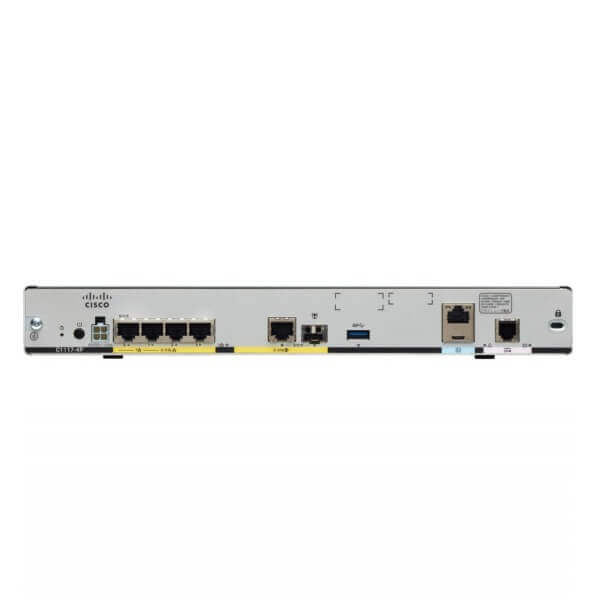

  • PORT COUNT: 4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)
  • CONNECTIVITY: VA-DSL (Annex A) WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
  • SECURITY: Multi-layer, robust security, and high-performance VPNs encrypt all data from the WAN edge to the cloud
  • PERFORMANCE: Business router designed for broadband network speeds while running secure, concurrent data, voice, video, and wireless services

Quick Specs

Model C1117-4P
WAN GE N/A
WAN GE/SFP combo 1
ADSL2/VDSL2+ 1 VA-DSL

(Annex A)

LTE Advanced (CAT6) N/A
802.11ac N/A
LAN GE 4
PoE 2
PoE+ 1
Integrated USB 3.0 AUX/console Yes
Dimensions (H x W x D) 1.75 x 12.7 x 9.03 in.

(42 x 323 x 230mm) (includes rubber feet)

Weight with AC PS (w/o modules) 5.5 Lbs. (2.5 kg) maximum
