Cisco Catalyst2960-24S Dubai

Rating

Cisco Catalyst2960-24S Dubai

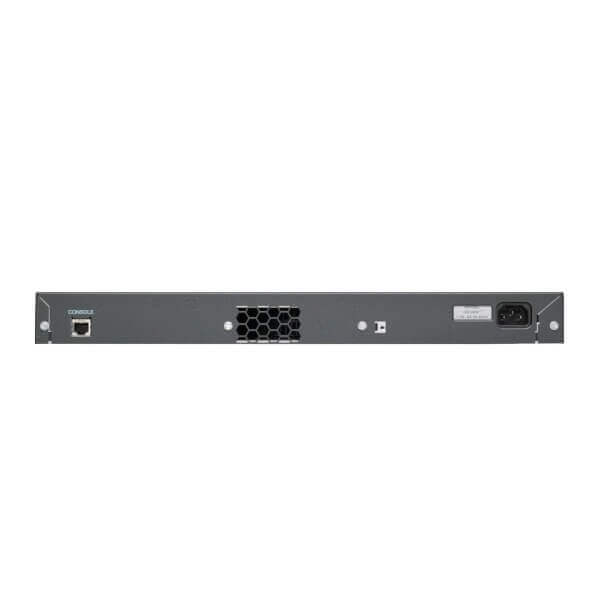

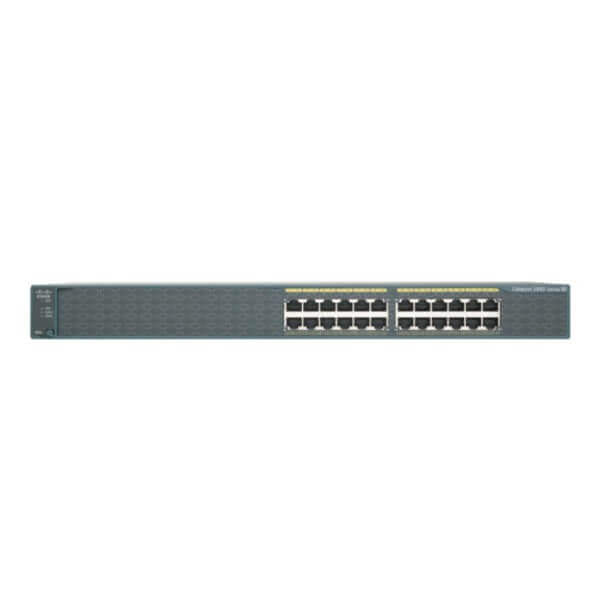

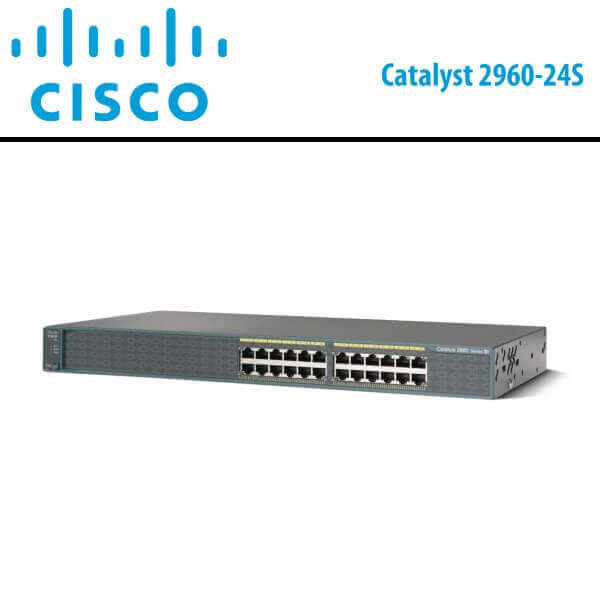

The Cisco Catalyst2960-24S Dubai Switch is a fixed-configuration Fast Ethernet switches that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications.

Category:

Description

Cisco Catalyst2960-24S Network Switch Dubai

The Cisco Catalyst2960-24S Dubai Switch is a fixed-configuration Fast Ethernet switches that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. It enables reliable and secure operations with lower total cost of ownership through a range of Cisco IOS software features, including Cisco Catalyst SmartOperations.

Features

  • Cisco Catalyst2960-24S Dubai has dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or a fiber uplink. A dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time
  • Scalable and secure ease of use functionality such as auto configuration with Auto Smart Ports and easy installation with Auto Install to lower total cost of ownership.
  • Cisco Catalyst2960-24S Dubai supports enhanced troubleshooting for problem solving including link connectivity and cable diagnostics
  • QoS for traffic classification and shaping to prioritize various applications including voice, video, and multicast applications.
  • Single IP address, syslog, and Simple Network Management Protocol (SNMP) management for a stack of up to 16 switches
  • Baseline Network Admission Control based on users, ports, and MAC addresses
  • Limited lifetime hardware warranty
  • Cisco Catalyst2960-24S Dubai offers Software updates at no additional cost

Technical Specs

Co2 Savings 343.78
Rack mounting Yes
Stackable No
Form factor 1U
Colour of product Grey
LED indicators Yes
Electromagnetic compatibility FCC Part 15 Class A, EN 55022 Class A (CISPR22), EN 55024 (CISPR24), AS/NZS CISPR22 Class A, CE, CNS13438 Class A, MIC, GOST, China EMC
Energy Star certified No
Certification CE, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, FCC Part 15, UL 1950 (3), CSA 22.2 No. 950 (3)
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Installed SFP modules quantity 2
Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support No
Full duplex Yes
Number of VLANs 64
MAC address table 8000 entries
Switching capacity 32 Gbit/s
Maximum data transfer rate 0.1 Gbit/s
Jumbo frames support Yes
DHCP features DHCP server,DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
SSH/SSL support Yes
MAC address filtering Yes
Management protocols SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Switching protocols Ethernet
Data link protocols Ethernet, Fast Ethernet
Memory type RAM
Internal memory 64 MB
Flash memory 32 MB
Mean time between failures (MTBF) 429847 h
Redundant power supply (RPS) support Yes
Power over Ethernet (PoE) No
