Cisco MDS9396S Dubai

Rating

Cisco MDS9396S Dubai

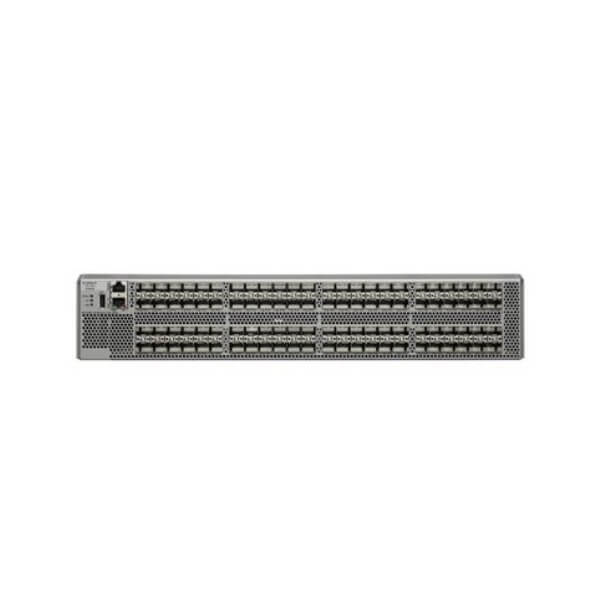

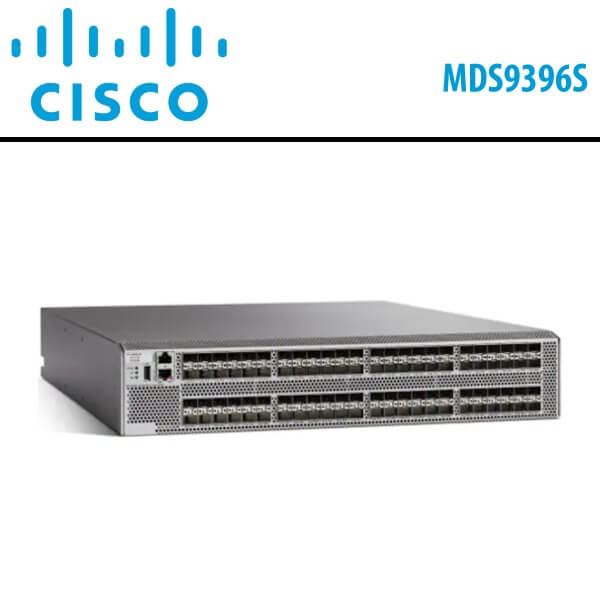

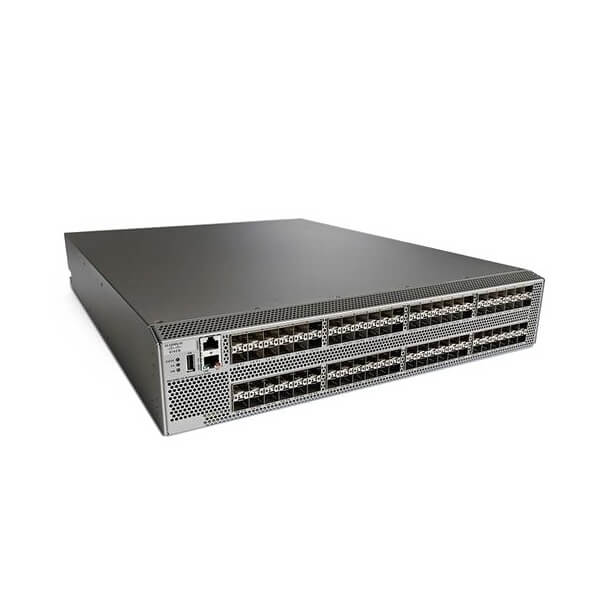

The Cisco MDS9396S Dubai 16G Multilayer Fabric Switch is the next generation of the high performance, high density and highly reliable Cisco MDS Series Fabric switches.

Category:

Description

Cisco MDS9396S Multilayer Fabric Switch Dubai

The Cisco MDS9396S Dubai 16G Multilayer Fabric Switch is the next generation of the high performance, high density and highly reliable Cisco MDS Series Fabric switches. Cisco MDS9396S Dubai combines high performance with exceptional flexibility and cost effectiveness. This powerful, compact, 2-rack-unit (2RU) switch scales from 48 to 96 line-rate 16-Gbps Fiber Channel ports.

Features

  • 96 licensed ports, or 48 licensed ports expandable up to 96 ports in 12 port increments with On-Demand licenses.

  • All Fibre Channel ports capable of line rate at 2, 4, 8, 10, 16 Gbps.

  • Port interfaces that support field-replaceable, hot-swappable small form-factor pluggable (SFP) transceivers.

  • Redundant hot-swappable power supplies and fan trays.

  • Port Channels for Inter-Switch Link (ISL) resiliency, and F-port channeling for resiliency on uplinks from a Cisco MDS 9396S operating in NPV mode.

  • Enterprise class features such as In-Service Software Upgrades (ISSU), Virtual SANs (VSANs), security features, and Quality of Service (QoS).

  • Power On Auto Provisioning (POAP) to automate software image upgrades and configuration file installation on newly deployed switches.

  • Generic OnLine Diagnostics (GOLD), a built in diagnostic system with intelligent boot up and periodic runtime tests.

  • Full compatibility with the Cisco MDS 9000 Family.

Quick Specs

Description

Specification

Temperature, ambient operating

32 to 104°F (0 to 40°C)

Temperature, ambient nonoperating and storage

-40 to 158°F (-40 to 70°C)

Humidity (RH), ambient (noncondensing) operating

10 to 90%

Humidity (RH), ambient (noncondensing) nonoperating and storage

5 to 95%

Altitude, operating

-197 to 6500 ft (-60 to 2000 m)

Noise levels

60 dB
