Cisco CBS250-48T4X Dubai

Rating

Cisco CBS250-48T4X Dubai

The Cisco CBS250-48T4X Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 176 Gb/s switching capacity and 130.94 Mbps forwarding rate.

Category:

Description

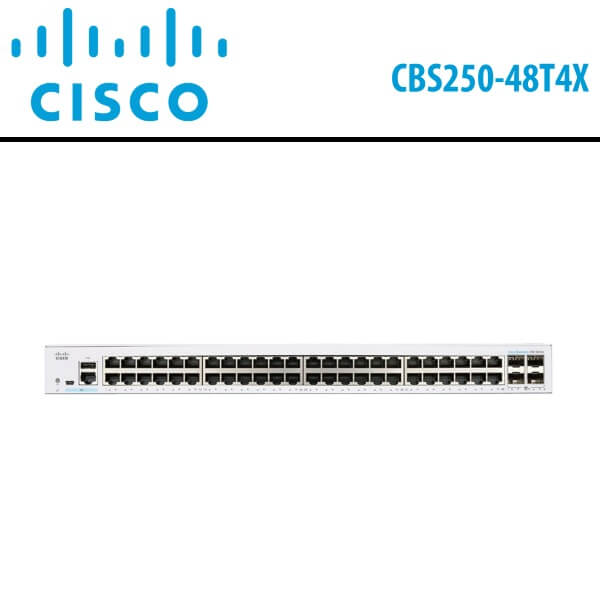

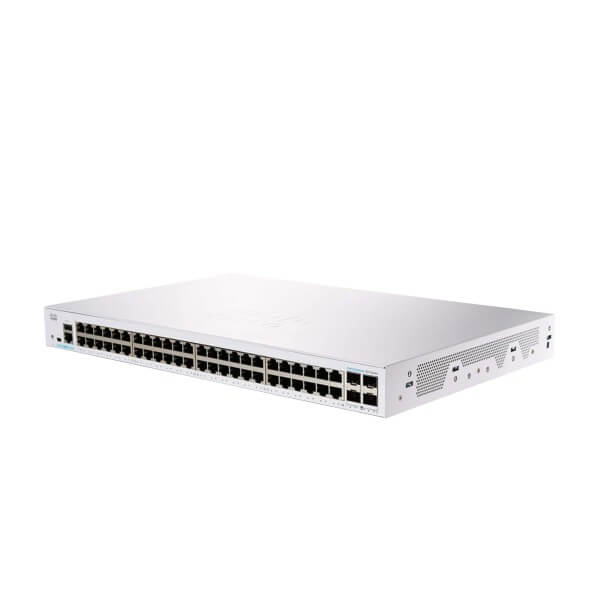

Cisco CBS250-48T4X Network Switch Dubai

The Cisco CBS250-48T4X Dubai managed rackmount switch features 48 Gigabit Ethernet ports for computers and devices that do not require power. There are also four 10GbE SFP ports available for fiber connections. Its extensive Layer 2 and Layer 3 features include link aggregation to create up to four groups of eight ports for multi-Gig connections to compatible devices. Its 176 Gb/s switching capacity and 130.94 Mbps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-48T4X Dubai and its connected devices. The single fan cooling system produces about 29.7 dBA of noise to minimize disruptions to your work environment.

Features:

Performance

The Cisco CBS250-48T4X Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 176 Gb/s switching capacity and 130.94 Mbps forwarding rate.

Layer 3 Static Routing

Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS250-48T4X Dubai can fit into wiring closets and other spaces within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports
  • 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • 4 x 10Gb SFP
  • 1 x USB Type-A (Console)
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
  • Port Mirroring
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
Multicast Groups 255
VLAN IDs 255
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication
  • Storm Control
Access Control List 512
IP Interfaces 16
Static Routes 32
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1d, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 130.94 Mpps
Switching Bandwidth 176 Gb/s
Priority Queues 8
Packet Buffer 3 MB
Computer
Flash Memory 256 MB
Processor 800 MHz ARM
Electrical
Power Draw 51.01 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE per Port 30 W
Power Supply Type Internal
Environmental
Operating Temperature 23 to 122°F / -5 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
Noise Level 29.7 dB
General
Cooling System Fan
Mean Time Between Failures (MTBF) 1,452,667 Hours
Indicator Lights Link/Activity, PoE, Speed, System
Rack Form Factor 1 RU
Dimensions 17.5 x 11.3 x 1.7″ / 445 x 288 x 44 mm
Weight 8.71 lb / 3.95 kg
