Cisco SF500-24 Dubai

Cisco SF500-24 Dubai switches provide the advanced security features you need to protect your business data and keep unauthorized users off the network.

Category:

Description

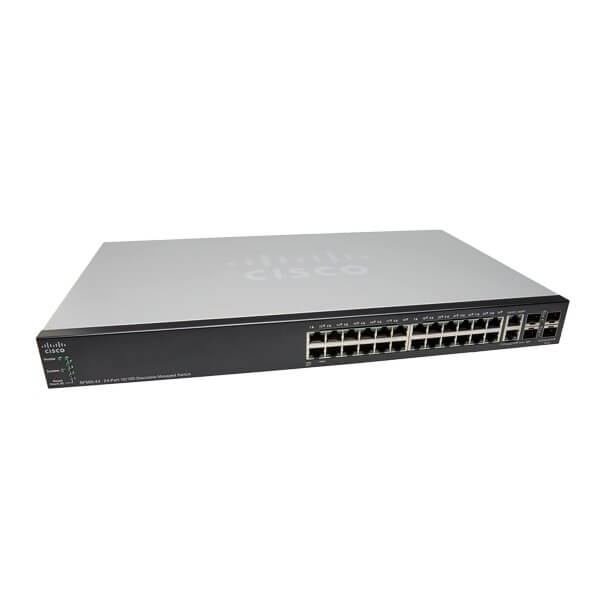

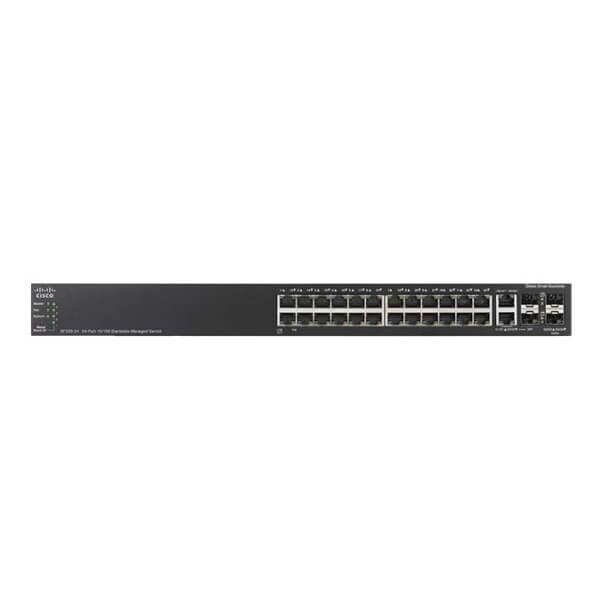

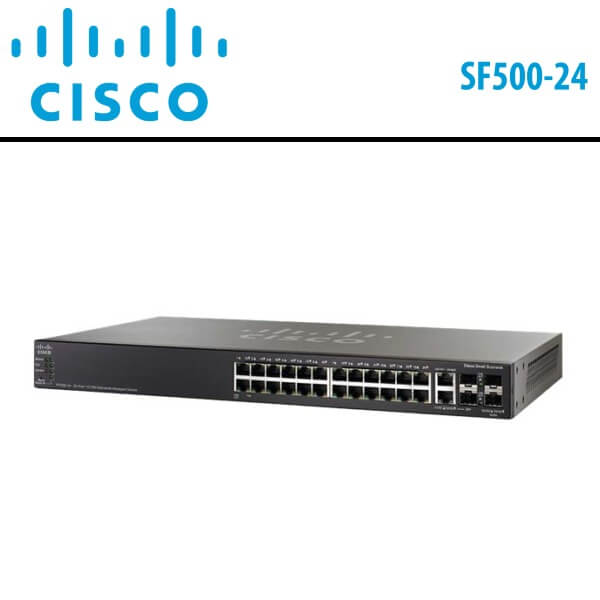

Cisco SF500-24 Network Switch Dubai

The Cisco® 500 Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the advanced capabilities you need to support a more demanding network environment, at an affordable price. The Cisco SF500-24 Dubai switches provide 24 ports of Fast Ethernet and 24 ports of Gigabit Ethernet connectivity with optional 10 Gigabit uplinks, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

Cisco SF500-24 Dubai Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements which are administered and troubleshot separately, the Cisco 500 Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. The Cisco 500 Series switch offer models which are fanless making it one of the industry’s first in stackable switches, thereby delivering increased reliability, power efficiency, and minimizing noise.

Features :

High Reliability and Resiliency

In a growing business where 24×7 availability is critical, you need to assure that employees can always access the data and resources they need. In these environments, stackable switches can play an important role in eliminating downtime and improving network resiliency. For example, if a switch within a Cisco 500 Series stack fails, another switch immediately takes over, keeping your network up and running. You can also replace individual devices in the stack without taking your network offline or affecting employee productivity.

The Cisco 500X models provide an additional layer of resiliency with support for the Virtual Router Redundancy Protocol (VRRP). VRRP lets you extend the same resiliency that stacking provides for individual switches to complete network domains. By running VRRP between two stacks, you can instantly cut over from one stack to another in the event of a problem, and continue operating even after a failure.

The Cisco SF500-24 Dubai also supports dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.

Simplified IT Operation

Cisco SF500-24 Dubai switches help optimize your IT operations with built-in features that simplify and streamline day-to-day network operation :

  • True stacking allows you to troubleshoot, configure, and manage multiple physical switches as a single entity.
  • Unlike other stacking switches that require uniform configurations, the Cisco 500 Series allows you to mix Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet models in a single stack, providing total flexibility without sacrificing manageability.
  • Cisco switches use common chipsets/software across all switching portfolios, so all Cisco switches within a category support the same feature set – making it easier to manage and support all switches across the network.

True Stacking

Some switches claim to support stacking but in practice support only “clustering” – meaning that each switch must still be managed and configured individually. Cisco SF500-24 Dubai switches provide true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address.

A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use since the stack of units operate as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, and port mirroring, which clustered switches can’t support.

Strong Security

Cisco SF500-24 Dubai switches provide the advanced security features you need to protect your business data and keep unauthorized users off the network :

  • Embedded Secure Sockets Layer (SSL) encryption protects management data traveling to and from the switch.
  • Extensive access control lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
  • Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
  • Support for advanced network security applications such as IEEE 802.1X port security tightly limits access to specific segments of your network. © 2011–2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 16 Data Sheet
  • Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IPMB (IP-MACport binding)
  • Time based VLANs restrict access to the network during predesignated times, such as business hours.
  • Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
  • Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a denial of service attack.
  • Private VLAN Edge (PVE) provides Layer 2 isolation between devices on the same VLAN.
  • Storm control can be applied to broadcast, multicast, and unknown unicast traffic.

Technical Specs

Product code SF500-24
Device Type Switch – 24 ports – managed – stackable
Enclosure Type Rack-mountable
Ports 24 x 10/100 + 2 x combo Gigabit SFP + 2 x SFP
Power Over Ethernet (PoE) N/A
Routing Protocol Static IP routing
Features
  • Stacking, Flow control, layer 2 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support,
  • Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support,
  • Access Control List (ACL) support, Quality of Service (QoS), reset button, LACP support,
  • Energy Efficient Ethernet, Dynamic VLAN Support (GVRP)
Compliant Standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
  • IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w,
  • IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
RAM 256 MB
Flash Memory 32 MB
Status Indicators Port transmission speed, system, link/activity
Interfaces 24 x 10Base-T/100Base-TX – RJ-45, 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 4 x SFP (mini-GBIC)
Power Device Power supply – internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Width 17.3 in
Depth 10.1 in
Height 1.7 in
Weight 6.8 lbs
Cables Included 1 x serial cable
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
Service & amp; Support Limited lifetime warranty
Service & amp; Support Details Limited warranty – replacement – lifetime – response time : next business day, Technical support – phone consulting – 1 year, Technical support – web support – 1 year
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 90% (non-condensing)
