Cisco CBS250-8TE2G Dubai

Rating

Cisco CBS250-8TE2G Dubai

The powerful Gigabit Ethernet Cisco CBS250-8TE2G Dubai switch provides multiple management options, sophisticated security capabilities, and fine-tuned Quality of Service (QoS) and Layer 3 static routing features.

Category:

Description

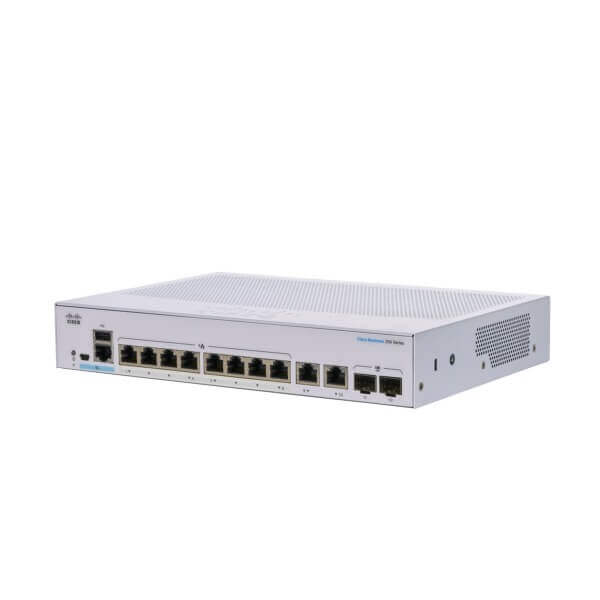

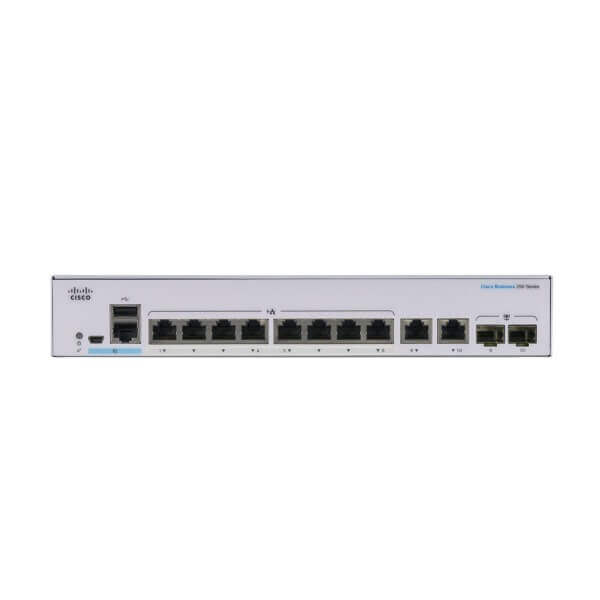

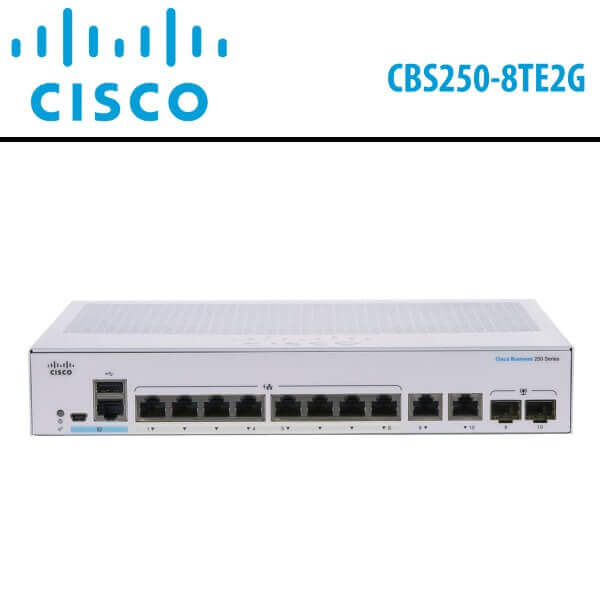

Cisco CBS250-8TE2G Network Switch Dubai

Cisco CBS250-8TE2G Dubai is a next-gen affordable, digital switch that delivers maximum security, powerful network performance, and reliability. It also offers a suite of comprehensive network features that are required to build a solid small business network.

The powerful Gigabit Ethernet Cisco CBS250-8TE2G Dubai switch provides multiple management options, sophisticated security capabilities, and fine-tuned Quality of Service (QoS) and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. And with an easy-to-use web user interface, you can deploy and configure a complete business network in minutes.

Features :

  • SWITCH PORTS : 8-Port 10/100/1000 plus 2 x 1GE copper/SFP combo
  • SIMPLE : Intuitive Cisco Business Dashboard or on-box U/I simplifies network operations and automates lifecycle management
  • FLEXIBLE : Extensive portfolio provides ultimate flexibility from 8 to 48 ports and PoE plus combinations
  • SECURITY : Cisco CBS250-8TE2G Dubai is integrated with IEEE 802.1X port security to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while extensive Access Control Lists (ACLs) protect the network from unauthorized users and guard against network attacks
  • INNOVATIVE DESIGN :  Cisco CBS250-8TE2G Dubai features an elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms

Technical Specs

General
Device Type Switch – 10 ports – L3 – smart
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x combo SFP
Performance
  • Forwarding performance (64-byte packet size) : 14.88 Mpps
  • Switching capacity : 20 Gbps
Capacity
  • RPVST+ instances : 126
  • MSTP instances : 8
  • VLANs supported : 255
  • ACL rules : 512
  • Buffer capacity (MB) : 1.5
MAC Address Table Size 8K entries
Jumbo Frame Support 2KB
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Features Flow control, BOOTP support, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, fanless, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, SmartPort technology, dual image support, VLAN mirroring, DNS client, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, Secure Sensitive Data (SSD), ISATAP tunnel support, User Datagram Protocol (UDP), STP loop guard, Denial of Service (DoS) protection, Weighted Round Robin (WRR), loopback detection, Unknown Storm Control, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor X ARM : 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status, PoE, link/activity/speed
Expansion / Connectivity
Interfaces
  • 8 x 10/100/1000 Base-T RJ-45
  • 2 x 1000Base-T / 1000Base-X RJ-45/SFP
  • 1 x console (mini-USB) Type B
  • 1 x USB Type A
  • 1 x console RJ-45
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 12.56 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 2,171,669 hours
Compliant Standards UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6
Localization Colombia, Canada, Chile, Mexico, Latin America, United States
Dimensions & Weight
Width 10.6 in
Depth 7.3 in
Height 1.7 in
Weight 3.75 lbs
Manufacturer Warranty
Service & Support
  • Limited warranty – replacement – lifetime – response time : next business day
  • Technical support – web support – 1 year
  • Technical support – phone consulting – 1 year
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 90% (non-condensing)
