Cisco Catalyst2960-48TTL Dubai

Rating

Cisco Catalyst2960-48TTL Dubai

Cisco Catalyst2960 48TTL Dubai enables you to protect important information, keep unauthorized users off the network, and maintain uninterrupted operation.

Category:

Description

Cisco Catalyst2960-48TTL Network Switch Dubai

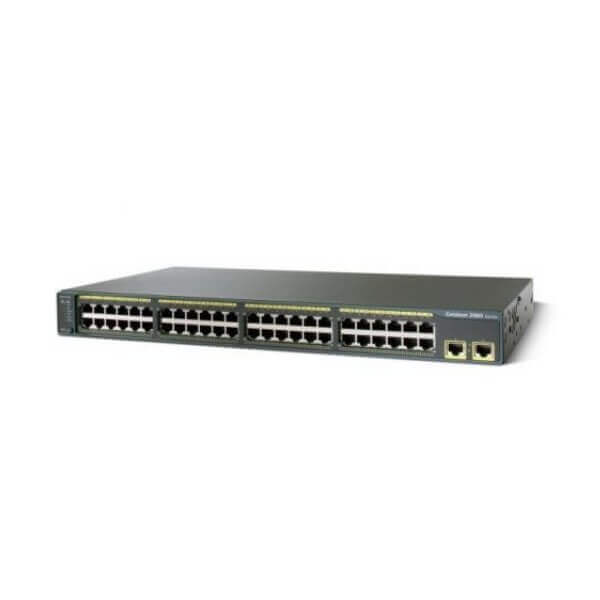

The Cisco Catalyst2960-48TTL Dubai is an intelligent fixed configuration 48 port Ethernet switch that will provide fast Ethernet and Gigabit Ethernet connectivity. Common features include integrated NAC (Network Admission Control), advanced QoS (quality of service) and scalable network management.

Features

Intelligence : Prioritize voice traffic or data exchange so delivery of information is aligned with your business requirements using the premium Cisco Catalyst2960-48TTL Dubai.

Enhanced Security : Cisco Catalyst2960-48TTL Dubai enables you to protect important information, keep unauthorized users off the network, and maintain uninterrupted operation.

Reliability : Take advantage of standards-based methods or FlexStack stacking for increasing dependability and rapid recovery from problems. You can also add redundant power supply for extra reliability.

Easy Configuration : Use integrated Cisco Catalyst Smart Operations and Cisco Network Assistant to simplify set-up, upgrades, and troubleshooting of the Cisco Catalyst2960-48TTL Dubai switch.

Technical Specifications

General

Device Type
Switch – 48 ports – managed
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 + 2 x 10/100/1000
Performance
Switching capacity : 32 Gbps
Forwarding performance (64-byte packet size) : 10.1 Mpps
MAC Address Table Size
8K entries
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
Layer 2 switching, auto-sensing per device, dynamic IP address assignment, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
RAM
64 MB
Flash Memory
32 MB flash
Status Indicators
Port transmission speed, port duplex mode, power, link OK, system, link/activity

Expansion / Connectivity

Interfaces
48 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
42 Watt

Miscellaneous

Rack Mounting Kit
Optional
MTBF
339,743 hours
Compliant Standards
TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A

Software / System Requirements

Software Included
Cisco LAN Base software

Dimensions & Weight

Width
17.5 in
Depth
13 in
Height
1.7 in
Weight
8 lbs

Manufacturer Warranty

Service & Support
Limited warranty – lifetime

Environmental Parameters

Min Operating Temperature
23 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 – 95% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 – 95% (non-condensing)
