Cisco Catalyst3650-48E Dubai

Rating

Cisco Catalyst3650-48E Dubai

The Cisco Catalyst3650-48E Dubai has built-in Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features.

Category:

Description

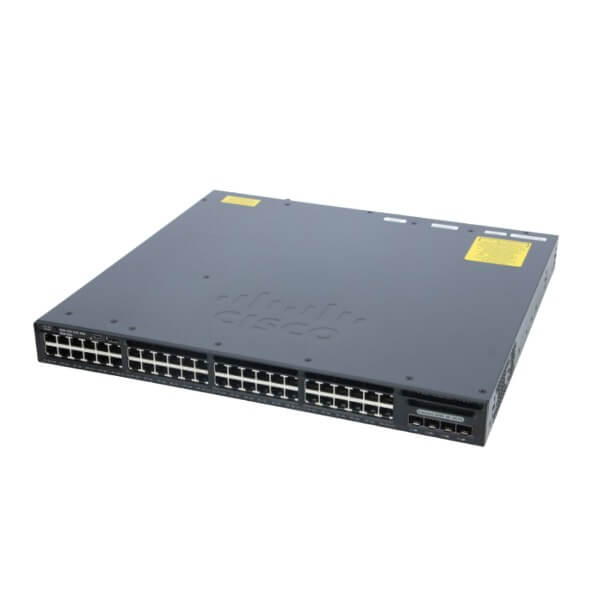

Cisco Catalyst3650-48E Network Switch Dubai

The Cisco Catalyst 3650 series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst3650-48E Dubai is built on the advanced Cisco StackWise -160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.

Features

  • Cisco Catalyst3650 is integrated with wireless controller capability with :
    • Up to 40G of wireless capacity per switch (48-port models)
    • Support for up to 25 access points and 1000 wireless clients on each switching entity (switch or stack)
  • 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
  • Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports
  • Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput

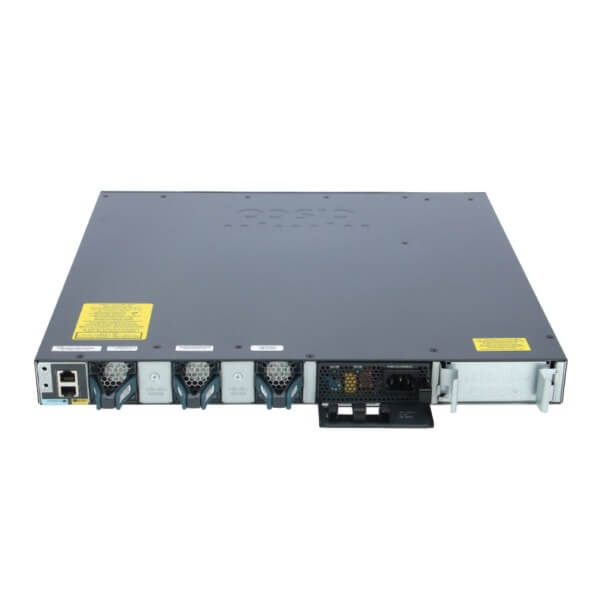

    • Dual redundant, modular power supplies and three modular fans providing redundancy
    • Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor
  • Cisco Catalyst3650-48E Dubai has built-in Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
  • Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
  • Cisco Catalyst3650-48E Dubai is integrated with enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Technical Details

  • Actual Weight : 16.80 lb(s)
  • Compatibility Notes
    • 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports.
    • Three fixed-uplink models with 4x Gigabit Ethernet, 2x 10 Gigabit Ethernet, or 4x 10 Gigabit Ethernet ports.
    • Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features.
  • Connectivity Ports : 48
  • Contents : Switch, rack mounting kit, documentation
  • General
    • Color : Black
    • Warranty Period : Limited lifetime
  • Memory
    • RAM (installed) : 4GB
  • Memory Notes
    • 4GB RAM, 2GB Flash
  • Physical Dimensions : 1.7″h x 17.5″w x 17.6″d
  • Ports/Connectors
    • (48) PoE+
    • (1) USB Type A
    • (1) RJ-45 Serial
    • (1) RJ-45 LAN
    • (1) Mini USB Type B
    • (2) SFP+
  • Protocols
    • Networking Protocol : PoE+
    • Networking Protocol : SSH
    • Networking Protocol : IEEE 802.3
    • Networking Protocol : IEEE 802.3u
    • Networking Protocol : IEEE 802.3z
    • Networking Protocol : IEEE 802.1D
    • Networking Protocol : IEEE 802.3ab
    • Networking Protocol : IEEE 802.1p
    • Networking Protocol : IEEE 802.3af (PoE)
    • Networking Protocol : IEEE 802.3x
    • Networking Protocol : IEEE 802.3ad
    • Networking Protocol : IEEE 802.1w (RSTP)
    • Networking Protocol : IEEE 802.1x
    • Networking Protocol : IEEE 802.3at
    • Remote Management Protocol : CLI
    • Remote Management Protocol : RMON 1
    • Remote Management Protocol : RMON 2
    • Remote Management Protocol : RMON 3
    • Remote Management Protocol : RMON 9
    • Remote Management Protocol : SNMP 1
    • Remote Management Protocol : SNMP 2c
    • Remote Management Protocol : SNMP 3
    • Remote Management Protocol : Telnet
    • Remote Management Protocol : SSH
    • Routing Protocol : Static IP routing
  • Returns Policy : Due to manufacturer restrictions, all sales on this item are final.
  • Shipping Weight : 1 lbs
  • Standards
    • Compliant Standards : RoHS
    • Compliant Standards : KCC
    • Compliant Standards : FCC Part 15 A
    • Compliant Standards : VCCI Class A
  • UNSSC : 43222612
  • Warranty – Labor : Limited Lifetime
  • Warranty – Parts : Limited Lifetime
