Description

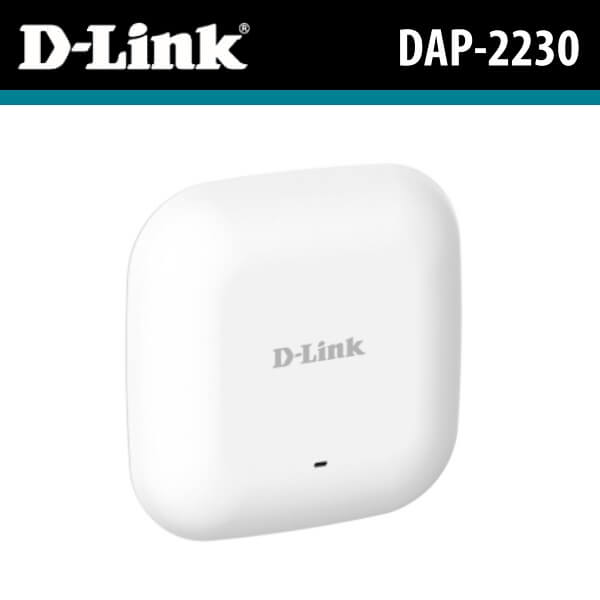

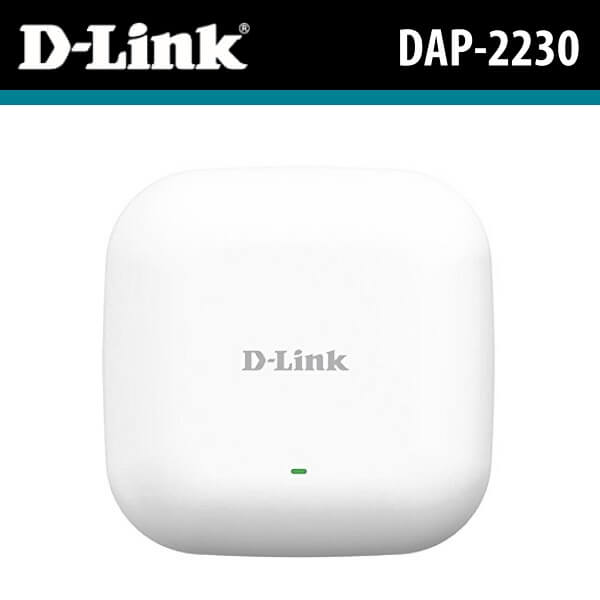

D-Link DAP-2230 Wireless N PoE Access Point Dubai
The D-Link DAP-2230 Dubai simply provides network administrators with secure and manageable dual-band wireless LAN options. It is a powerful Wireless N PoE Access Point which has been designed to serve the communication needs and requirements of small to medium business or business environments. The DAP-2230 Dubai is equipped with a variety of advanced features including multiple operating modes, security features, and network management tools, making it a highly reliable and convenient device. It offers the easiest possible deployment process that requires no technical expertise of its user. D-Link DAP-2230 Dubai is highly versatile and allows for the addition of wireless network-enabled devices.
General Features
- Impressive Performance
- The D-Link DAP-2230 Dubai enables businesses to set up a a secure and manageable wireless network. Multiple operational modes, network management tools and security features give network administrators more flexible deployment options.
- Flexible Deployment

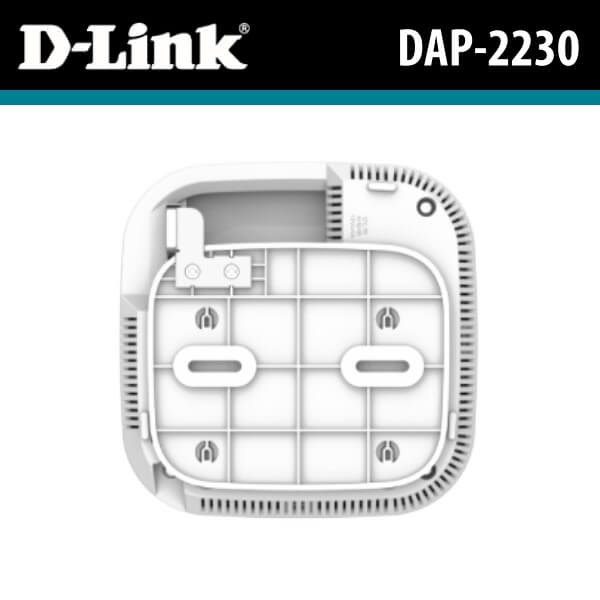

- The D-Link DAP-2230 Dubai comes in an elegant, compact design which can be mounted on walls and ceilings, or can be placed on a desktop to the preference of its users. For advanced installations, the D-Link DAP-2230 Dubai has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.
- Green Design
- The D-Link DAP-2230 Dubai has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power.
- 8 SSIDs Simultaneously
- D-Link DAP-2230 Dubai supports up to 8 SSIDs that can logically divide the access point into several virtual access points all within a single hardware platform.
Technical Specifications
General
Device Interfaces
• 802.11 b/g/n wireless
• 10/100 Mbps PoE LAN port (supports 802.3af PoE)
LED
• Power/Status
Standards
• IEEE 802.11b/g/n
• IEEE 802.3u/ab/af
Wireless Frequency Range
• 2.4 GHz band: 2.4 GHz to 2.4835 GHz
Antennas
• Two internal 3 dBi for 2.4 GHz
Maximum Output Power
• 20 dbm for 2.4GHz as per EU / CE Starndards
Functionality
Security
• WPA-Personal
• WPA-Enterprise
• WPA2-Personal
• WPA2-Enterprise
• WEP 64/128-bit encryption
• SSID broadcast disable
• MAC address access control
• Network Access Protection (NAP)
Network Management
• Telnet
• Secure Telnet (SSH)
• HTTP
• Secure HTTP (HTTPS)
• Traffic control
• SNMP
• AP Array
• D-Link Central WiFiManager
Physical and Environmental
Dimensions
• 129 x 129 x 29 mm
Weight
• 101.4 grams
Operating Voltage
• 12 V DC 1 A or 802.3af PoE
Maximum Power Consumption
• 5.76 watts
Temperature
• Operating: 32 to 104 °F (0 to 40 °C)
• Storage: -4 to 149 °F (-20 to 65 °C)
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• FCC
• IC
• CE
• Wi-Fi
• UL
