Description

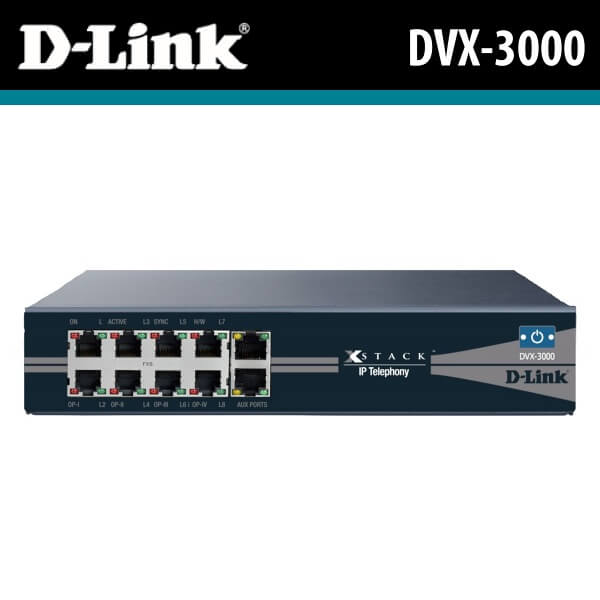

D-Link DVX-3000 Dubai
D-Link DVX3000 Dubai delivers all the essential telephony features that medium-sized businesses require to enhance their communication. It is integrated with an advanced EASY VOIZ Distribution feature from D-Link and is designed to support a variety of telephony ports. EAZY VOIZ provides up to 16 E1 R2 / T1 CAS PRI channels, up to 16 PSTN/analog phones ports, up to 8 BRI ISDN channels, and up to 30 concurrent SIP calls.
D-Link DVX3000 Dubai is equipped with many features including call hold, call forwarding, follow me, voice mail, and many others. Incoming calls are directed by the integrated auto-attendant and hunt groups to assist callers to their destinations. D-Link DVX-3000 Dubai can utilize standard phone lines via an external phone line gateway or cost-effective Internet telephony services.
Internet Telephony, otherwise known as Voice over IP(VoIP) means transporting telephone calls over the Internet as standard Internet data packets. Internet telephone calls can originate from traditional phone handsets via phone line-to-Internet (Analog Trunk) gateways, by PCs using software, or embedded devices (IP Phones). Most of the interest in Internet telephony is motivated by cost savings and ease of developing and integrating new services. Internet telephony integrates a variety of services provided by the current Internet and the Public Switched Telephone Network (PSTN) infrastructure.
Quick Features:
- Extensions Anywhere
- The D-Link DVX-3000 Dubai extensions can be located anywhere with Internet access. Multiple units can be used to increase the number of extensions or unite a company that has many locations under a single PBX system.
- Easy Web Configuration
- The PBX phone features are user adjustable via the DVX-3000’s web configuration tool. The administrator assigns each extension a profile of telephony features, which allows the best match for a user’s job function. Each user can fine-tune their assigned profile via the web to match their daily business schedule.
As PBX:
- Configurable as core IP or hybrid PBX.
- Switches calls & Manages routes.
- Connects callers with the outside
- world over IP/analog (POTS) and
- digital connections.
As Gateway:
- Configurable as media gateway.
- Bridges legacy PSTN to the expanding
- world of IP telephony.
- Conversion between a wide range of
- communications protocols and media
- codecs.
As Media/Feature Server :
- Provides IVR and Conference Bridge.
- Automated attendant and unified messaging.
- Can replace aging legacy voicemail systems.
In Call Centre :
- Features built-in ACD systems.
- Additional remote IP agent capabilities.
- Advanced skills-based routing.
Protocol Standards
- Protocol Standards
- SIP (RFC 3261)
- SDP (RFC 2327)
- RTP (RFC 1889)
- RTCP (RFC 1889)
- Out-Of-Band DTMF (RFC 2833)
- IAX2 (RFC 5456)
Management Features
- 100 extensions
- Supports 30 concurrent calls
- Single IP PBX supports multiple
- users across multiple sites
- Add external Analog Trunk
- Gateways to use standard
- phone-lines
- Save Money by using Internet
- Phone service (VoIP)
- User-Friendly Administration
- Interface
- Web-based Monitoring and
- Administration
- Call Statistics and
- Call Detail Records (CDR)
Calling Features
- Business Calling Features
- Caller ID
- Call Transfer (Blind Transfer and Assisted Transfer)
- Call History
- Call Hold
- Do Not Disturb
- Call Forwarding (Always/on Busy/on No Answer/Follow me)
- Call Park
- Ring Group
- Call Pickup
IVR/Auto-Attendant
Features
- Music on Hold
- Configurable IVR Menu
- Voice Mail
- Mailbox Access control (PIN)
- Configurable Mail Box
- Notification via email
Conference Server
- Access Control
- Conference Recording
- Conferencing from external lines
Hardware
- Processor: 900MHz quad-core ARM Cortex-A7 CPU
- RAM: 1GB
- Hard disk:8GB micro SD storage
- USB: 2 external USB 2.0 ports
Configuration
- Secure Web Based Management
- Configuration Backup/Restore
