D- Link DVG-6001G Dubai

You can use various professional platforms IP PBX and softswitch brands such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX on the D-Link DVG-6001G GSM Gateway Dubai.

Category:

Description

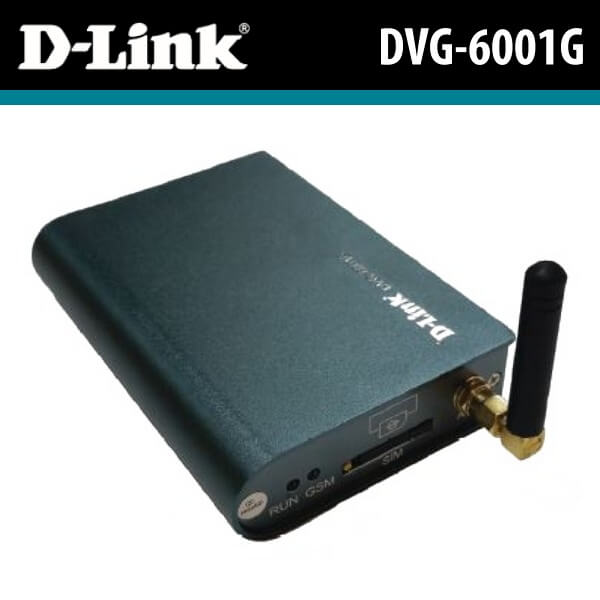

D- Link DVG-6001G GSM Gateway Dubai

The D-Link DVG-6001G Dubai facilitates smooth transition between PLMN(GSM) and VoIP network. It is a modern GSM Gateway that works perfectly with major leading professional soft switch brands and SIP servers. The D-Link DVG-6001G Dubai incorporates both narrowband and wideband audio codecs such as G.711A/U law, G.723.1, G.729A/B resulting in very clear audio. It also uses  G168 Echo Cancellation to filter out any background and surrounding noises that may occur in noisy and busy environments. D – Link DVG-6001G GSM Gateway Dubai runs on a powerful operating system and supports a number of network protocols including; IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, RARP, ICMP Ping, NTP, SNTP, Http, and DNS. It is equipped with 2 10/100M Base – Tx RJ45 ports for an easy Ethernet connection.

Features

  • Modular & Scalable
    • You do not require any technical expertise in order to set up the Premium D-Link DVG-6001G GSM Gateway Dubai which offers an easy user experience, courtesy of its embedded web – based configuration. The high performing Gateway features SIP/IAX trunks  and supports a modular analog interface to enable you to add to your already existing analog telephony infrastructure.
  • Cost-Effective
    • The D-Link DVG-6001G Dubai enables you to enjoy seamless communications at an extremely affordable price. The incorporated Internet Phone Service which integrates well with known ITSPs offers an easy connection for faster calls and browsing  in your workstation.
  • Simple Integration
    • The  D-Link DVG-6001G Dubai incorporates a simple web based configuration, Telnet configuration and a firmware upgrade by TFTP to accord the user a very easy installation and operation experience. It is easy to deploy, resulting in a neater and cleaner workstation.
  • Mobile Connectivity For SMBs
    • The D-Link DVG-6001G Dubai offers a perfect communication solution for both small and medium sized businesses. It works to enhance your high performance as well as securing both wired and wireless infrastructure for mobile and cloud-based applications. It is highly versatile and works with various IP PBX platforms to enhance the productivity of your workers.
  • Superb Quality Audio
    • The  D-Link DVG-6001G Dubai offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Cancelling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.
  • Wide Interoperability
    • You can use various professional platforms IP PBX and softswitch brands such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX on your D-Link DVG-6001G GSM Gateway Dubai.

D- Link DVG-6001G – Technical Specs

  • MOBILE SPECIFICATIONS
    • Frequency Range:
      • GSM 850/900/1800/1900MHz
      • WCDMA 850/1900/2100 MHz
    • DTMF mode: Signal/RFC2833
    • SMS/SMSC/USSD
    • open API for SMS
    • Call duration limitation
    • One/two stage dial-up, hotline
    • Polarity Reversal
    • Custom IVR
    • PIN modified
    • Carrier select
    • CLIR
    • BCCH
  • FEATURE LIST
    • SIP v2.0 RFC3261
    • Outbound Proxy
    • SIP register client
    • IP trunk and IP trunk group
    • SIP codes mapping
    • Call Redirect
    • Call waiting
    • PSTN hotline
    • VoIP hotline
    • Password authentication for incoming and outgoing calls
    • Auto provisioning
    • Local/Remote Codecs
    • Digit map
  • NETWORK FEATURES
    • Ethernet Interface: 2*10/100M Base-Tx RJ45
    • Static IP, PPPoE, DHCP
    • Network Protocol Support:
    • IP, TCP, UDP, TFTP, FTP, RTP,  RTCP, ARP, RARP, ICMP Ping, NTP, SNTP, Http, DNS
    • NAT traversal: Static NAT, STUN
    • Static/dynamic ARP request
    • DSCP/ToS
  • VOICE PROCESSING
    • 711A/U law, G.723.1, G.729A/B
    • Silence Suppression & Detection
    • Comfort Noise Generation (CNG)
    • Voice Activity Detection (VAD)
    • Echo Cancellation (G.168)
    • Adaptive (Dynamic) Jitter Buffer
    • Call Progress Tone Generation
    • Programmable Gain Control
  • MAINTAIN & UPGRADE
    • Web based configuration
    • Telnet configuration
    • Configure backup/restore
    • Firmware upgrade by TFTP
    • Web & telnet login password modify
    • Factory reset
    • System log
    • Ping and Tracer test on web
    • Traffic statistics: TCP,UDP,RTP
    • VoIP call statistics
    • PSTN call statistics: ASR, ACD, PDD
  • PHYSICAL PROPERTIES
    • Power: DC12V1A
    • Temperature (operation): 0 °C ~ 45 °C
    • Temperature (storage): 20 °C ~ 80 °C
    • Operation Humidity: 10%-90%
    • Weight: 7kg

PACKAGE CONTENTS

  • D-Link DVG-6001G GSM Gateway Dubai
  • RJ-45 Network cable
  • Antenna
  • User’s Manual CD
