Aver PTC115 Plus Auto-Tracking Video Conference System UAE

Rating

Aver PTC115 Plus Auto-Tracking Video Conference System Dubai UAE

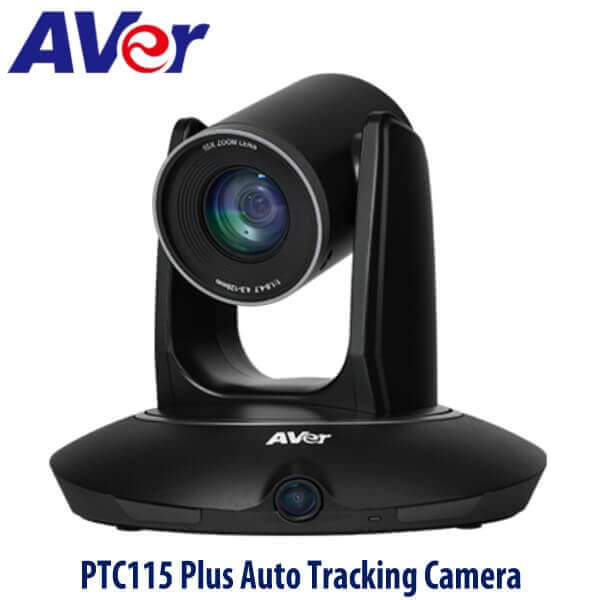

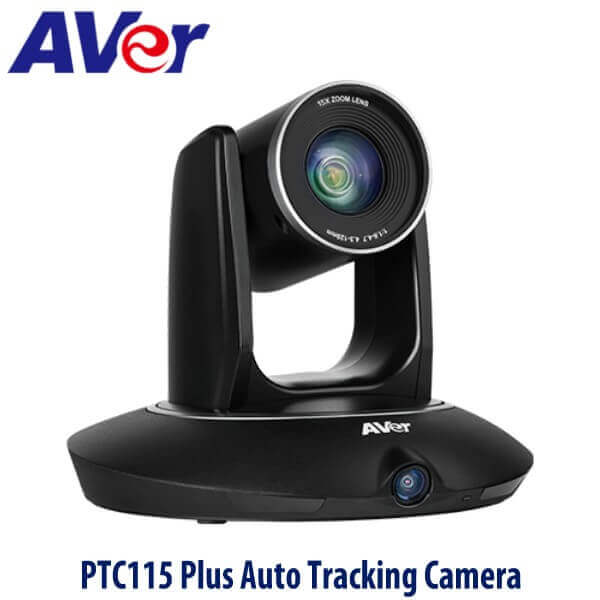

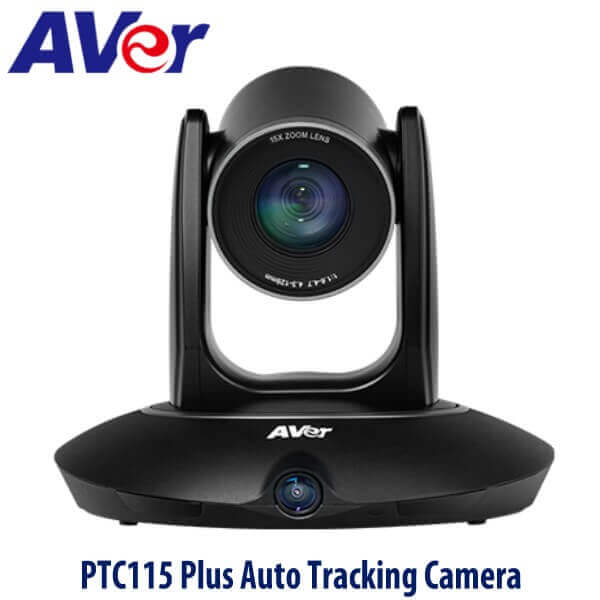

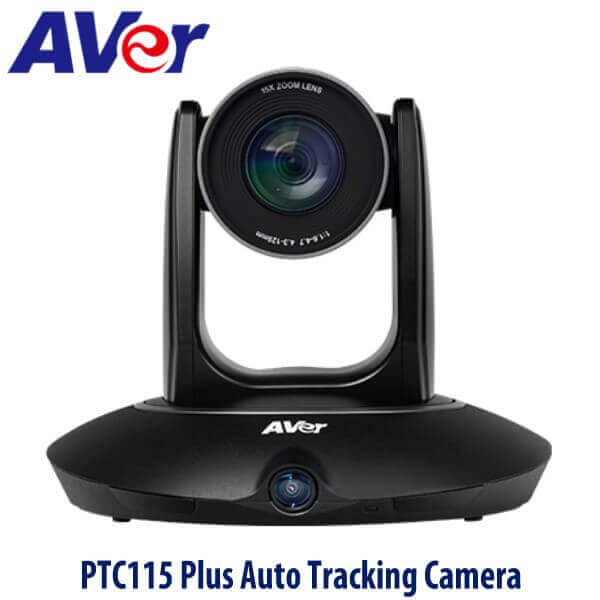

The Aver PTC115 Plus Auto Tracking video conference system Dubai comes with Dual Lens Auto Tracking Camera. the twin-lens/dual-lens design integrates a PTZ camera with a super-wide 120° FOV secondary camera to trace the speaker and capture a view of the classroom at an identical time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and also the remainder of the classroom. Clearly present every detail, and never miss a teachable moment.

Description

Aver PTC115 Plus Auto-Tracking Video Conference System Dubai

The Aver PTC115 Plus Auto Tracking video conference systems Dubai equips 15X optical zoom and 120° panoramic FOV that has full HD 1080p video resolution. With accurate 3 auto tracking modes and multi-presenter detection, the Aver PTC115 Auto Tracking video conference systems capture every unique moment.

Perfectly suited to satisfy the wants of governmental institutions, educational organizations, and enterprises, the Aver PTC115 plus Auto Tracking video conference systems is that the affordable solution for courses and lectures, keynote speeches, and employee training. Share more along with your audience through real-time streaming; with no operator required and an easy-to-use programmer, you’ll be able to reduce costs and achieve limitless distance learning.

The Aver PTC115 plus Auto Tracking video conference systems Dubai has Up to 15X Optical Zoom options. Featuring a PTZ camera with a 15X optical zoom, the Aver PTC115 Auto Tracking video conference systems sports a 350° pan and 120° tilt radius that are ideal for classrooms or meeting spaces. Precisely track the moving presenter and distinctly display important details with full HD 1080p 60fps video and a robust remote autofocus function. Capture the complete classroom experience with the foremost realistic and dynamic image quality.

Exclusive algorithms enable the Aver PTC115 Auto Tracking video conference camera to automatically track a presenter’s face and movements. Speakers are absolving to walk around the classroom without wearing any accessories to allow guidance and solve problems for college students, ensuring a high-quality education. Without must worry about the connection restrictions, charging security, or added expense of a wearable device, you’ll specialize in easily building zero-distance interactive teaching. This also can integrate with the Audio Conferencing System Dubai for more advanced sound effects crystal clear voice quality.

Aver PTC115 Auto Tracking video conference camera has Multi-Presenter Detection. Aver PTC115 Auto Tracking video conference camera Industry-leading Multi-Presenter Detection accurately tracks when there are two or more people within the effective area. This feature allows teachers to conduct group discussions, quiz contests, interactive games, and more. Use one camera to capture every detail of each learning situation. With advanced targeting algorithms, the PTC115 plus’s Wide Area Tracking enables us to trace your target everywhere. The Aver PTC115 Auto Tracking video conference systems provide extremely high accuracy tracking that’s widely known as a performance leader within the auto-tracking market. With fluid and accurate tracking, your target has the liberty to depart the stage to interact with crowds or students all while being continuously captured, whether or not obscured by people or objects. The Aver PTC115 Auto Tracking video conference camera permits you to master your recording and capture every brilliant moment.

Aver PTC115 Plus Features

  • Dual Lens Auto Tracking Camera
  • Up to 15X Optical Zoom
  • No Extra Devices Needed
  • Dual Lens Design
  • Multi-Presenter Detection
  • Wide Area Tracking

Aver PTC115 Plus Auto-Tracking Video Conference System Specifications

  • PTZ Camera
    • Image sensor: 1/2.8” 60fps low lux CMOS sensor, 2 mega pixels
    • Output resolution: auto, 1080p/60, 1080p/50,1080p/30, 720p/60, 1080i/60, 1080i/50
    • Optical zoom: 15X, Digital zoom: 12X Lens focal length: f=4.3mm (wide) ~ 64.5mm (tele)
    • Iris: f=1.6 (wide) ~ 4.2 (tele)
    • View of angle: DFOV=76∘(wide) ~ 5∘(tele)
    • Minimum illumination: IRE50 0.47 lux (60fps);0.23 lux (30fps)
    • Preset number: 10 locations by remote (256 via RS232)
    • Minimum working distance: 1.2 meter at tele-end (15X); 0.1 meter at wide-end (1X) White balance: auto/manual (2500 ~ 10000)
    • Gain: auto/manual
    • Electronic shutter: 1/5 s to 1/32000 s
    • BLC (back light compensation): off/on
    • Exposure: auto/shutter priority/iris priority/manual
    • Noise reduction: off/low/medium/high
    • Frequency: auto/50Hz/60Hz
    • S/N ratio: >50db
    • Horizontal resolution: center 800 TV lines; corner 600TV lines
  • Pan Tilt Parameter
    • Pan rotation: -175∘(left) 175∘(right)
    • Tilt rotation: -30∘(down) 90∘(up)
    • Pan control speed: 2∘~ 50∘/sec
    • Tilt control speed: 2∘~ 50∘/sec
    • Preset speed: pan 160∘/sec; tilt 160∘/sec
  • Panoramic Camera (Full View)
    • Image sensor: 1/2.8” 60fps low lux CMOS sensor with WDR
    • Effective picture elements: 2 Million Pixels
    • Output resolution: auto, 1080p/60, 1080p/30, 720p/60
    • Lens focal length: 2.12mm
    • White balance: auto
    • Exposure: auto
    • FOV: DFOV=120∘
  • Interface/Streaming/Protocol
    • USB*2, HDMI*1, IP (RJ45)
    • Video output capability: up to 1080P@60fps
    • Remote control: RS232*1 (DIN6), IP (RJ45)
    • Baud rate: 115200/9600/4800/2400 bps
    • Network interface: 10/100/1000 Base-T, support Wake-on-LAN
    • Network video compress format: H.264
    • Network protocol: RTSP, RTMP, ONVIF
    • IP video streaming: dual video streaming (PTZ and panoramic view)
    • Control protocol: VISCA/Pelco-D/Pelco-P
    • Power: DC12V, power jacket
  • System
    • Remote IR: IR sensor
    • Audio: G.711
    • LED: power (blue-open, red-close)
    • Security: Kensington slot
    • Infrared remote: receiver on the front of the camera
    • Power adapter: AC110V-AC220V to DC12V/5A
    • Operating temperature: 0℃ ~ 40℃
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20℃ ~ 60℃
    • Storage humidity: 20% ~ 95%
    • Dimensions: L=201mm, W=210mm, H=176mm
    • Weight: 1.75kg
    • Remote maintenance: remote update, remote reboot, remote reset
    • Accessory: remote control, 12V/5A power adapter, DIN6 adapter, user manual
  • WebUI
    • Browser IP access (Chrome, Firefox, IE, etc.)
