Aver PTC330W Dubai

Rating

Aver PTC330W Dubai

Equipped with Full HD 1080p resolution, the Aver PTC330W Dubai provides ultra-precise auto tracking. The PTC330 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

Category:

Description

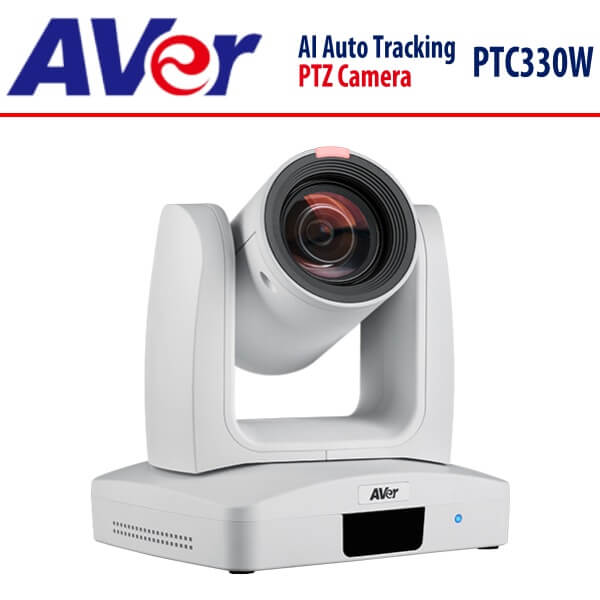

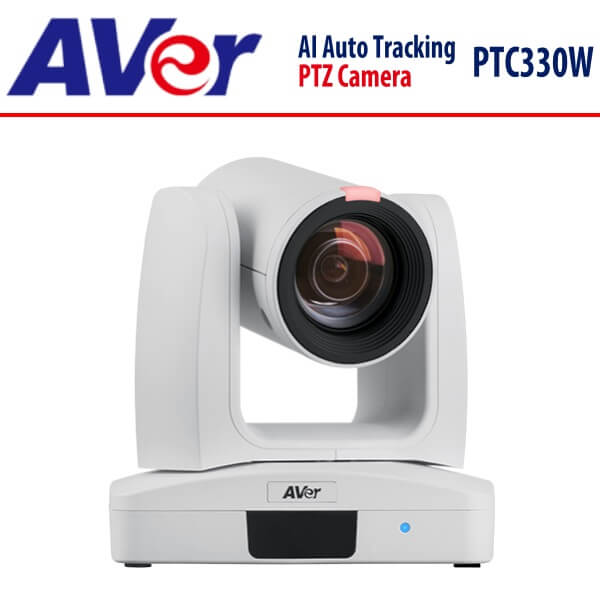

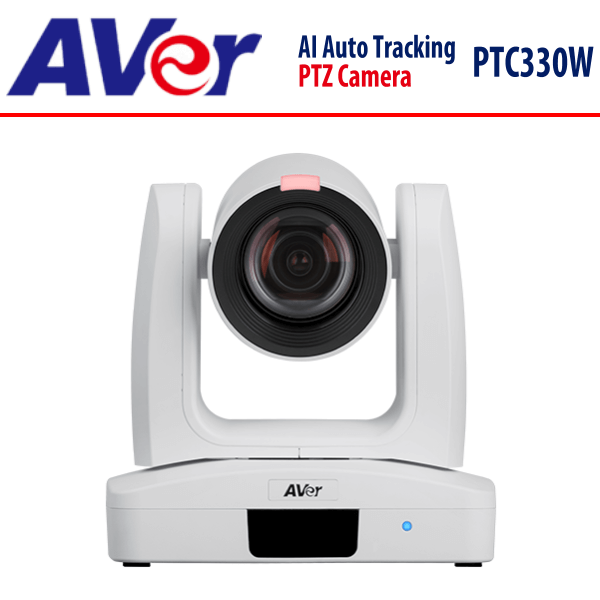

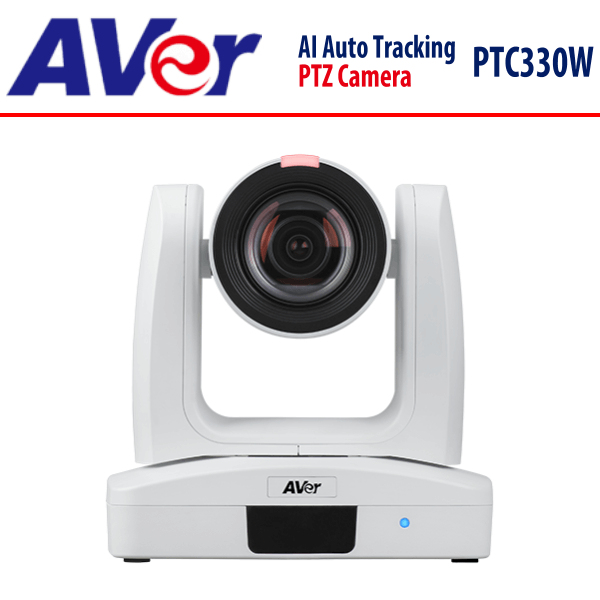

Aver PTC330W AI Auto Tracking Camera Dubai

The Aver PTC330W Dubai AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC330 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 30X Optical Zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording.

Features:

  • Full HD 1080p Resolution
  • 30X Optical Zoom
  • IP/HDMI/3G-SDI/USB
  • Human Detection AI
  • Presenter Mode
  • Zone Mode
  • Intuitive Web UI
  • Upside-Down Installation

Full HD 1080p Output Resolution

Equipped with Full HD 1080p resolution, this video conferencing system provides ultra-precise auto tracking. The PTC330 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

30X Optical Zoom & 2X Sensor Zoom

The zoom power of the PTC330 camera reaches an incredible 60X (30X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the Aver PTC330W Dubai.

Human Detection AI

Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables Aver PTC330W Dubai to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Click & Track

Redirect focus in an instant with the Aver PTC330W Dubai. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.

Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

SPECIFICATIONS

Camera

  • Image Sensor : 1/2.8″ 1080p Exmor CMOS
  • Effective Picture Elements : 2 Megapixels
  • Output Resolutions : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination : 0.7 lux (IRE50, F1.6, 30fps)
  • S/N Ratio : ≥ 50dB
  • Gain : Auto, Manual
  • TV Line : 900 (Center)
  • Shutter Speed : 1/1 to 1/10,000 sec
  • Exposure Control : Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance : Auto, Manual
  • Optical Zoom : 30X
  • Digital Zoom : 12X
  • Sensor Zoom : 2X
  • Viewing Angles :
    • DFOV : 72.9° (Wide) to 2.64° (Tele)
    • HFOV : 65.1° (Wide) to 2.34° (Tele)
    • VFOV : 38.4° (Wide) to 1.36° (Tele)
  • Focal length : f = 4.3 mm (Wide) to 129 mm (Tele)
  • Aperture (Iris) : F = 1.6 (Wide) to 4.7 (Tele)
  • Minimum Working Distance : Wide: 0.01 m, Tele: 1.2 m
  • Pan/Tilt Angles : Pan: ±170°, Tilt: +90° / -30°
  • Pan/Tilt Speed (Manual) : Pan: 0.1° to 100°/sec, Tilt: 0.1° to 100°/sec
  • Preset Speed : Pan: 200°/sec, Tilt: 200°/sec
  • Preset Positions : 10 (IR), 256 (RS-232 / RS-422 / IP)
  • Camera Control – Interfaces : RS-232 (DIN8), RS-422 (RJ45), IP
  • Camera Control – Protocols : VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
  • Image Processing : Noise Reduction (2D / 3D), Flip, Mirror
  • Power Frequencies : 50Hz / 60Hz

AI Auto Tracking Functions

  • Tracking Modes : Presenter Mode, Zone Mode, Hybrid Mode

Audio

  • Channel : 2ch Stereo
  • Codecs : AAC-LC (48 / 44.1 / 32 / 24K)
  • Sample Rates : 48 / 44.1 / 32 / 24 / 16 / 8 KHz

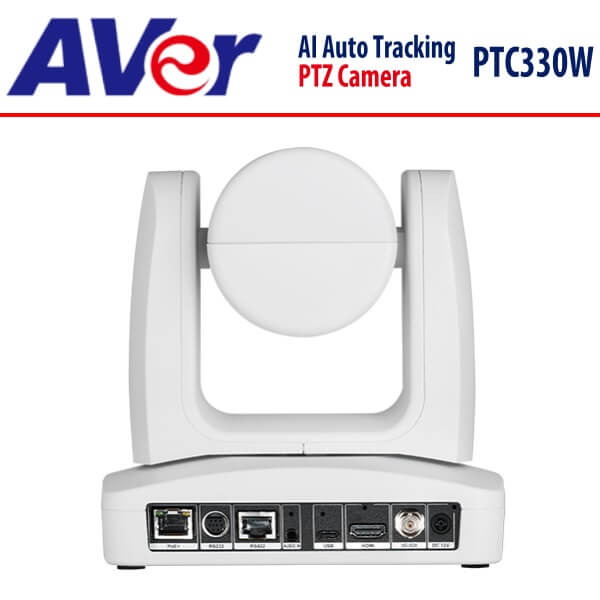

Interface

  • Video Outputs : 3G-SDI, HDMI, IP, USB
  • Audio Outputs : 3G-SDI, HDMI, IP, USB
  • Audio Inputs : MIC in, Line in

General

  • Power Requirement : AC100V – AC240V to DC12V/5A
  • Power Consumption : 18W
  • PoE : PoE+
  • Dimensions (W x H x D) : 180.0 x 183.5 x 145.0 mm
  • Net Weight : 1.7 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: Yes
  • Security : Kensington Slot
  • Remote Control : Infrared
  • Operating Conditions : Temperature: 0°C to +40°C ; Humidity: 20% to 80%
  • Storage Conditions : Temperature: -20°C to +60°C ; Humidity: 20% to 95%

IP Streaming

  • Resolution : 1080p 60fps
  • Network Video Compress Formats : H.264, H.265
  • Maximum Frame Rate : 1080p 60fps
  • Bit-rate Control Modes : VBR, CBR (selectable)
  • Range of Bit-Rate Setting : 512 Kbps to 32 Mbps
  • Network Interfaces : 10 / 100 / 1000 Base-T
  • Multi-Stream Capability : 2 (RTSP / Web Page), 1080p 60fps (max.)
  • Network Protocols : IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
  • NDI|HX Capability : N/A

USB

  • Connector : USB 3.0
  • Video Format : MJPEG
  • Audio Format : PCM
  • Maximum Video Resolution : 1080p
  • USB Video Class : UVC1.1
  • USB Audio Class : UAC1.0

Web UI

  • Live Video Preview : Yes
  • Camera PTZ Control : Pan, Tilt, Zoom, Focus, Preset Control
  • Camera/Image Adjustment : Exposure, White Balance, Picture
  • Network Configuration : DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • IP Search & Configuration Tool: Support Windows® 7 or later

Warranty

  • Camera : 3 Years
  • Accessories : 1 Year
  • Package Contents : Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
  • Optional Accessories : AVer CL01 PTZ Camera Controller, L-Type Ceiling Mount, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable
