AVer PTZ330N Dubai UAE

The AVer PTZ330N provides flexibility and extensive applications through a single IP cable, simplifying live-production workflows by transmitting various video and audio signals efficiently and rapidly. The AVer PTZ330N presents every angle to make the content richer and more impressive for a wide range of uses, including studio productions, live events, worship services, auditorium lectures, sports and gaming competitions, online and distance learning classes, multinational conferences, personnel training sessions, and more. Enjoy efficient and simple setup, and create comprehensive NDI-based productions.

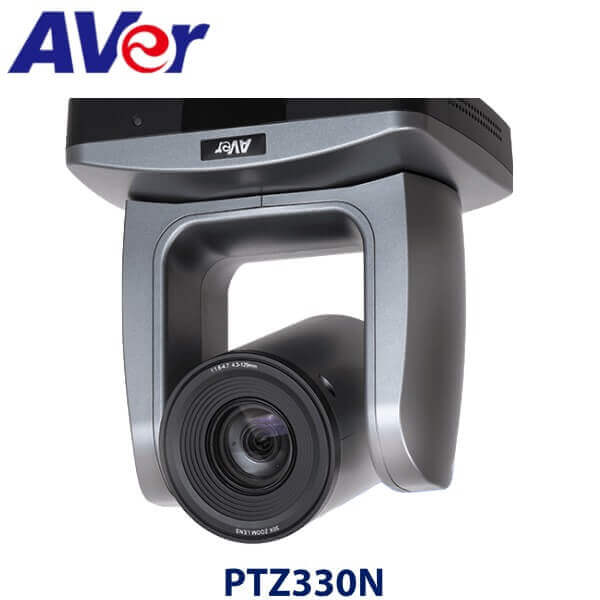

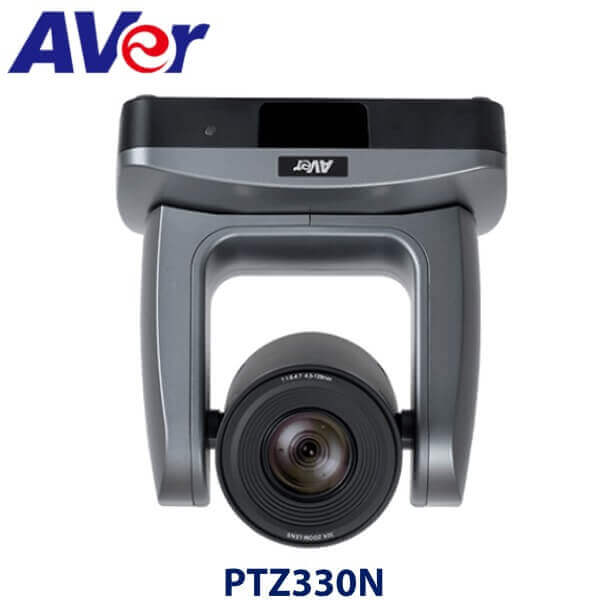

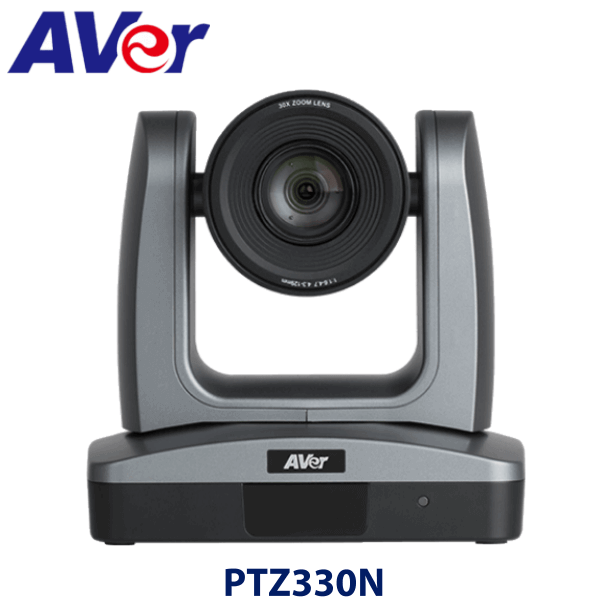

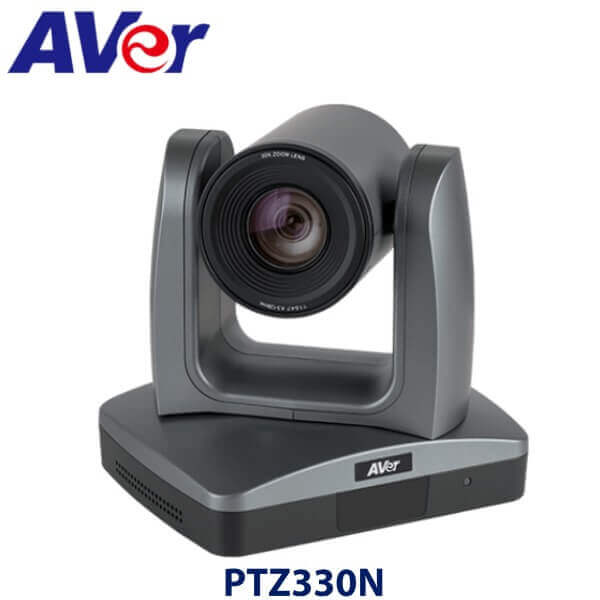

AVer PTZ330N PTZ Live Streaming Camera Dubai

The AVer PTZ330N 30X PTZ Camera allows users to shoot 1080p images and videos via a 1/2″8 CMOS sensor.AVer PTZ330N Dubai features an impressive 10 angle presets via IR, and a further 255 presets via RS-232. Users are also able to pan between 170° and -30, and a 90° tilt range and speed. The camera also offers HDMI and 3G-SDI outputs, stereo audio input, RS-422, RS-232, LAN, and USB Micro-B control interfaces. Feel and functions can also be streamlined through the SmartShoot Content Capture, on top of adjusting the Field of View when recording courtesy of the SmartFrame feature. Featuring an Artificial Intelligent Auto Tracking Pan-Tilt-Zoom Camera, the PTZ330N is a must-have device engineered with cutting edge AVer technology.

AVer PTZ330N Features :

  • Expand your Reach with Full NDI®|HX
    • The PTZ330N is compliant with the usually rigorous NDI standards, guaranteeing users low latency for camera control, switching, and streaming via IP connection. NDI allows users multiple video systems to identify and communicate seamlessly with each other over IP. It can encode, transmit and pick several streams of audio and video content while retaining high quality, low latency, and frame accuracy in real-time. This is a huge benefit for video devices with network connection, from visual mixers, graphics systems, and capture cards. It is, therefore, possible to increase tenfold the number of sources for your live productions without plugging the devices directly, moving locations, purchasing expensive high-bandwidth networks. This feature makes live broadcasting easier and faster, giving you the freedom to stream to expansive viewers without the need for extremely complicated and highly-priced equipment. Now you can push the efficiency and flexibility of IP workflows to the next level.
  • Improved Quality with the CMOS Sensor
    • Built with a 1/2.8-type Exmor™ CMOS sensor, the PTZ330N delivers amazing autofocus to improve the quality of your videos. Even in poor or extremely bright lighting conditions, the colors remain brilliant, and video details are retained in 1080p at 60fps. This outstanding performance and amazing quality improve convenience for your live recordings.
  • Flip and Mirror Recording
    • Offered in the color choice of grey and white, it brings on board a 30X optical zoom as well as a 12X digital zoom for Flip and Mirror recording. It’s versatility makes the PTZ330N an impressive workhorse for businesses, medical facilities and classrooms. It makes use of a Human Detection algorithm to offer Presenter and Zoom auto-tracking modes. The AVer PTZ330N is your key to magnificent video and audio capturing, Content Streaming, Recording, and Broadcasting.
  • 4K Resolution
    • The camera on the PTZ330N has a 4K output, on top of auto-tracking precision and Ultra High Definition resolution of 1080p at 60 frames per second,  resulting in crystal clear images. Its inbuilt sensor offers users next-level video performance for every frame of the production, complete with auto exposure, autofocus, and auto white balance.
  • Zooming Performance
    • The AVer PTZ330N has a zooming power of up to 30 × optical zooms.Even when the camera is panning and tilting, it works efficiently to allow you to highlight content and randomly change your shooting angles. The module has been designed to provide users with clear video content devoid of motion blur and digital noise, even when images are zoomed in to the maximum.
  • Instant Focus Redirect
    • The Aver PTZ330N enables you to redirect focus by simply clicking on a target to quickly adjust the shooting angle and start the tracking process. This has been made even easier as it can be operated through a remote control or Web UI.
  • Pan, Tilt & Zoom
    • The onboard PTZ motorized camera on the AVer PTZ330N adjusts focus, pans,and  tilts speedily with no sound, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in. This advanced feature of the AVer PTZ330N camera makes it suitable for use in large rooms and auditoriums.
  • Motion Control Stability
    • With the freedom to customize speed settings from 0.1°to 200° per second, the AVer PTZ330N  gives you maximum precision and agility with controls like panning, tilting and rotation.
  • Impressive 255 Preset Locations
    • On top of the 10 preset locations that can be achieved via the IR remote control, you can capture a wide variety of angles as well as shift the recording view in an instant, thanks to the 255 preset location onboard the AVer PTZ330N. This is made possible through VISCA via RS232 and RS422 functionalities. Furthermore, the AVer SmartShoot technology offers you maximum camera control to enable seamless transitions between the preset areas. This gives you the ability to run multi-camera productions linking into the same PTZ330N thereby saving you time and effort while enjoying unparalleled shooting dynamics.
  • Perfect Framing
    • Infused with AVer’s SmartFrame technology, the PTZ330N offers the user one-touch face targeting optics to help you capture stunning content within the shortest time possible. SmartFrame automatically adjusts the FOV to include everyone on the screen, giving you quick turnaround time to record conferences, lectures and presentations with minimum effort. With the AVer  PTZ330N, creating amazing video content has been made easy, quick, and enjoyable.
  • Easy Tracking
    • The camera’s SmartShoot feature enables the user to easily track their target everywhere. The Aver PTZ330N affords the presenter unlimited freedom to move around the room and interact with the audience without fear of being out of focus as the camera continuously tracks subjects, thanks to its SmartShoot’s preset zones. The camera focuses on its target, ignoring other distractions during your presentation, which frees you from having to sit in the same position throughout.

AVer PTZ330N Specifications :

  • Camera
    • Image sensor: 1/2.8″ 1080p 60fps Exmor CMOS
    • Effective Picture Elements: Approx. 2.1 megapixels
  • Output Resolution
    • Auto :1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
    • Minimum Illumination: 0.3 lux (IRE50, F1.6, 30fps)
    • S/N Ratio: > 50dB
    • Gain: Auto / Manual
    • TV Line: 800 (Center/Wide), 600 (Corner/Wide)
    • Shutter Speed 1/1s – 1/32,000s
    • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC
    • White Balance: Auto / Indoor / Outdoor/ One-push/ Manual (2500 – 10000)
    • Optical Zoom: 30X
    • Digital Zoom: 12X
    • Horizontal Viewing Angle: 67° (Wide) – 2.3° (Tele)
    • Focal length: f = 4.3 mm (Wide) – 129 mm (Tele)
    • Aperture (Iris): F = 1.6 (Wide) – 4.7 (Tele)
    • Minimum Working Distance: 0.01 m (Wide), 1.2 m (Tele)
    • Pan/Tilt Angle: Pan: – 170° ; Tilt: 90° / -30°
    • Pan/Tilt Speed (manual) : Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
    • Preset Speed: Pan: 200° /sec, Tilt: 200° /sec
    • Preset Position:10 (IR), 255 (RS-232)
    • Camera Control – Interface :RS-232 (DIN9) / RS-422 (RJ45)
    • Camera Control – Protocol: VISCA (RS-232/RS-422/IP), CGI (IP)
    • Image Processing: Noise Reduction (2/3D), Flip, Mirror
    • Power Frequency: Auto / 50Hz / 60Hz
  • Audio
    • Channel: 2ch (Stereo)
    • Codec: AAC-LC (48/44.1/32/24K), G.711/PCM
    • Sample Rate: 48/44.1/32/24/16/8Khz
  • Interface
    • Video Output: 3G-SDI, HDMI, IP, USB
    • Audio Output: 3G-SDI, HDMI, IP, USB
    • Audio Input: MIC / Line in
  • General
    • Power Requirement: AC100V-AC240V to DC12V/5A
    • PoE : POE (IEEE 802.3at), Class 4
    • Operating Condition: Temperature: 0°C – 40°C; Humidity: 20% – 80%
    • Storage Condition: Temperature: -20°C – 60°C; Humidity: 20% – 95%
    • Dimensions: L=180 mm, W= 145 mm, H= 183.5 mm
    • Weight: 1.62 kg
    • Application: Indoor
    • Security: Kensington slot
    • Remote Control: Infrared
    • Accessories: Remote control, 12V/5A power adapter
  • IP Streaming
    • Resolution: 1920×1080, 1280×720, 960×540, 640×480
    • Network Video Compress Format: H.264 (High Profile), MJPEG
    • Maximum Frame Rate: H.264: 60fps (1920×1080), MJPEG: 30fps (1920×1080)
    • Bit-rate Control Mode: VBR / CBR (selectable)
    • Range of Bit-rate setting: 512Kbps – 32Mbps
    • Network Interface: 10/100/1000Base-T
    • Multi-stream Capability: 2
    • Network Protocol: IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP
  • USB
    • Connector: Micro-USB 2.0
    • Video Format: YUV, MJPEG, H.264
    • Maximum Video Resolution: Up to 1080p
    • USB Video Class: UVC1.1
    • USB Audio Class: UAC1.0
  • Web UI
    • Live Video Preview: Yes
    • Camera PTZ Control: Pan / Tilt / Zoom / Focus / Preset Control
    • Camera / Image Adjustment: Exposure / White Balance / Picture
    • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
  • Software Tools
    • Device IP Searching, Configuration Tool: Windows Application

What’s in the Box :

  • The AVer PTZ330N camera
  • Remote control
  • Batteries
  • 12V/5A Power adapter
  • Smart User Manual
