AVer PTC500S UAE

Rating

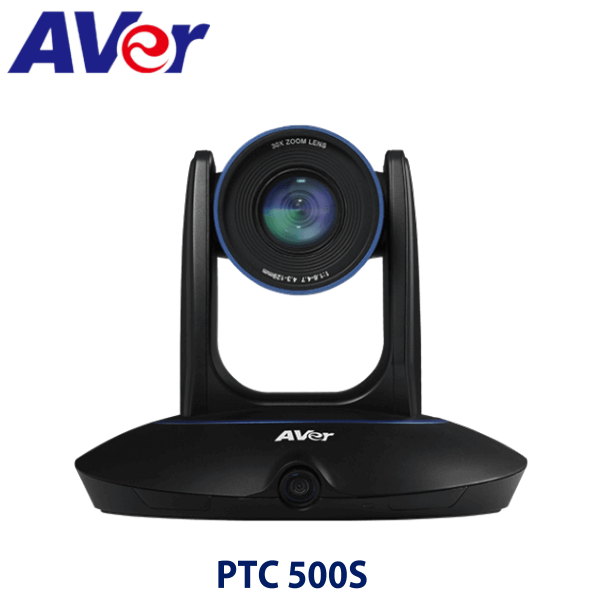

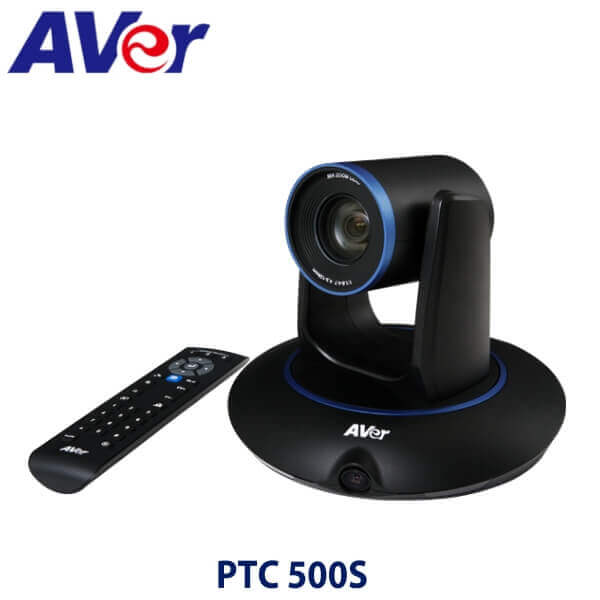

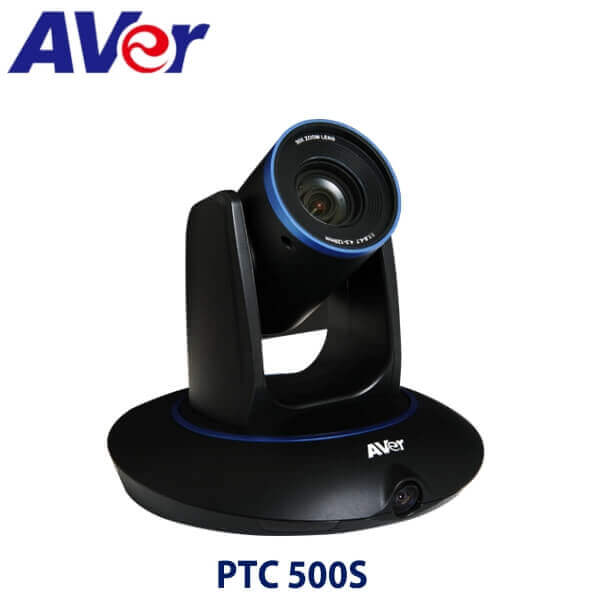

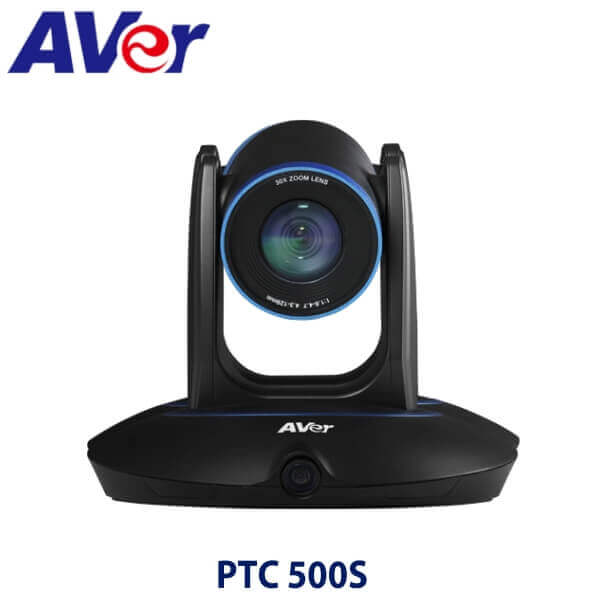

AVer PTC500S Dubai UAE

The AVer PTC500S Dubai UAE is the ideal professional tracking camera for all kinds of applications. Boasting a powerful PTZ camera with 30X optical zoom, Aver PTC500S can track and film moving people or objects even if other people cross through its field of vision. It also features a wide-angle camera that provides a panoramic view for conveniently previewing the whole space. Users can set up through AVer’s AcuControl software, which offers an intuitive interface with a variety of precise setup options. With its market-leading quality and customizability, the Aver PTC500 creates an engaging video for streaming, sharing, and recording a variety of activities, such as lectures, demonstrations, video conferences, speeches, and more.

Description

AVer PTC500S Video Conference Dubai

The AVer PTC500S series uses Full High Definition quality of 1080p at 60 frames per second to accord you with excellent performance when it comes to balancing colour, brightness, and resolution. the AVer PTC500S series, you get to choose from a range of installation and operation options. Its ability to customize settings allows you to engage in video streaming and enjoy other activities such as content sharing, recording of lectures, video conferences, demonstrations, and speeches. You can also adjust and start the PIP mode while capturing to view the and the rest of the room simultaneously. This feature offers you a chance to make crystal clear presentations and never worry about missing out on important meeting details, regardless of the shape, size, and type of the room. The camera focuses on its target, ignoring other distractions during your presentation, which frees you from having to sit in the same position throughout.

AVer PTC500S Features :

  •  Hi-tech Auto Tracking Camera
    • The technologically advanced AVer PTC500S tracking camera has been meticulously built to enable full compatibility with all available applications. It has a magnificent PTZ camera with an optical zoom that does not only track but also film subjects and objects in motion, even if distractions cross through its field of vision. The system also has a wide-angle camera that offers excellent panoramic views, ensuring that you can easily preview the whole space. The AVer PTC500S camera delivers high-accuracy tracking with an in-built ability to set 1 target zone and 8 blocking zones. Not even the slightest distraction compromises the Aver PTC500S’ unrivaled tracking accuracy. With the AVer PTC500S series, you get to choose from a range of installation and operation options. Its ability to customize settings allows you to engage in video streaming and enjoy other activities such as content sharing, recording of lectures, video conferences, demonstrations, and speeches.
  • Ultra High Definition Imaging System
    • The AVer PTC500S series uses Full High Definition quality of 1080p at 60 frames per second to accord you with excellent performance when it comes to balancing color, brightness, and resolution. This ensures that you can clearly see all the shared pictures, texts, tables, and videos during presentations, even if you are using a projector.
  • 30 × Optical Zoom Power
    • The AVer PTC500S camera comes with an Ultra High Definition picture resolution of 1080p at 60 frames per second, therefore crystal-clear images. With its 30× optical zoom ability, the AVer PTC500S camera is able to capture clear images of people and objects in the room, regardless of distance from the unit, minus digital noise and pixelation.
  • Panoramic View
    • This magnificent design of the technologically advanced AVer PTC500S series integrates a PTZ camera with an extremely wide 120° Field of View secondary camera to simply enable you to track the speaker and capture a wide panoramic view of the conference room at ago. You can also adjust and start the PIP mode while capturing to view the and the rest of the room simultaneously. This feature offers you a chance to make crystal clear presentations and never worry about missing out on important meeting details, regardless of the shape, size and type of the room.
  • Pan, Tilt & Zoom
    • The onboard PTZ motorized camera on the AVer PTC500S adjusts focus, pans at an angle of 350°, and tilts speedily at an angle of 120° radius with absolutely no sound at all, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in. This advanced feature of the AVer PTC500S camera makes it suitable for use in large rooms and auditoriums.
  • Multi – Presenter Detection Modes
    • The AVer PTC500S camera has been brilliantly engineered to support two different Presenter Detection Modes which include the Wide Area Tracking Mode and the Stage Tracking Mode. This feature works seamlessly to accurately detect and capture then track the target whenever there are two or more people in the effective presentation area. In learning spaces, it allows tutors to easily conduct group discussions, quiz contests, interactive games, and many other learning functions. The AVer PTC500S, therefore, enables you to capture every activity of the learning session.
  • Wide Area Tracking
    • This is a brilliant Artificial Intelligence mode of the AVer PTC500S which enables you to easily track your target everywhere. The Aver PTC500S offers the one leading the meeting unlimited freedom to move around the room and interact with the audience without fear of being out of focus as the camera continuously tracks subjects. The camera focuses on its target, ignoring other distractions during your presentation, which frees you from having to sit in the same position throughout.
  • Stage Tracking
    • You can simply achieve perfect hands – free video of very high quality while streaming and recording using the Stage Tracking Artificial Intelligence Mode of the AVer PTC500S. This mode enables you to continuously track your target using Effective Zone Settings which allows for up to 8 blocking zones to capture and record clear studio-quality videos.
  • Segment Tracking
    • When using the hi-tech AVer PTC500S camera, you can enjoy capturing content on more than one display while carrying out your presentations. It allows you to create up to 4 content zones while perfectly capturing the feed on the display rather than the presenter, thus ensuring you never miss out on any content.

AVer PTC500S Specifications :

  • PTZ Camera
    • Image Sensor : 1/ 2.8″ 60fps low lux CMOS Sensor
    • Effective Picture Elements: 2 Megapixels
    • Output Resolution : auto, 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30,720p/60
    • Optical zoom: 30×
    • Digital zoom: 2×
    • Lens focal length : f =4.3mm(Wide), 129mm(Tele)
    • Iris : F = 1.6mm (Wide), 4.7(Tele)
    • View of Angle: DFOV = 76° (wide) – 3° (tele)
    • Minimum Illumination: IRE50 0.47 lux (60fps) ; 0.23 lux (30fps)
    • Preset Number: 10 locations by remote (256 via RS-232)
    • Minimum Working Distance: 1.2 meter at tele-end (30X) ; 0.1 meter at wide-end (1X)
    • White Balance: auto/manual (2500 – 10000)
    • Gain: auto/manual
    • Electronic Shutter: 1/5 – 1/32,000 s
    • Backlight Compensation (BLC): off / on
    • Exposure: auto / shutter priority / iris priority / manual
    • Noise Reduction: off / low / medium / high
    • Frequency: auto / 50 Hz / 60 Hz
    • S/N Ratio: >50 dB
    • Horizontal Resolution: Center (800 TV lines) ; Corner (600 TV lines)
  • Pan & Tilt Parameters
    • Pan Rotation: -175° (left) 175° (right)
    • Tilt Rotation: -30° (down) 90° (up)
    • Pan Control Speed: 2° – 50°/sec
    • Tilt Control Speed: 2° – 50°/sec
    • Preset Speed: pan 160°/sec ; tilt 160°/sec
  •  Panoramic Camera (Full View)
    • Image Sensor: 1/2.8″ 60fps low lux CMOS sensor
    • Effective Picture Elements: 2 megapixels
    • Output Resolution: auto, 1080p/60, 1080p/30, 720p/60
    • Lens Focal Length: 2.12 mm
    • White Balance: auto
    • Exposure: auto
    • FOV: DFOV = 120°, HFOV = 110°, VFOV = 74.5°
  •  Interface / Streaming / Protocol
    • Video Output: 3G-SDI*2, HDMI*1, IP (RJ45)
    • Video Output Capability: up to 1080p/60fps
    • Remote Control: RS-232, IP
    • Baud Rate: 115200 / 9600 / 4800 / 2400 bps
    • Network Interface: 10 / 100 / 1000 base-T, support Wake-on-LAN
    • Network Video Compress Format: H.264
    • Network Protocol: RTSP, RTMP, ONVIF
    • IP Video Streaming: dual video streaming (PTZ and panoramic view)
    • Control Protocol: VISCA / Pelco-D / Pelco-P
    • Power: Power adapter DC 12V
  •  System
    • Remote IR: IR sensor
    • Audio: PCM, AAC-LC, G.711
    • LED: power (blue = on, red = off)
    • Security: Kensington slot
    • Infrared Remote: receiver on front of camera
    • Power Adapter: AC 110V – AC 220V to DC 12V/5A
    • Consumption: 24 W (max.)
    • Operating Temperature: 0℃ – 40℃
    • Operating Humidity: 20% – 80%
    • Storage Temperature: -20℃ – 60℃
    • Storage Humidity: 20% – 95%
    • Dimensions: L = 201 mm, W = 210 mm, H = 176 mm
    • Weight: 1.75 kg
    • Accessories: remote control, 12V/5A power adapter, quick guide
  • Web UI
    • Browser IP access (Chrome, Firefox, IE, etc.)

What’s in the Box :

  • The AVer PTC500S camera
  • Remote control
  • Batteries
  • 12V/5A Power Adapter
  • Power Cord
  • L – Type Wall Mount
  • HDMI/SDI to USB converter
