Cisco Catalyst1000-16TE2GL Dubai

Increased PoE budget, advanced software options, and larger-scale access control tables make the Cisco Catalyst1000-16TE2GL Dubai a clear improvement over preceding models.

Category:

Description

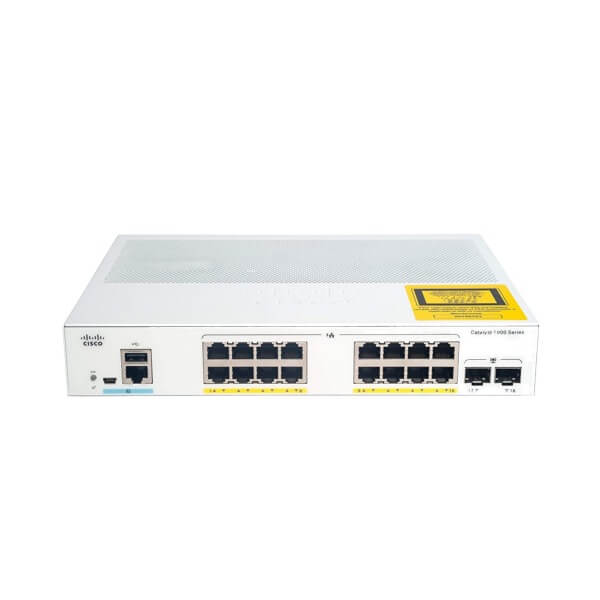

Cisco Catalyst1000-16TE2GL Network Switch Dubai

The Cisco Catalyst1000-16TE2GL Dubai is a fixed managed Gigabit Ethernet enterprise-class Layer 2 switch designed for small businesses and branch offices. It is a simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. Cisco Catalyst1000-16TE2GL switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Features

Simple

Use the intuitive Mobile App and Cisco Business Dashboard to automate the deployment, monitoring, and lifecycle management of your Cisco Business devices.

Flexible

Customizable switching, routing, and wireless solution catering to every stage of your business. Extensive portfolio addresses your technical and budget requirements.

Secure

Pervasive security helps safeguard your network and the privacy of your customers.

Cisco IOS

Experience unparalleled resiliency and performance with Cisco IOS on the Cisco Catalyst1000-16TE2GL Dubai.

Simplified management

Cisco Catalyst1000-16TE2GL Dubai switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.

Enhanced security

With Cisco Catalyst1000-16TE2GL Dubai switches’ larger-scale access-control tables and additional security features, you can segment traffic for greater security.

Improved hardware and software

Increased PoE budget, advanced software options, and larger-scale access control tables make the Cisco Catalyst1000-16TE2GL Dubai a clear improvement over preceding models.

Technical Specs

General
Device Type Switch – 16 ports – managed
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 16 x 10/100/1000 + 2 x Gigabit SFP (uplink)
Performance
  • Forwarding bandwidth ; 18 Gbps
  • Switching bandwidth ; 36 Gbps
  • Forwarding rate (64‑byte L3 packets) ; 26.78 Mpps
Capacity
  • Unicast MAC addresses ; 15360
  • IPv4 unicast direct routes ; 542
  • IPv4 unicast indirect routes ; 256
  • IPv6 unicast direct routes ; 414
  • IPv6 unicast indirect routes ; 128
  • IPv4 routes (static) ; 16
  • IPv6 routes (static) ; 16
  • IPv4 routes (Multicast) ; 1024
  • IPv6 groups (Multicast) ; 1024
  • IPv4/MAC security ACEs ; 600
  • IPv6 security ACEs ; 600
  • Active VLANs ; 256
  • VLAN IDs ; 4094
  • STP instances ; 64
  • SPAN sessions ; 4
  • MTU-L3 packet ; 9198 byte
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor X ARM ; 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status
Expansion / Connectivity
Interfaces
  • 16 x 1000Base-T RJ-45
  • 2 x 1000Base-X SFP uplink
  • 1 x management RJ-45
  • 1 x mini-USB Type B
  • 1 x USB Type A
Power
Power Device External power adapter
Installed Qty 1
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Dimensions & Weight
Width 10.6 in
Depth 8.3 in
Height 1.7 in
Weight 3.13 lbs
Manufacturer Warranty
Service & Support
  • Limited warranty – replacement – lifetime – response time ; next business day
  • Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 – 90%
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95%
