Cisco Catalyst3560X-24S Dubai

Rating

Cisco Catalyst3560X-24S Dubai

The Cisco Catalyst3560X-24S Dubai enhances productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

Category:

Description

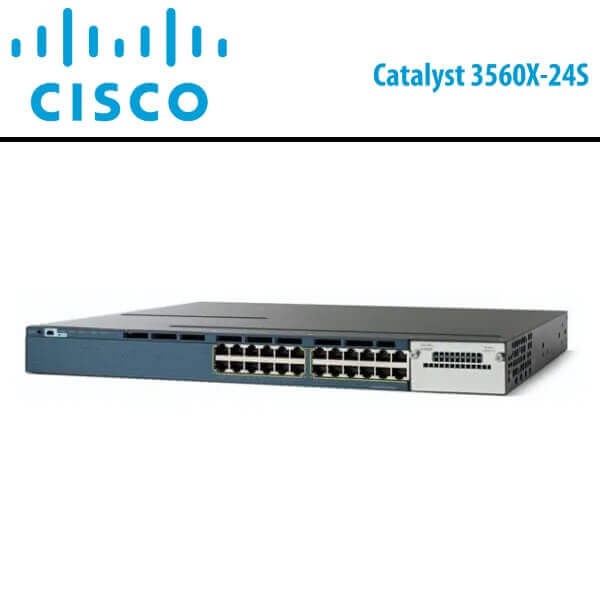

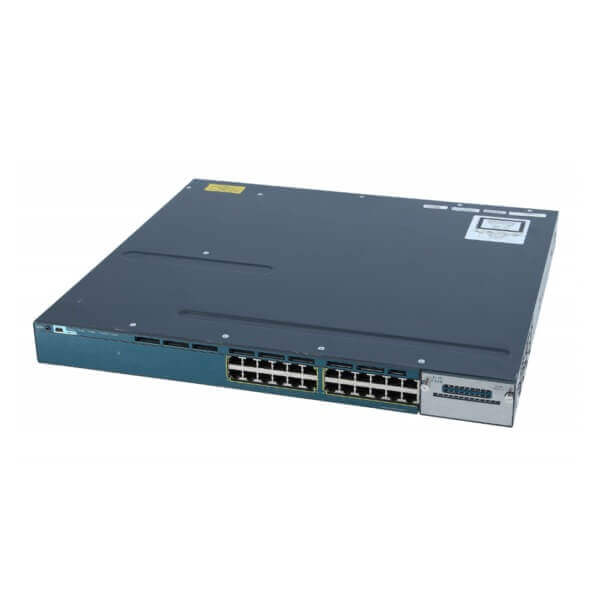

Cisco Catalyst3560X-24S Network Switch Dubai

The Cisco Catalyst3560X-24S Dubai is an enterprise-class, standalone switch that  provides high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst3560X-24S Dubai enhances productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

Primary features

  • 24 and 48 10/100/1000 PoE+, non-PoE models, and 12 and 24 GE SFP port models
  • 24 and 48 10/100/1000 UPOE-capable models with Energy Efficient Ethernet (EEE) support
  • Four optional uplink network modules with GE or 10GE ports
  • Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor
  • Cisco Catalyst3560X-24S Dubai is fitted with dual redundant, modular power supplies and fans
  • Media Access Control Security (MACsec) hardware-based encryption
  • Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
  • Open Shortest Path First (OSPF) for routed access in IP Base image
  • IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware
  • Cisco Catalyst3560X-24S Dubai comes with enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support
  • The Cisco Catalyst3560X-24S Dubai is integrated with enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network

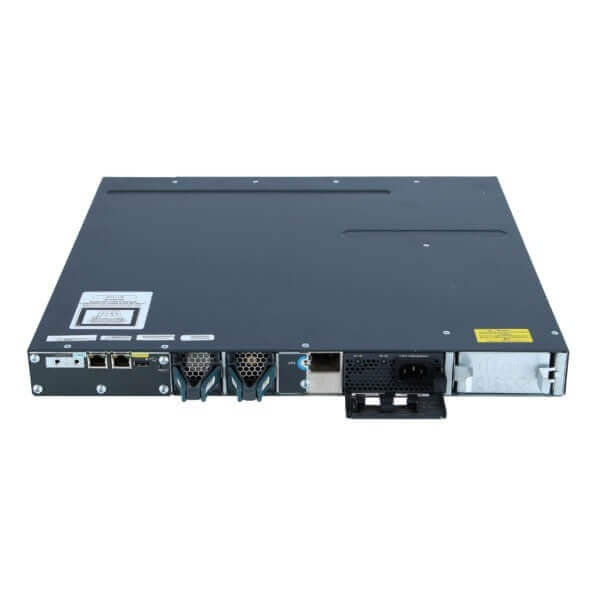

  • USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Technical Details

Co2 Savings 343.78
Rack mounting Yes
Stackable No
Form factor 1U
Colour of product Blue
LED indicators Yes
Safety UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS, CB, AS/NZS 60950-1CE, NOM, GOST
Electromagnetic compatibility FCC, EN 55022B, VCCI, AS/NZS 3548, KCC, CE, GOST
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
ARP inspection Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Cable types supported Cat5e
Full duplex Yes
Auto MDI/MDI-X Yes
Spanning tree protocol Yes
Broadcast storm control Yes
Link aggregation Yes
Rate limiting Yes
VLAN support Yes
Virtual LAN features Private VLAN
Number of VLANs 1005
Throughput 65.5 Mpps
Jumbo frames support Yes
Jumbo frames 9216
DHCP features DHCP server,DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
SSH/SSL support Yes
Static port security Yes
Multicast support Yes
Management protocols SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Internal memory 256 MB
Flash memory 64 MB
Noise level 43 dB
Mean time between failures (MTBF) 208218 h
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power over Ethernet (PoE) No
Operating temperature (T-T) -5 – 40°C
Storage temperature (T-T) -40 – 70°C
Operating relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 4000 m
Width 445 mm
Depth 460 mm
Height 44.5 mm
Weight 7 kg
