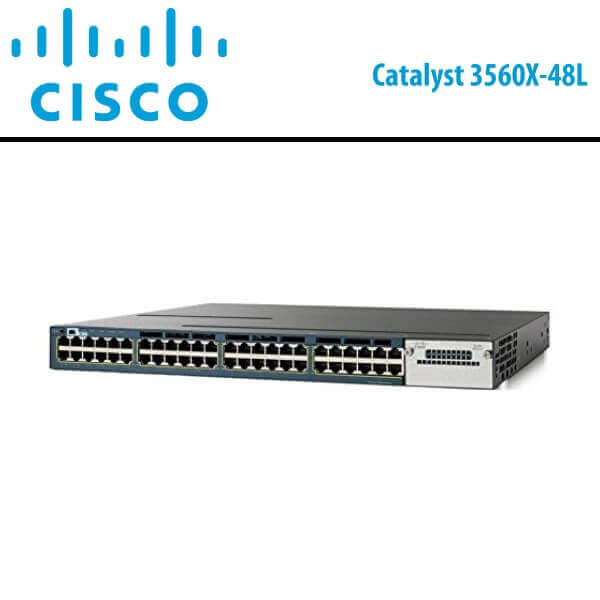

Cisco Catalyst3560X-48L Dubai

Cisco Catalyst3560X-48L Dubai is designed for enterprise access layer switching; however, customers can transparently upgrade the software feature to by purchasing either IP base license or IP services license to activate layer 3 capability, 1005 VLans supporting.

Category:

Description

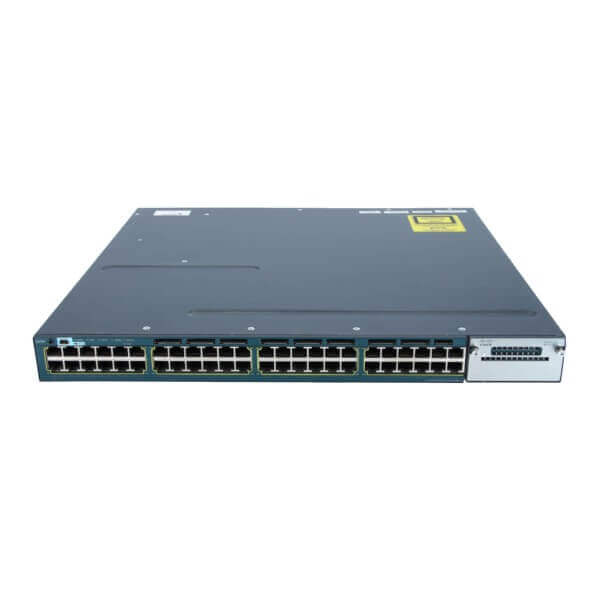

Cisco Catalyst3560X-48L Network Switch Dubai

The Cisco Catalyst3560X-48L Dubai is a 48-Gigabit Ethernet ports standalone switch with no stacking option in LAN base feature set. Four optional network modules and license-base software feature offer flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. LAN base feature set provide up to 255-Vlans and comprehensive layer 2 feature with static routing and SVI interface supporting. Cisco Catalyst3560X-48L Dubai is designed for enterprise access layer switching; however, customers can transparently upgrade the software feature to by purchasing either IP base license or IP services license to activate layer 3 capability, 1005 VLans supporting. The switch comes with one default power supply module, customers can purchase additional power supply insert into power supply bay 2 in order to power redundancy.

Features

  • 48 * 10/100/1000 Gigabit Ethernet ports with optional uplink network modules
  • Dual redundant, modular power supplies and fans
  • LAN base feature set with upgrade option to IP base or IP service
  • Layer 2 switching with static routing and SVI supporting64MB flash and 256 memory (DRAM)USB Type-A
  • Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Technical Specs

Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3560X-48T-L
Product Type Switch – 48 ports – Managed
Form Factor Rack mountable – 1U
Switch Ports 48 x 10/100/1000 Ethernet Ports Ethernet Ports
Performance Switching capacity : 160 Gbps
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces
  • 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45
  • USB : 1 x 4 PIN USB Type A
  • USB : 1 x console – mini-USB Type B – management
  • 1 x RS-232 – RJ-45 – management
  • 1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot

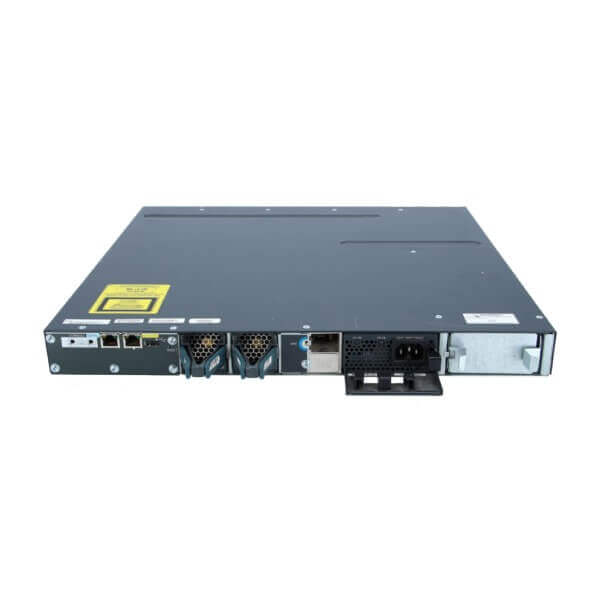

Power Supply
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width 44.5 cm
Depth 46 cm
Height 4.5 cm
Weight 7.3 kg
Rack Mounting Kit Optional
MTBF 186,778 hour(s)
Compliant Standards CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included Cisco IOS LAN Base
