Cisco Catalyst3850-24E Dubai

Rating

Cisco Catalyst3850-24E Dubai

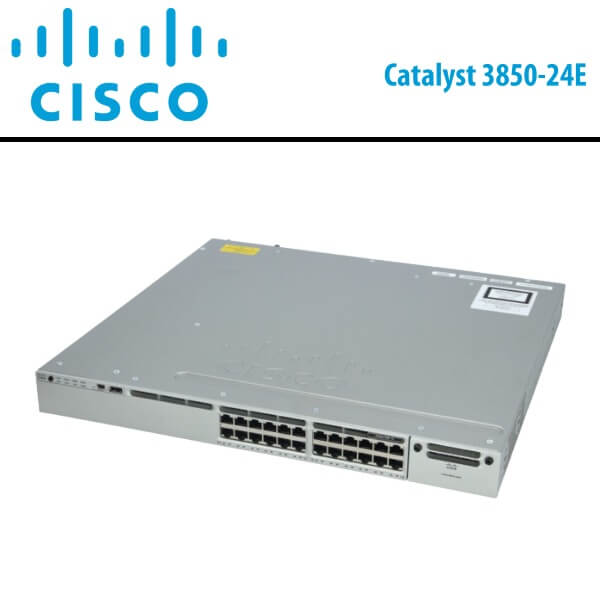

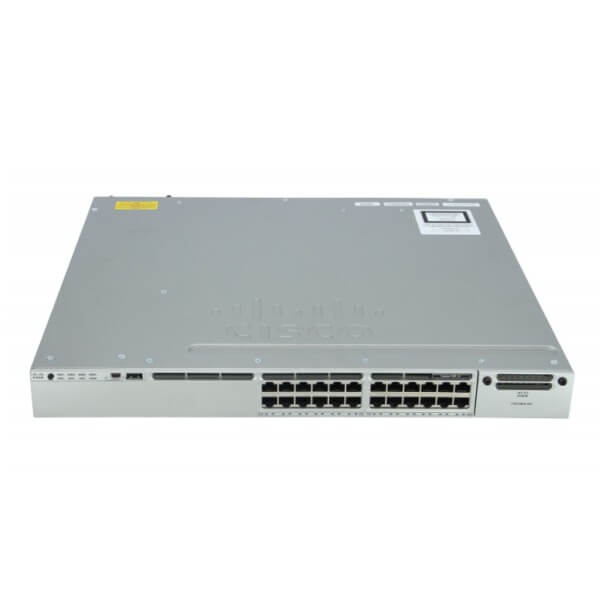

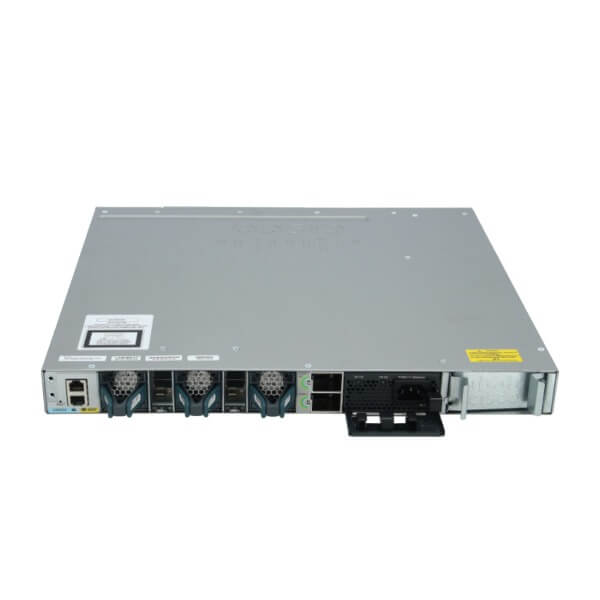

The Cisco Catalyst3850-24E Dubai supports full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE®), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, and redundant fans and power supplies.

Category:

Description

Cisco Catalyst3850-24E Network Switch Dubai

The Cisco Catalyst3850-24E Dubai is a stackable enterprise level switch and integrated with 24 SFP ports in IP service feature set. WS-C3850-24S-E enables sophisticated layer 2-4 switching capability by providing the optimal solution for access layer and aggregation layer.

The Cisco Catalyst3850-24E Dubai Switch provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology.

The Cisco Catalyst3850-24E supports full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, and redundant fans and power supplies.

Features

  • Cisco Catalyst3850-24E Dubai has Integrated wireless controller capability with support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
  • 24 10/100/1000 Ethernet PoE+ [435W] ports with Energy-Efficient Ethernet (EEE)
  • Cisco Catalyst3850-24E Dubai is integrated with Cisco StackWise-480 technology which provides scalability and resiliency with 480 Gbps of stack throughput
  • Cisco StackPower technology provides power stacking among stack members for power redundancy
  • Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 Rack Unit (RU) form factor
  • 715WAC power supply 1 RU
  • IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6
  • Cisco Catalyst3850-24E Dubai supports IEEE 802.1ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS
  • Software support for IPv4 and IPv6 routing, multicast routing, modular Quality of Service (QoS), Flexible NetFlow (FNF), and enhanced security features
  • Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features
  • Cisco Catalyst3850-24E Dubai offers Cisco DNA services delivered through Cisco ONE Software, providing simplified, high-value solutions with license portability and flexibility
  • Support for AES-256 with the powerful MACSEC 256-bit for SFP+ and Multigigabit models and 128-bit encryption algorithm available on all models
  • Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Technical Specs
