Cisco SG550XG-24F Dubai

Rating

Cisco SG550XG-24F Dubai

Cisco SG550XG-24F Dubai includes capabilities and management options you need to support applications today and in the future, such as strong security, advanced QoS, comprehensive IPv6 support, and Layer 3 dynamic routing.

Category:

Description

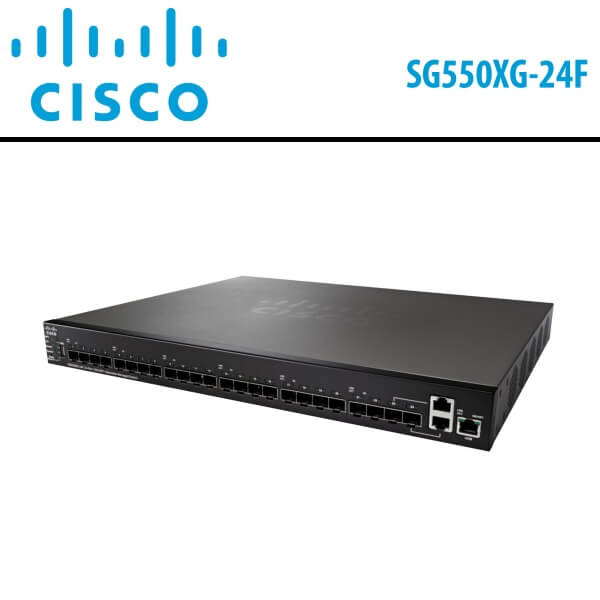

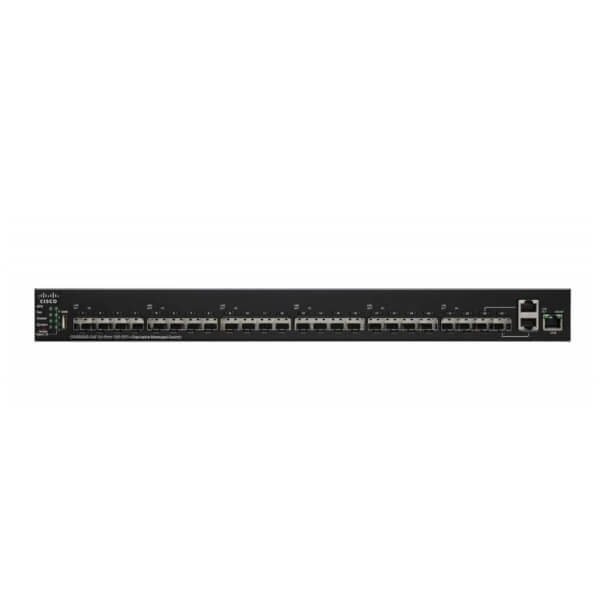

Cisco SG550XG-24F Network Switch Dubai

The Cisco SG550XG-24F Dubai Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.

Features :

Advanced features for demanding environments
Get 10 Gigabit Ethernet and advanced capabilities to accelerate your business growth. Our next-generation stackable managed switches can bring immediate productivity gains to your organization. They also get your network ready for more bandwidth-hungry applications in the future.

Affordable 10 Gigabit Ethernet
10 Gigabit Ethernet delivers 10 times the performance to your network to promote higher productivity and business efficiency. The Cisco SG550XG-24F Dubai breaks the barrier of 10 Gigabit Ethernet adoptions with exceptional affordability.

Superior reliability and resiliency
Keep your network running so your business never slows down. The Cisco SG550XG-24F Dubai offers true stacking, built-in fan redundancy, a redundant power supply connector, and high-availability protocols.

Advanced features
The  Cisco SG550XG-24F Dubai includes capabilities and management options you need to support applications today and in the future, such as strong security, advanced QoS, comprehensive IPv6 support, and Layer 3 dynamic routing.

Power over Ethernet
The Power over Ethernet Plus (PoE+) standard provides up to 30 watts of power per port. The Cisco SG550XG-24F Dubai also support 60W PoE on selected ports to power compact switches and high-power wireless access points.

Energy efficiency
A variety of energy-saving features, including energy-detect mode, cable-length detection, and Energy-Efficient Ethernet, provide an eco-friendly and cost-effective network solution without compromising performance.

Specifications

Cables Included 1 x serial cable
Rack Mounting Kit Included
MTBF 642,449.21 hours
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
Localization North America
Dimensions & Weight
Width 17.3 in
Depth 13.8 in
Height 1.7 in
Weight 9.17 lbs
Manufacturer Warranty
Service & Support Details Limited warranty – replacement – lifetime – response time : next business day ¿ Technical support – phone consulting – 1 year Technical support – web support – 1 year
Environmental Parameters
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 90% (non-condensing)
General
Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable
Subtype 10 Gigabit Ethernet
Ports 22 x 10 Gigabit SFP+ + 2 x combo 10GBase-T
Performance
  • Forwarding performance (64-byte packet size) : 357.12 Mpps
  • Switching capacity : 480 Gbps
Capacity
  • VLANs supported : 4094
  • IPv4 routes (static) : 8000
  • IPv6 routes (static) : 4000
  • ACL rules : 2000
  • QoS hardware queues : 8
MAC Address Table Size 64K entries
Jumbo Frame Support 9000 bytes
Max Units In A Stack 8
Routing Protocol RIP, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR
Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP
Encryption Algorithm MD5, SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, 16MB packet buffer, Type of Service (ToS), DiffServ Code Point (DSCP) support, IP source guard, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor X ARM : 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan
Expansion / Connectivity
Interfaces
  • 24 x 10GBase-X SFP+
  • 2 x 10GBase-T RJ-45
  • 1 x management (Gigabit LAN) RJ-45
  • 1 x console RJ-45
  • 1 x USB Type A
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 77.5 Watt
Features Redundant Power System (RPS) connector
