Ubiquiti UAP BeaconHD Dubai

Rating

Ubiquiti UAP BeaconHD Dubai

With 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, Ubiquiti UAP BeaconHD Dubai can communicate with multiple devices simultaneously.

Description

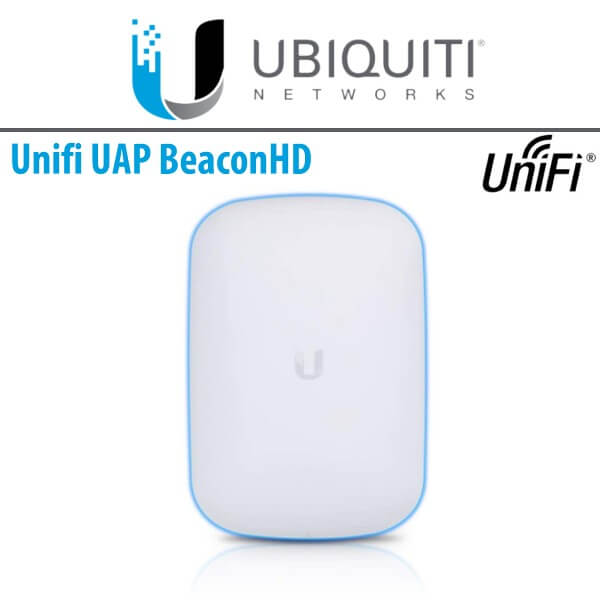

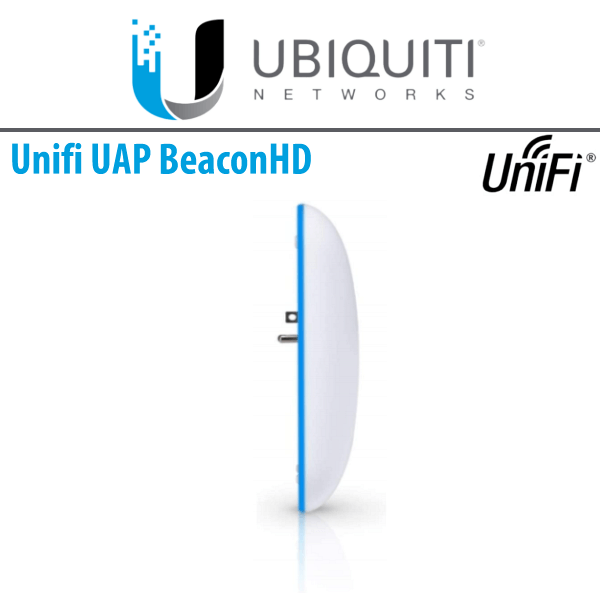

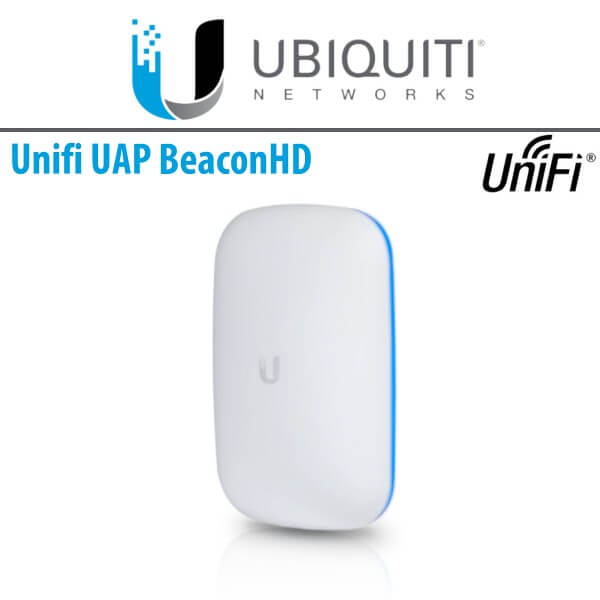

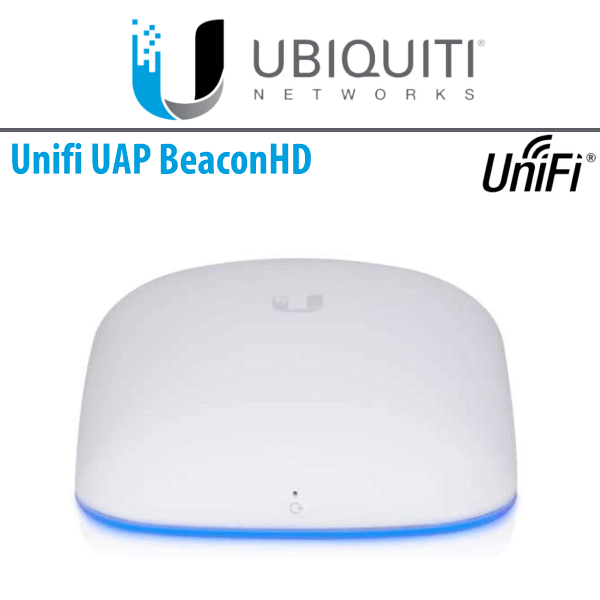

Ubiquiti UAP BeaconHD Access Point Dubai

The Ubiquiti UAP BeaconHD Dubai Access Point is a 802.11ac Wi-Fi access point that utilizes Wave 2 technology and bidirectional uplink design to connect with and relay the signals of other nearby UniFi access points to extend and enhance wireless coverage throughout your home or office. The compact Ubiquiti UAP BeaconHD Dubai plugs into any AC wall outlet and offers a 1.733 Gbps throughput rate over its 5 GHz (4×4 MU-MIMO) band while also improving the radio rates of nearby WiFi devices. The Ubiquiti UAP BeaconHD Dubai can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Features :

  • 802.11ac Wave 2 WiFi technology
  • Establishes bidirectional uplinks to nearby UniFi access points
  • 5 GHz (802.11ac, 4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
  • Improves the radio rate of nearby WiFi devices
  • Get Rid of Dead Spots
    • Installing one or more Ubiquiti UAP BeaconHD Dubai range extender helps to overcome Wi-Fi signal loss in the far corners of homes and offices.
  • 802.11ac Wave 2 MU-MIMO
    • With 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, Access Point BeaconHD Dubai can communicate with multiple devices simultaneously. Wave 2 access points are designed to perform 75% better than Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) devices.
  • 4 x 4 Performance
    • Four internal antennas power the 4 x 4 MIMO streams to deliver high data throughput for video streaming, playing games, and transferring files locally.
  • UniFi Network Controller
    • Accessible via mobile app or web browser, the UniFi Network Controller allows you to organize and manage your network. Use it to get a detailed overview of your networked devices, optimize their performance, and to configure settings such as guest logins.
  • Compatibility
    • The UAP-Beacon HD requires a UniFi Access Point or Dream Machine network device to mesh to.

Technical Specs

Mechanical
Dimensions 169.7 x 112.15 x 32.2 mm (6.68 x 4.42 x 1.27″)
Weight 260 g (9.17 oz)
Networking Interfaces Wi-Fi
Buttons Reset
LED System Status
Processor 880 MHz MIPS 1004KEc
System Memory 128 MB SDRAM
Maximum Power Consumption 11.5W
Supported Voltage Range 100 – 240VAC, 0.3A Max., 50/60 Hz
Power Method AC
Power Supply AC
Power Save Supported
Beamforming Supported
Operating Frequency 2.4 GHz
5 GHz
TX Power (EIRP) 2.4 GHz : 24.8 dBm
5 GHZ : 30 dBm
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID Up to 8 per Radio
Operating Temperature -10 to 60° C (14 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Antenna Gain of 4 Single-Polarity Antennas
(2) Dual-Band 2.4 GHz — 4.5 dBi
5 GHz — 5 dBi
(2) Single-Band 5 GHz — 5 dBi
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac Wave 2 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
