Ubiquiti USW-EnterpriseXG24 Dubai

Rating

Ubiquiti USW-EnterpriseXG24 Dubai

Ubiquiti USW-EnterpriseXG24 Dubai offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately).

Description

Ubiquiti USW-EnterpriseXG24 Network Switch Dubai

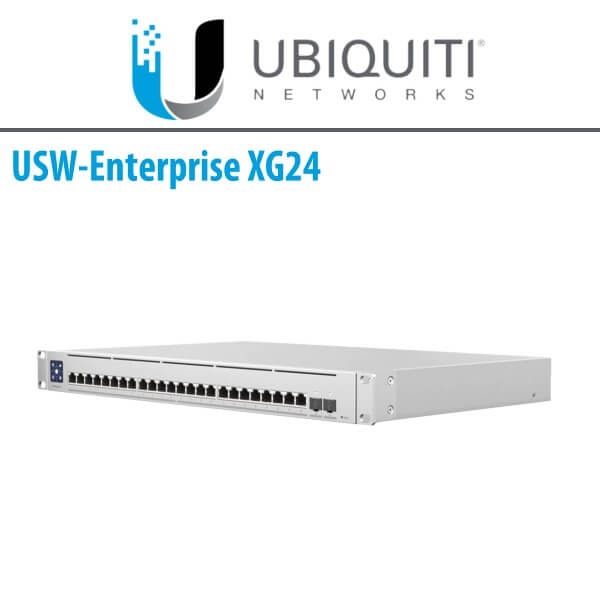

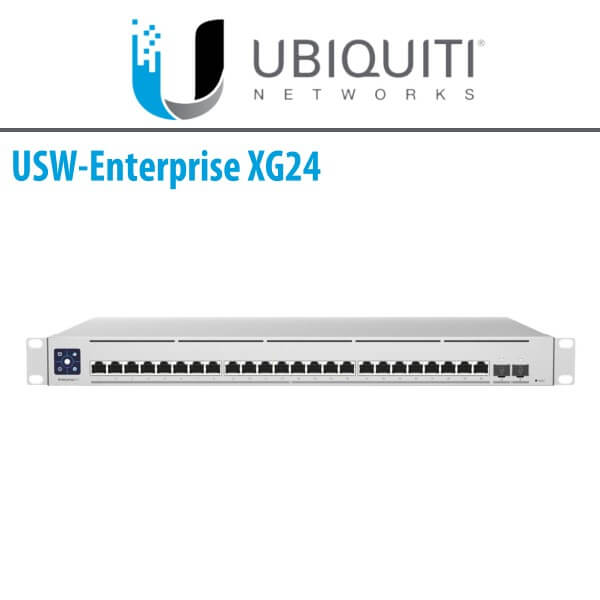

The Ubiquiti USW-EnterpriseXG24 Dubai is a fully managed, multi-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the Ubiquiti USW-EnterpriseXG24 Dubai offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

  • (1) 1.3″ LCM color touchscreen with AR switch management
  • (24) 10GbE RJ45 ports
  • (2) 25G SFP28 ports
  • (1) USP RPS DC input
  • Layer 3 switching features
  • Single-row RJ45 port layout for easy patch panel cable management
  • Managed with the UniFi Network application: Version 6.1.67 and later

Technical Specs

Mechanical
Dimensions 442 x 44 x 285 mm (17.4 x 1.7 x 11.2″)
Weight Without Mount : 4.47 kg (9.85 lb)
With Mount : 4.57 kg (11.02 lb)
Enclosure Materials SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 290 Gbps
Switching Capacity 580 Gbps
Forwarding Rate 431.52 Mpps
Max. Power Consumption 100W
Power Method (1) Universal AC input : 100-240VAC, 2A Max., 50/60 Hz
(1) USP-RPS DC input : 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Management Interface Ethernet In-Band
Networking Interfaces (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
SFP28 Interfaces (2) 1/10/25 Gbps SFP28
Services SMB Layer 3 Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
LCM Display 1.3″ Touchscreen
Bootup Animation : Bootup in Progress
Firmware Upgrade Icon : Firmware Upgrading
Steady White : Factory Defaults, Awaiting Adoption
Steady Blue : Device is Adopted
Button Factory Reset
LEDs White : Link or Activity
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 – 95% Noncondensing
Certifications CE, FCC, IC
