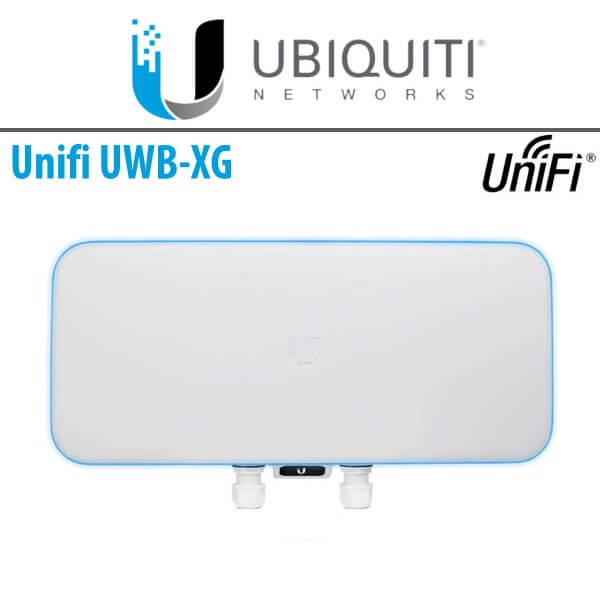

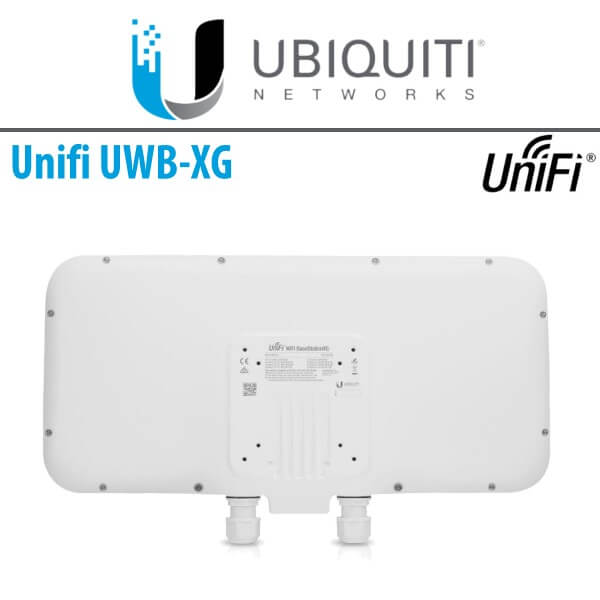

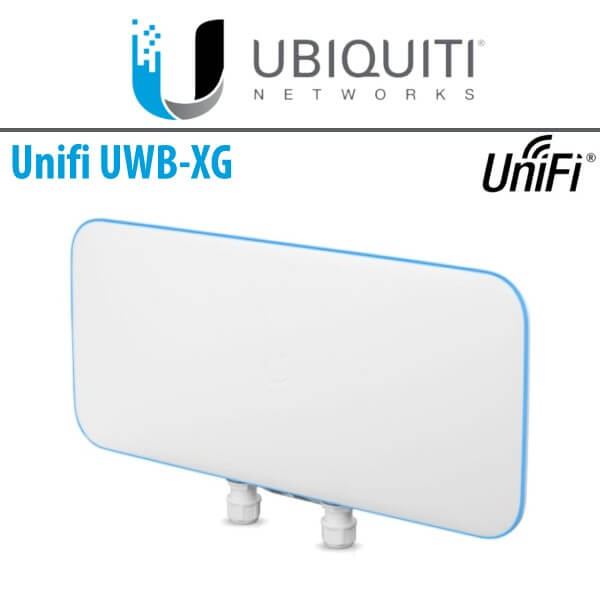

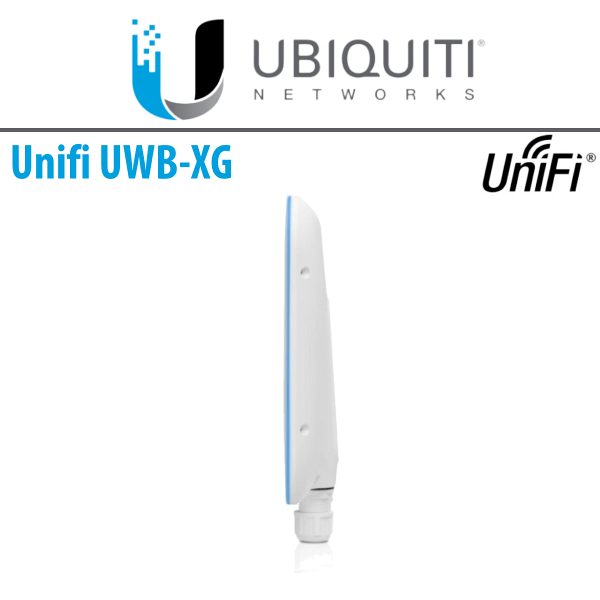

Ubiquiti UWB XG WiFi BaseStation Dubai

The Ubiquiti UWB XG Dubai features maximum wireless performance combined with wireless security and is ideal for ultra high-density environments such as event venues, festivals, and medium or large-sized stadiums. The UniFi BaseStationXG features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology combined with dedicated security and Bluetooth radios.

The built-in, dedicated security and monitoring radio of the UWB XG provides visibility into site performance, channel planning, and local interferers. The Ubiquiti UWB XG Dubai is easily accessible through any standard web browser and the UniFi mobile app (iOS or Android). The UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Key Features :

• Elegant Industrial design
  The sleek Ubiquiti UWB XG Dubai is a versatile access point with multiple mounting options to suit your application.
• RF Energy Steering
  True cellular Wi-Fi using multiple APs – its selectable directional beamforming antenna allows for cell size optimization to maximize coverage.
• Spectral security
  The Ubiquiti UWB XG Dubai delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the Wi-Fi BaseStation XG Dubai constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance.

Technical Specifications

Overview

• Dimensions (Without Mount) : 471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713″)
• Weight (Without Mount) : 3.2 kg (7.055 lb)
• Networking Interface :
  – (1) 10/100/1000 RJ45 Ethernet Port
  – (1) 1/10 Gbps ICM Ethernet Port
• Button : Reset
• LED : RGB, Software-Controllable
• Power Method : 802.3bt PoE
• Power Supply : 50VDC, 1.2A Gigabit PoE
• Power Save : Supported
• Beamforming : Supported
• Max. Power Consumption : 31W
• Supported Voltage Range : 44-57VDC
• Max. TX Power : 25 dBm
• MIMO : (3) 4 x 4
• Operating Frequency : 5 GHz
• Antenna : Integrated Dual-Mode Antenna Array
• Antenna Gain :
  – Small Cell : 15 dBi
  – Large Cell : 10 dBi
• Antenna Beamwidth :
  – Small Cell : 50°
  – Large Cell : 90°
• WiFi Standards : 802.11 a/n/r/k/v/ac/ac-wave2
• Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

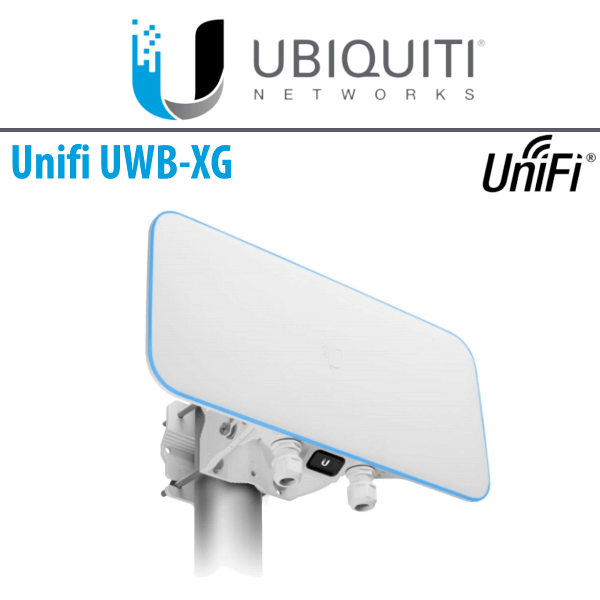

• Mounting : VESA-Compatible Mount, Pole/Wall (Brackets Included)
• Operating Temperature : -40 to 70° C (-40 to 158° F)
• Operating Humidity : 5 to 95% Noncondensing
• Dust and Water Resistance : IP67
• Certifications : CE, FCC, IC

Advanced Traffic Management

• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 1500

Supported Data Rates (Mbps)

• Standard : 802.11ac
  Data Rates: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80), 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
• Standard : 802.11n
  Data Rates : 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
• Standard : 802.11a
  Data Rates : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
