Ubiquiti USW-Pro48PoE Dubai

Rating

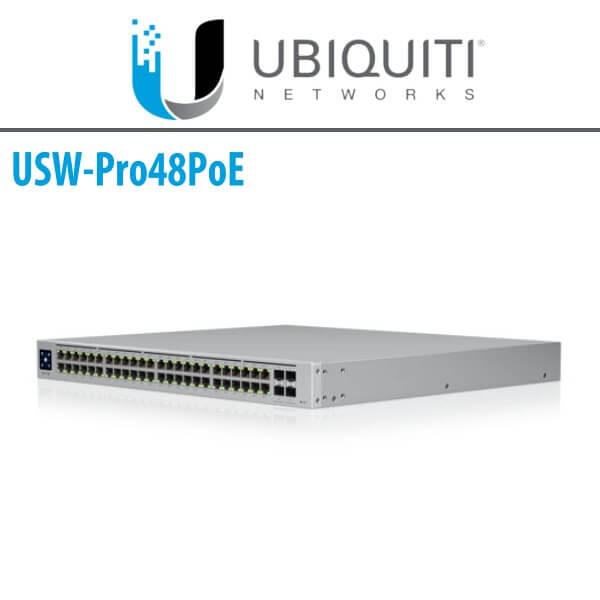

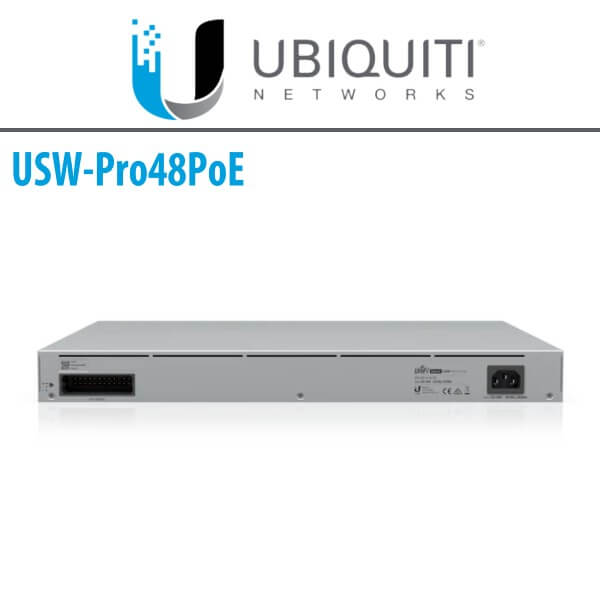

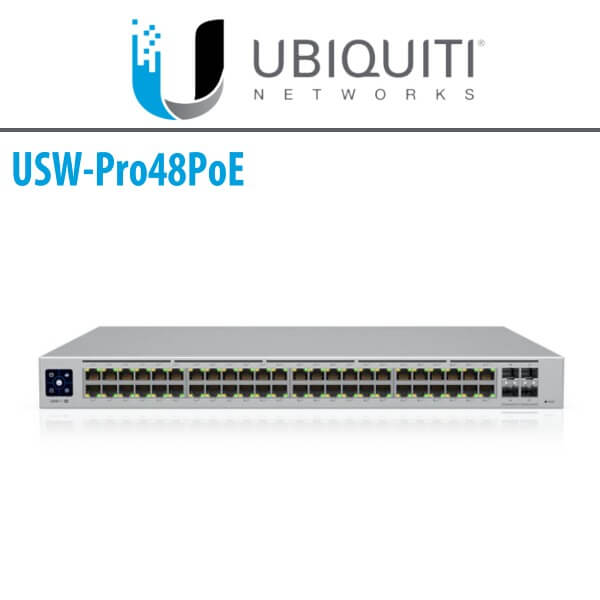

Ubiquiti USW-Pro48PoE Dubai

The Ubiquiti USW-Pro48PoE Dubai is the ideal access layer switch for any UniFi system. It combines up to 600W of PoE power with SmartPower RPS (USP RPS) power redundancy.

Description

Ubiquiti USW-Pro48PoE Network Switch Dubai

The Ubiquiti USW-Pro48PoE Dubai is a fully managed switch with (40) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (4) 10G SFP+ ports. The USW Pro 48 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The Ubiquiti USW-Pro48PoE Dubai is the ideal access layer switch for any UniFi system. It combines up to 600W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

  • (1) 1.3″ LCM color touchscreen with AR switch management
  • (40) GbE, 802.3at PoE+ RJ45 ports
  • (8) GbE, 802.3bt PoE++ RJ45 ports
  • (4) 10G SFP+ ports
  • (1) USP RPS DC input
  • 600W total PoE supply
  • Near-silent cooling
  • Layer 3 switching features

Technical Specs

Mechanical
Dimensions 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″)
Weight
With  Brackets
6.25 kg (13.78 lb)
6.34 kg (13.98 lb)
Interfaces
Networking Management
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non‑Blocking Throughput 88 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.944 Mpps
Power Method
Universal Input
USP RPS DC Input
100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply AC/DC, Internal, 660W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 60W
LEDs
System
RJ45 Data Ports
SFP+ Data Ports
Status
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air : ± 16 kV, Contact : ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
PoE
Total Available PoE 600W
PoE Interfaces
Ports 1-40
Ports 41-48
POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8)
Max. PoE Wattage per Port by PSE
802.3at
802.3bt
32W
64W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
