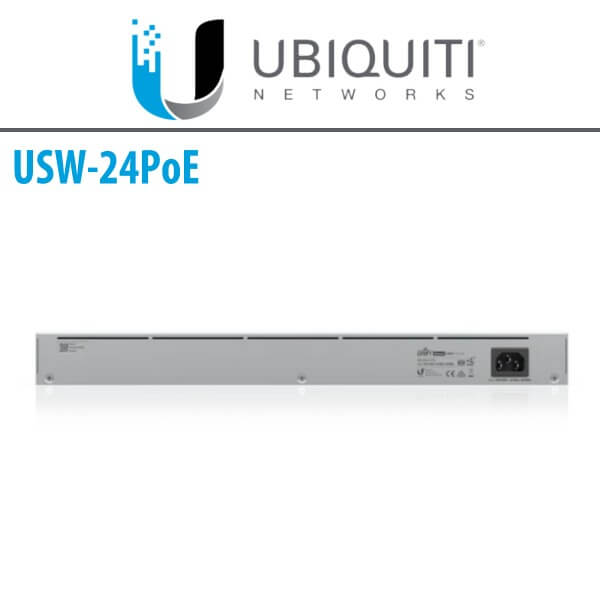

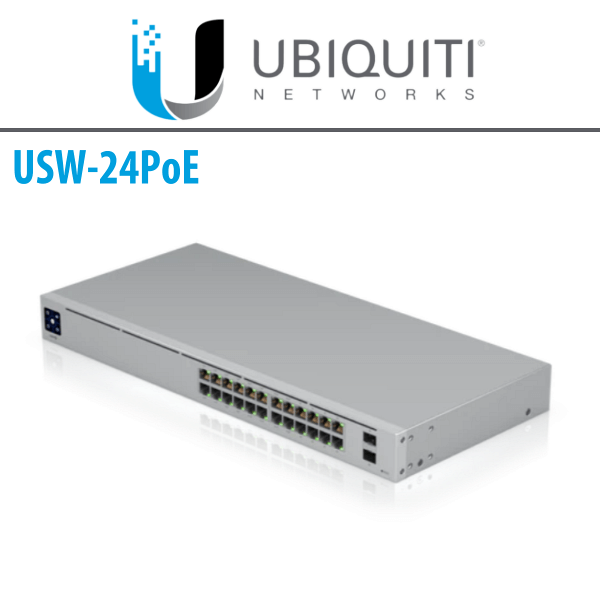

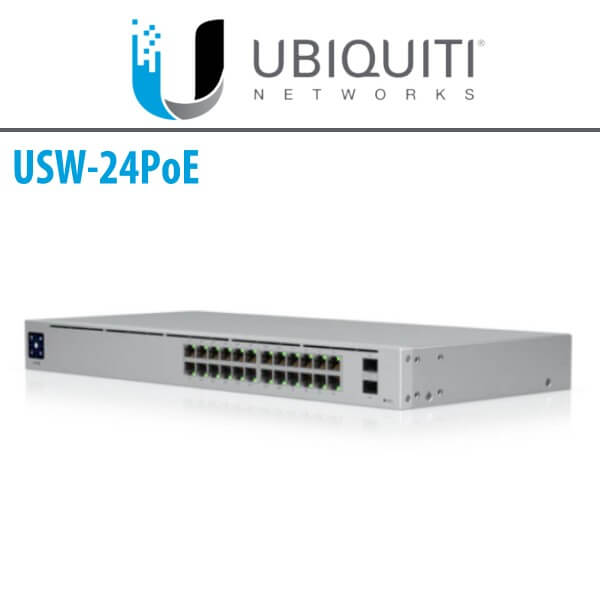

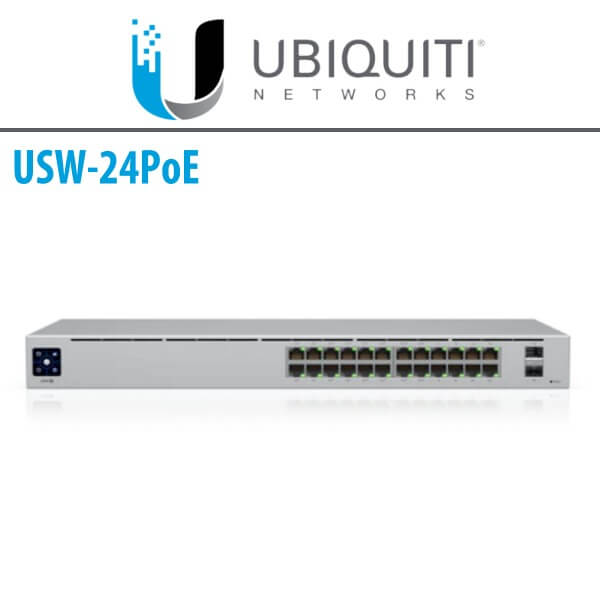

Ubiquiti USW-24PoE Dubai

Rating

Ubiquiti USW-24PoE Dubai

The Ubiquiti USW-24PoE Dubai also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Description

Ubiquiti USW-24PoE Network Switch Dubai

The Ubiquiti USW-24PoE Dubai is a fully managed switch with (24) GbE RJ45 ports, including (16) GbE, 802.3at PoE+ ports, and (2) 1G SFP ports. The versatile USW 24 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The Ubiquiti USW-24PoE Dubai also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Additionally, with its 7.9″ depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This Ubiquiti USW-24PoE Dubai can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

  • (1) 1.3″ LCM color touchscreen with AR switch management
  • (16) GbE, 802.3at PoE+ RJ45 ports
  • (8) GbE RJ45 ports
  • (2) 1G SFP ports
  • 95W total PoE supply
  • Fanless, silent cooling

Technical Details

Mechanical
Dimensions 442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72″)
Weight
With Brackets
Without Brackets
3.09 kg (6.81 lb)
3.00 kg (6.61 lb)
Interfaces
Networking Management
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet PortsEthernet In-Band
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 120W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 25W
LEDs
RJ45 Data Ports
SFP Data Ports
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
PoE
Total Available PoE 95W
PoE Interfaces Ports 1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at
32W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
