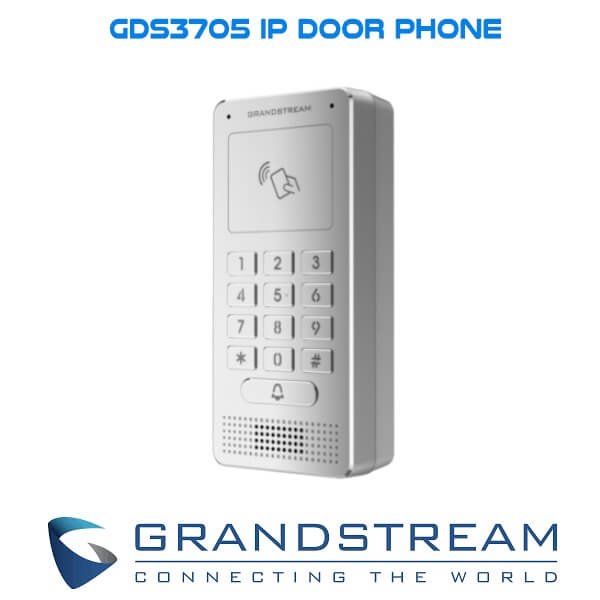

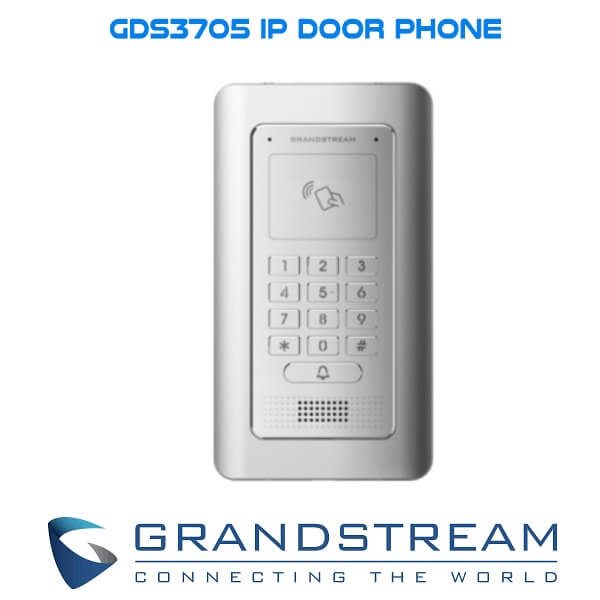

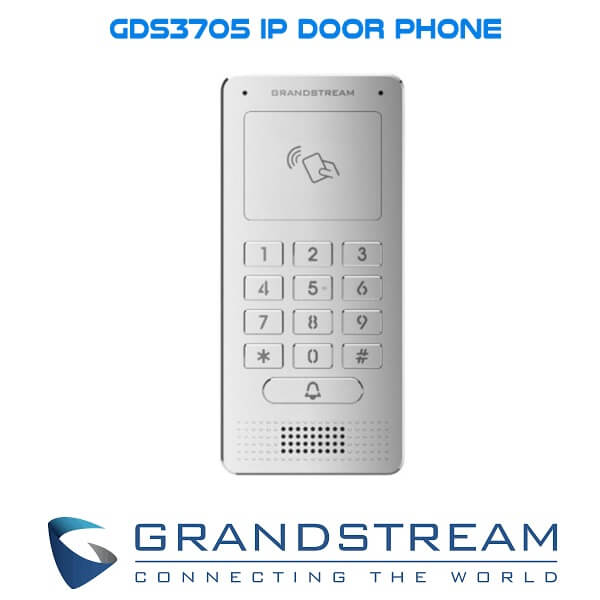

Grandstream GDS3705 IP Door Phone Dubai
If you are looking for a solid access control solution for installations with only audio and security monitoring that can be implemented in environments of any size then you should consider the modern Grandstream GDS3705 IP Door Phone Dubai. The Grandstream GDS3705 IP Door Phone Dubai comes equipped with a zinc alloy metal casing, making it weatherproof and vandal resistant and offers alarm-in and alarm-out support for integration with existing security devices. The Grandstream GDS3705 Dubai integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, as well as the device itself to be fully managed by this software. Thanks to its integration with other Grandstream endpoints like the GXP IP phones, GXV video phones, portable Wi-Fi and DECT IP phones and the Grandstream Wave mobile app, the Grandstream GDS3705 Dubai offers a complete end-to-end solution for access control, audio intercom, and security needs.
Grandstream GDS3705 Features
The GDS3705 is rated IP66 for protection against the elements and rated IK10 for protection from vandalism. The IP Door Phone comes equipped with a zinc alloy metal casing, making it weatherproof and vandal resistant and offers alarm-in and alarm-out support for integration with existing security devices.
The Grandstream GDS3705 IP Door Phone Dubai is equipped with a built-in RFID chip reader and keypad which allows for a secured keyless or key entry.
Integrated PoE Connectivity
The Grandstream GDS3705 IP Door Phone Dubai is equipped with auto-sensing 10/100Mbps ports which are integrated with Power over Ethernet for a quick power connection.
The Grandstream GDS3705 IP Door Phone Dubai is equipped with a built-in 2W HD speaker which uses a number of voice codecs including 711μ/a, and G.722 to deliver crystal clear sounds which are devoid of extraneous noises.
The Grandstream GDS3705 IP Door Phone Dubai is based on SIP, and is therefore compatible with all IP phones to facilitate an enhanced communication experience.
For large deployment, multiple Grandstream GDS3705 units might be required, peered connection will not work in such a case due to multiple connections. Such scenarios require an IPPBX or a SIP Proxy to accomplish the tasks. When connecting the Grandstream GDS3705 Dubai to a door strike it is recommended to set an EMF protection diode in reverse polarity for secure use, below examples of deployment for the protection diode. Make sure to connect the GND of the Wiegand device and the Grandstream GDS3705 Wiegand port. For Wiegand input mode, LED and Beep pins require that the Wiegand device support those interfaces. These two pins will not affect the Wiegand bus when not connected.
If the power source is 12VDC, the Wiegand device can share the same power source of Grandstream GDS3705 Dubai. However, users need to check the max power consumption and the max capability of the power source. If Wiegand device is using 5VDC, Grandstream GDS3705 Wiegand port can provide 5VDC with max 500mA to power up Wiegand device. When the Wiegand output of the Grandstream GDS3705 Dubai is connected, it acts as the signal receiver of the 3rd party Wiegand device, connecting to the door controller. The major wiring is GND, D0, and D1.
Grandstream GDS3705 IP Door Phone Specifications
|PoE/Supply Voltage||PoE IEEE 802.3af Class3 | 12VDC /1A (AC power adapter not included)|
|SIP/VoIP Support||Yes, broad interoperability|
|Voice Codecs||G.711μ/a, G.722|
|Audio Output||HD loudspeaker 2W, up to 3m|
|Audio Input||Integrated dual microphones up to 1.5m|
|Built-in Key Pad||12+1 Metal keys with Blue LED backlight|
|2 Optocoupler Input, VIN <15V, for Door Switch/Magnetic and Alarm in|
|Output||2 Relay, 125VAC/0.5A, 30VDC/2A, for Electric Lock and Alarm out|
|Wiegand||IN & OUT Wiegand 26|
|RS485||RS485 (300m or 1000ft)|
|Waterproof Certification||IP66 (EN60529)|
|Vandal Resistance||IK09 (IEC62262)|
|Temperature Range||30°C to 60°C|
|Dimension (HxWxD)and Weight||In wall: 217mm x 120mm x 11,6mm; On Wall: 173mm x 80mm x 36mm 0,635Kg|
