Grandstream GXV3470 Dubai

Grandstream GXV3470 Dubai is equipped with a 7-inch 1280×800 capacitive touch screen that not only offers a quick access to details, but also offers an enhanced visual clarity to its users even when used in  poor light conditions.

Description

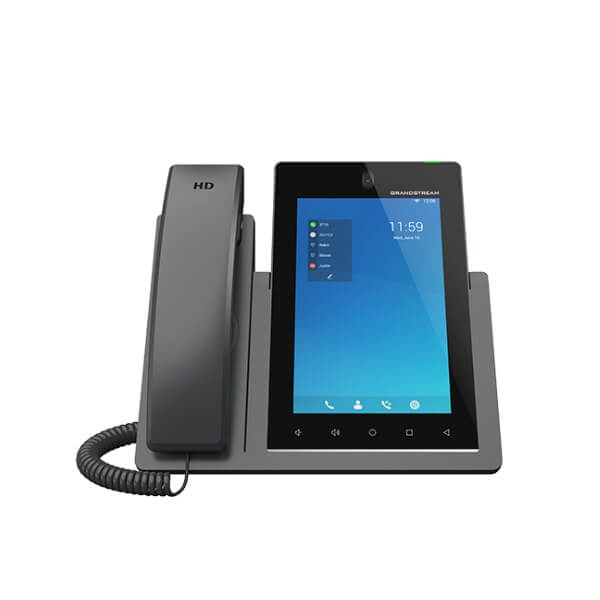

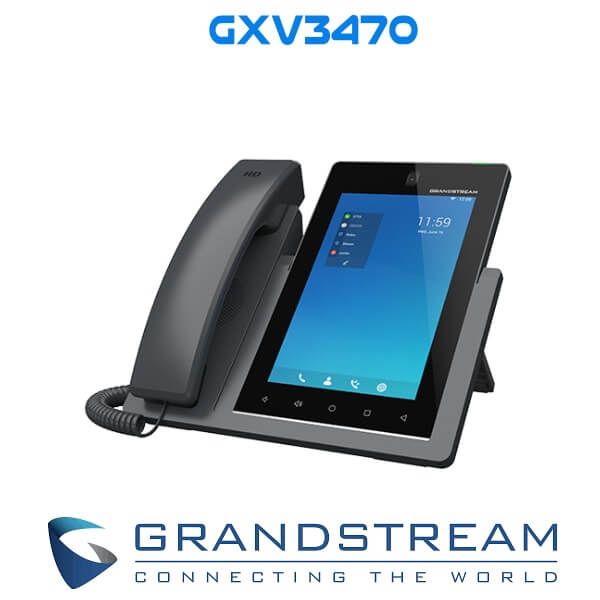

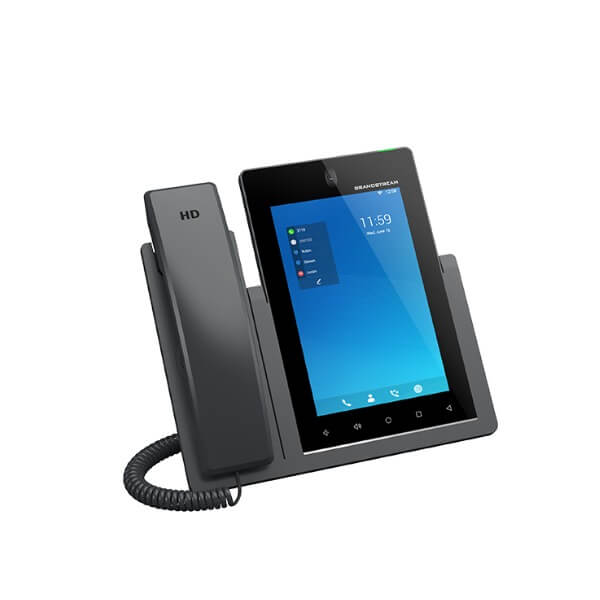

Grandstream GXV3470 High-End Smart Video Phone Dubai

Made for the modern enterprise user, the Grandstream GXV3470 Dubai is a powerful desktop video phone that has been designed to offer an all-in-one communications solution. It is equipped with a 7-inch 1280×800 capacitive touch screen that not only offers a quick access to details, but also offers an enhanced visual clarity to its users even when used in  poor light conditions. It is fitted with advanced features that enhance the communication experience of its users, while boosting productivity in offices.

The Grandstream GXV3470 Dubai adds dual Gigabit ports with PoE/PoE+, integrated Wi-Fi 6 and Bluetooth 5.0 support. The IP Phone has an advanced megapixel tilt-able camera, dual microphones and support for HD video conferencing. It also runs Android 11 and offers instant access to hundreds of thousands of Android apps. By combining a state-of-the-art IP video phone, an advanced video collaboration solution, and the functionality of an Android tablet, the Grandstream GXV3470 Dubai offers businesses throughout the world a powerful desktop communication and productivity solution.

Features

  • 16 lines with up to 16 SIP accounts
  • Built-in 2 mega-pixel CMOS camera for video calling with privacy shutter
  • Runs on the Android 11 operating system
  • Built-in Bluetooth 5.0 for syncing with mobile devices and connecting Bluetooth headsets
  • Dual-switched auto-sensing 10/100/1000Mbps network ports
  • Integrated dual-band Wi-Fi 6 (2.4GHz & 5GHz)
  • Built-in PoE/PoE+ for power and network connections
  • Dual-mic HD speakerphone with noise shield 2.0, advanced echo cancellation & excellent double-talk performance
  • Quad-core 2.0GHz ARMCortex-A55 processor with 2GB RAM and 16GB eMMC Flash
  • 7’’ (800×1280) capacitive 5-point touch screen IPS LCD
  • Peripherals include HDMI-out, USB, RJ9 headset with EHS
  • 10-way audio conferencing & 3-way 720p 30fps HD video conferencing capability

Technical Details

  • Protocols/Standards : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®
  • Network Interfaces : Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
  • Graphic Display : 7.0 inch 1280×800 capacitive touch screen (5 points) IPS LCD
  • Camera : Tiltable 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps
  • Bluetooth : Yes, integrated Bluetooth 5.0
  • Wi-Fi : Yes, dual-band dual-stream Wi-Fi 6(2.4GHz & 5GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay
  • Auxiliary Ports : RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm headset port, USB 2.0 port, USB
    3.0 port, HDMI-out
  • Feature Keys : 2 functions touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK
  • Voice Codecs and Capabilities : Wide-band Opus, wide-band G.722, G.711μ/a, G. 729A/B, G.726-32, iLBC, in-band and out-of-band
  • DTMF : (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0
  • Video Codecs and Capabilities : H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, and auto exposure
  • Telephony Features
    Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 10-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual Programmable Key, downloadable contacts (XML, LDAP, up to 1000 items), call record(local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, personalized music ringtones and music on hold, server redundancy & fail-over
  • Sample Applications
    • Local apps : Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock,
      Voicemail, Calculator, Recorder, GS Market, etc.
    • Support third-party Android apps
    • API/SDK available for advanced custom application development
    • Applications Deployment Support Android 11 compliant applications to be developed, downloaded and run on the device with provisioning control
  • HD Audio : Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband
    audio
  • Base Stand : Yes, built-in stand with multiple adjustable angles.
    QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
  • Security
    User and administrator level passwords, random default admin password, MD5 and MD5-sess
    based authentication, 256bit-AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media
    access control, anti-hacking secure boot
  • Multi-language : English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more
  • Upgrade/Provisioning : Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file, GDMS
  • Power & Green Energy Efficiency
  • Universal power adapter included :
    • Input : 100-240VAC 50-60Hz;
    • Output 12VDC 1.5A (18W)
    • Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
      *Must use PSU or PoE+ to power up the phone when using USB devices
  • Temperature and Humidity
    • Operation : 0°C to 40°C,
    • Storage : -10°C to 60°C,
    • Humidity : 10% to 90% Non-condensing
  • Package Content GXV3470 phone, handset with cord, base stand, universal power supply, network cable, screen
    cleaning cloth, quick installation guide
  • Compliance
    FCC : CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15 Subpart E; Part 68 (HAC)
    IC : RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
    CE : EN 55032 Class B;EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
    ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
    UKCA : BS EN 55032 Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
    ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
    RCM : AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
