Description

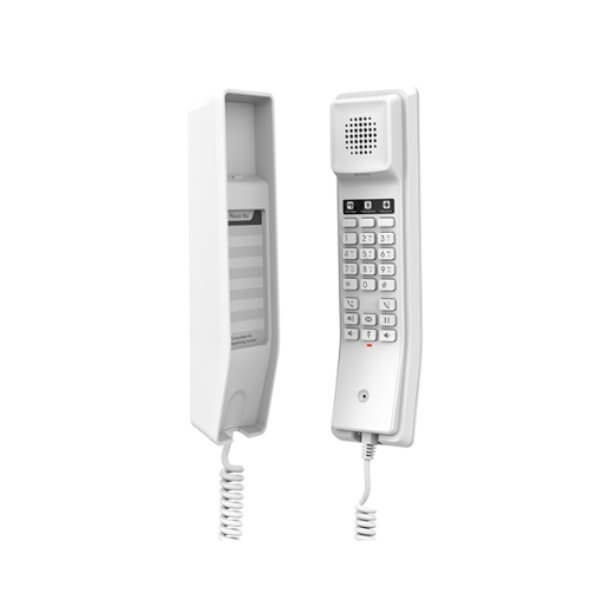

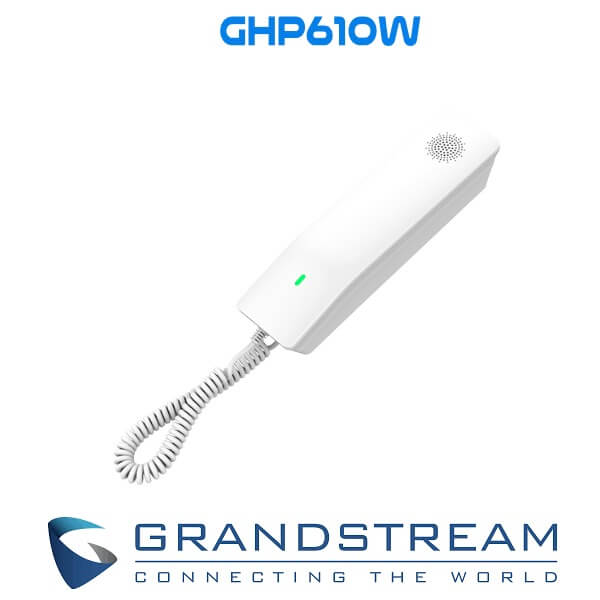

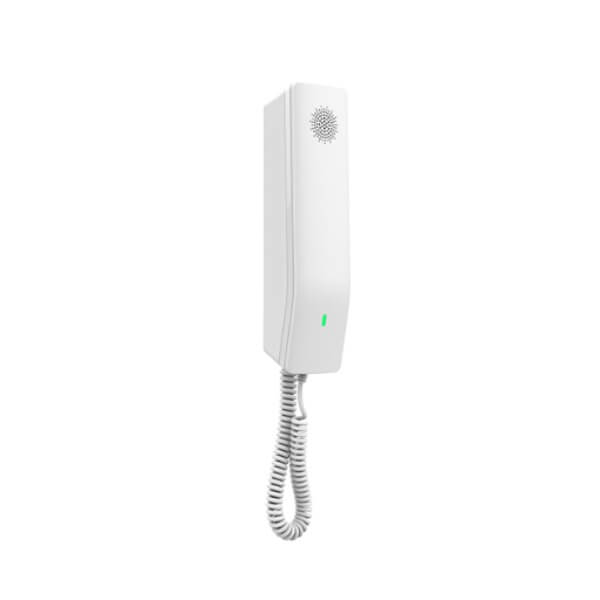

Grandstream GHP610W Compact Hotel Phone Dubai

The Grandstream GHP610W Dubai is a compactly designed IP Phone that delivers HD quality audio during voice communications using integrated HD speaker. It comes with many advanced features including 2 SIP accounts/lines, 3 programmable keys, as well as 10 speed dial keys. The GHP610W provides 3-way voice conferencing, supports full-band OPUS voice codec and features an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. Grandstream GHP610W Dubai is a perfect solution which can be applied in a variety of scenarios including residential areas, hospitals, dormitories, and many more.

The Grandstream GHP610W Dubai is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Features

• 2 SIP Accounts, 2 Lines
• GDMS online device management and provisioning
• 3-way audio conferencing for easy conference calls
• Integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac (GHP610W & GHP611W only)
• Includes one 100Mbps network port with PoE (GHP610 & GHP611 only)
• Speed dial label and swappable faceplate to allow for easy customization
• Hearing Aid Compatibility (HAC)
• Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage

Technical Specs

• Protocols/Standards :
  • SIP : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
  • Network : IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP,
    NTP, STUN, LLDP, TR-069, 802.1x
• Network Interfaces : One auto-negotiation 10/100 Mbps ethernet port integrated PoE Class 2 (GHP610/GHP611)
  Wi-Fi GHP610W/GHP611W integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac
• Feature Keys : 23 keys, including 3 programmable keys, 12 Standard Phone Digits keys (0-9 : speed dial keys
  configuration on web page, *, #), 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold), 3
  Volume Control keys, Up/Down/Mute(with red color LED)
• HD Audio :   One HD handset support for wide band audio
  Voice Conferencing 2 SIP accounts and lines, up to 3-way conference
• Voice Codecs and Capabilities : Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, and full band
  OPUS. In- band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC,
  AJB.
• Telephony Features : Dial, Answer, Transfer, Conference, Redial, Flash ,Hands-free, Voice Mail (with the server) Hold /Unhold, Mute /Unmute, flexible dial plan, Speed dial server redundancy & fail-over Call out.
• Advanced Features
  • Support for multicast paging and E911 service
  • Support for advanced jitter-resilience algorithm
  • Supports GDS Door Opening
  • Wall Installation 1 Wall Mountable Base
  • QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security : Secure boot, random default password, unique security certificate per device, administrator
  level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access
  control
• Multi-language English and Chinese : Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency
  • Universal power adapter (GHP610W/GHP611W) :
  • Input : 100~240Vac 50~60Hz
  • Output : 12V/0.5A(6W)
• Temperature and Humidity
  • Operation : 0°C to 40°C
  • Storage : -10°C to 60°C
  • Humidity : 10% to 90% (Non-condensing)
  • Package Content GHP61X phone, handset with cord, base, universal power supply (GHP610W & GHP611W),
• Quick Installation Guide : Color White (GHP610 & GHP610W), Black (GHP611 & GHP611W)
• Physical
  • 211mm(L)*53mm(W)*44mm(H) (with handset)
  • Unit weight : 300g (GHP610/GHP611), 350g (GHP610W/GHP611W US),
    360g (GHP610W/GHP611W World)
  • Package weight : 445g (GHP610/GHP611), 515g (GHP610W/GHP611W US),
    525g (GHP610W/GHP611W World)
• GHP610 & GHP611 Compliance
  • FCC : Part 15 Subpart B, Class B; Part 68. 316/317.
  • CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
  • UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1.
  • RCM : AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004, AS/CA S040.
  • IC : ICES-003; CS-03 Part V.
• GHP610W & GHP611W Compliance
  • FCC : Part 15 Subpart B, Class B; Part 15 Subpart C,15.247; Part 15 Subpart E,15.407; Part 68.
    316/317.
  • CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 301489-1\-
    17; ETSI EN 300 328; ETSI EN 301 893; EN 50360; EN 50566; EN 50663; EN 62209-1; EN 62209-2;
    EN 62479; EN IEC 62311.
  • UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1;
    ETSI EN 301489-1\-17; ETSI EN 300 328; ETSI EN 301 893; BS EN 50360; BS EN 50566; BS EN
    50663; BS EN 62209-1; BS EN 62209-2; BS EN 62479; BS EN IEC 62311.
  • RCM : AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004; AS/CA S040.
  • IC : RSS-247; RSS-Gen; RSS-102; ICES-003; CS-03 Part V.
